REPLACING THE COLUMN MOTOR

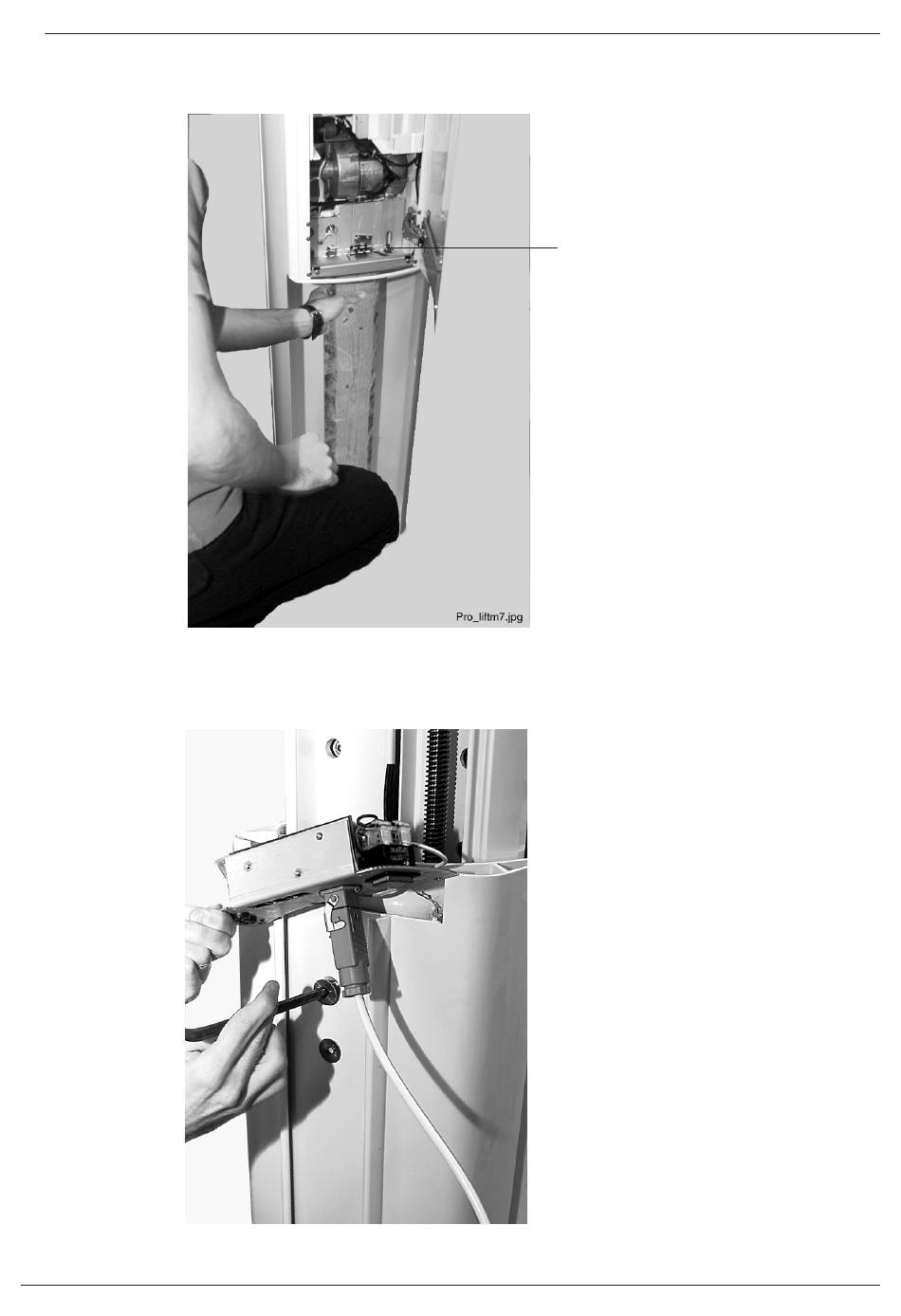

Support the telescopic column properly to eliminate the downward movement of the column.
Position the support so that it leans against the column profile.
Figure 42
Unscrew the lift nut assembly attachment screws.
Figure 43
Technical Manual
Chapter G - COLUMN
NOTE!
The support must lean
against column profile.
Planmeca ProMax G-21
