Chapter B - INFORMATION DISPLAYS

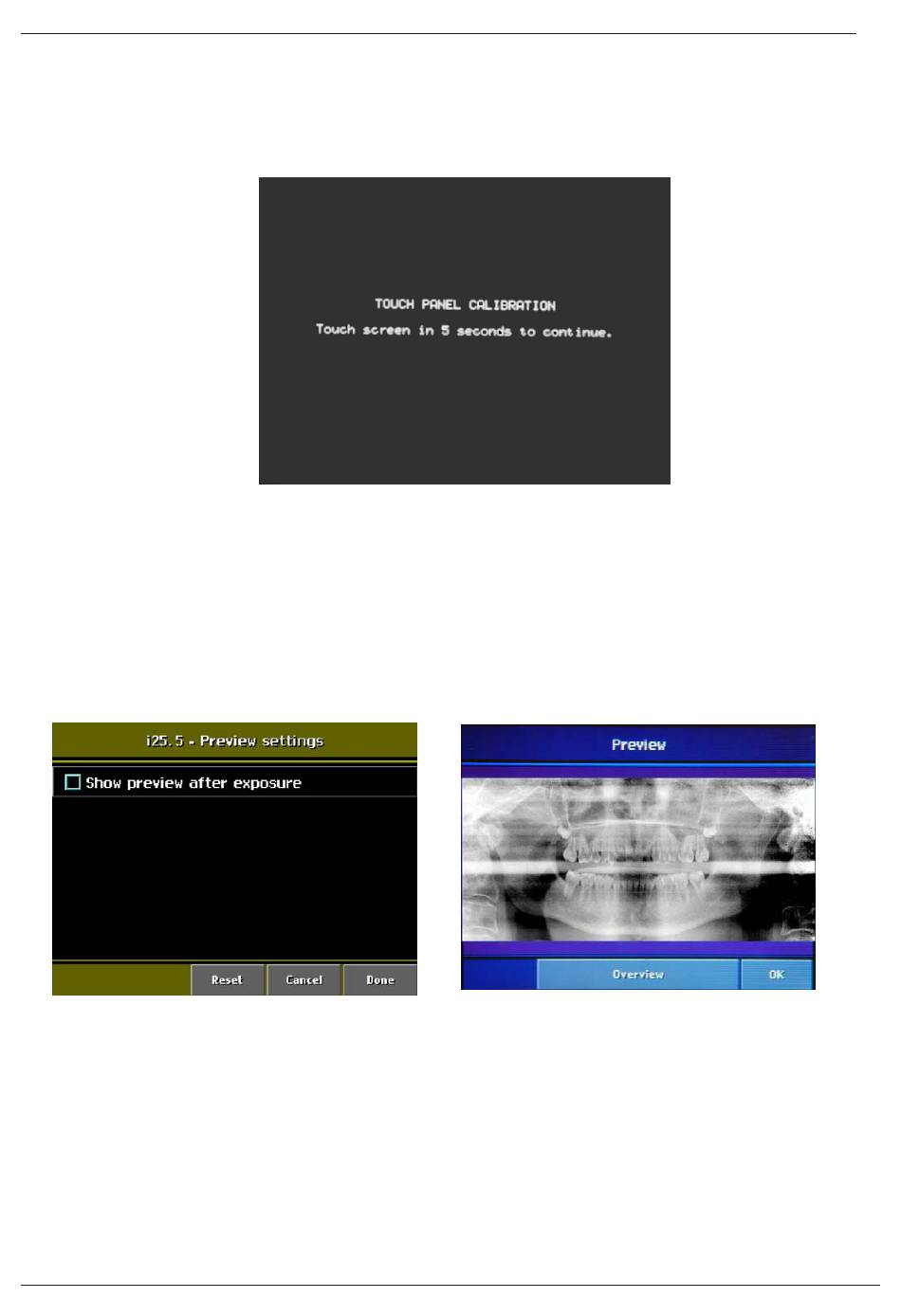

2.4.2 Touch panel calibration
The control touch panel is calibrated when you select the Touch panel calibration (i254) on
the Visual adjustments display (i250). The display shown below will appear.
Figure 11
2.4.3 Preview settings
NOTE This option is shown on the display only if the X-ray unit has an Ethernet network card.
The Show preview after exposure function allows the user to see a preview of the X-ray
image before accepting and storing the image.
Figure 12
Touching the preview image will zoom the image. Return by touching Overview. Accept by
touching OK.
