Chapter E - C-ARM AND IMAGING ARM
From the list on the i640 display that appears select Position sensor calibration (i64.1).
The display shown below appears. Drive the C-arm to the calibration position by touching the
Check field. In case all the three arm angle sensors are correctly calibrated, three green
arrows are shown on the display. A red arrow means that this angle sensor is not correctly
calibrated.

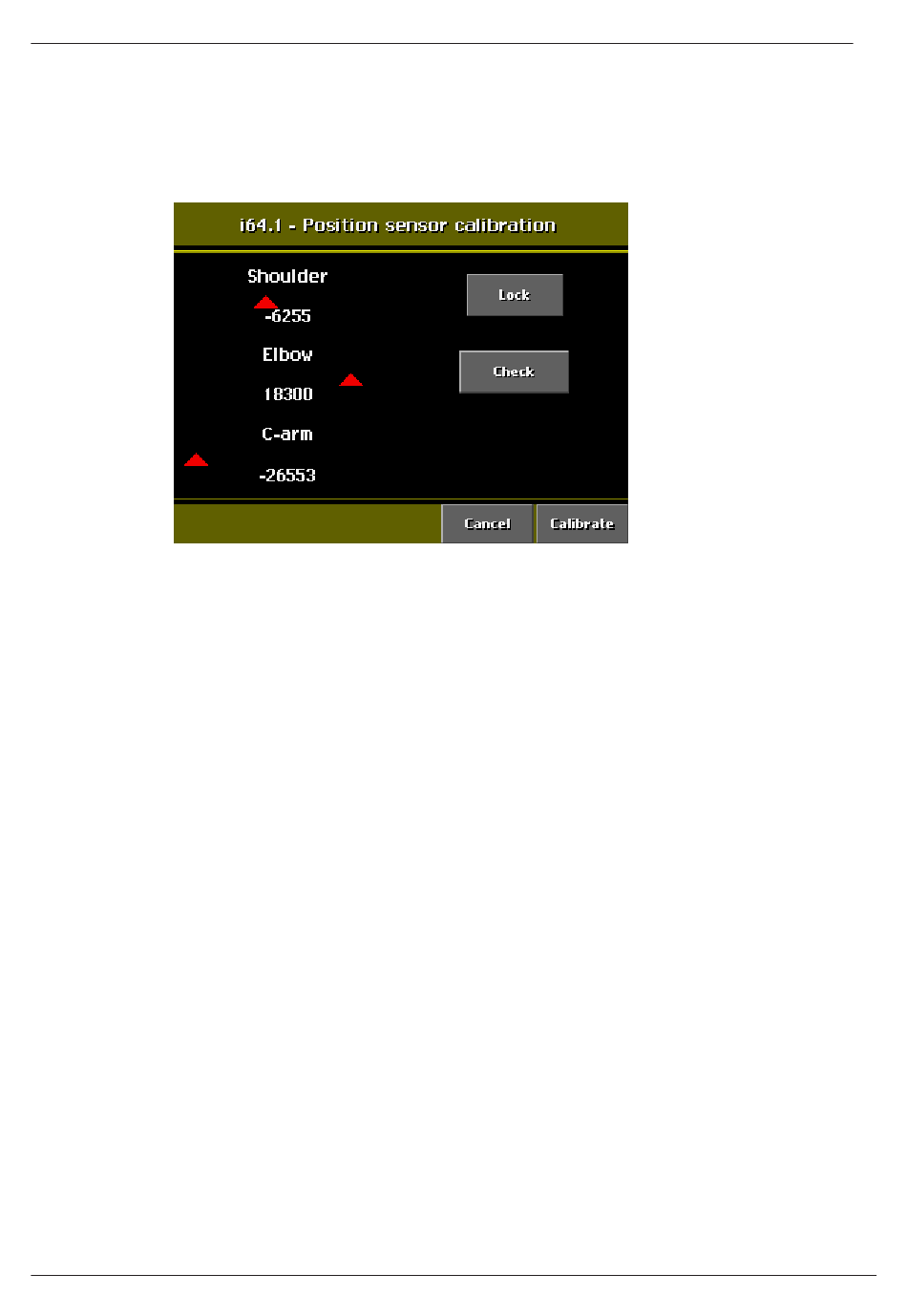

Figure 43
