Planmeca ProMax Technical Manual page 162

Chapter E - C-ARM AND IMAGING ARM

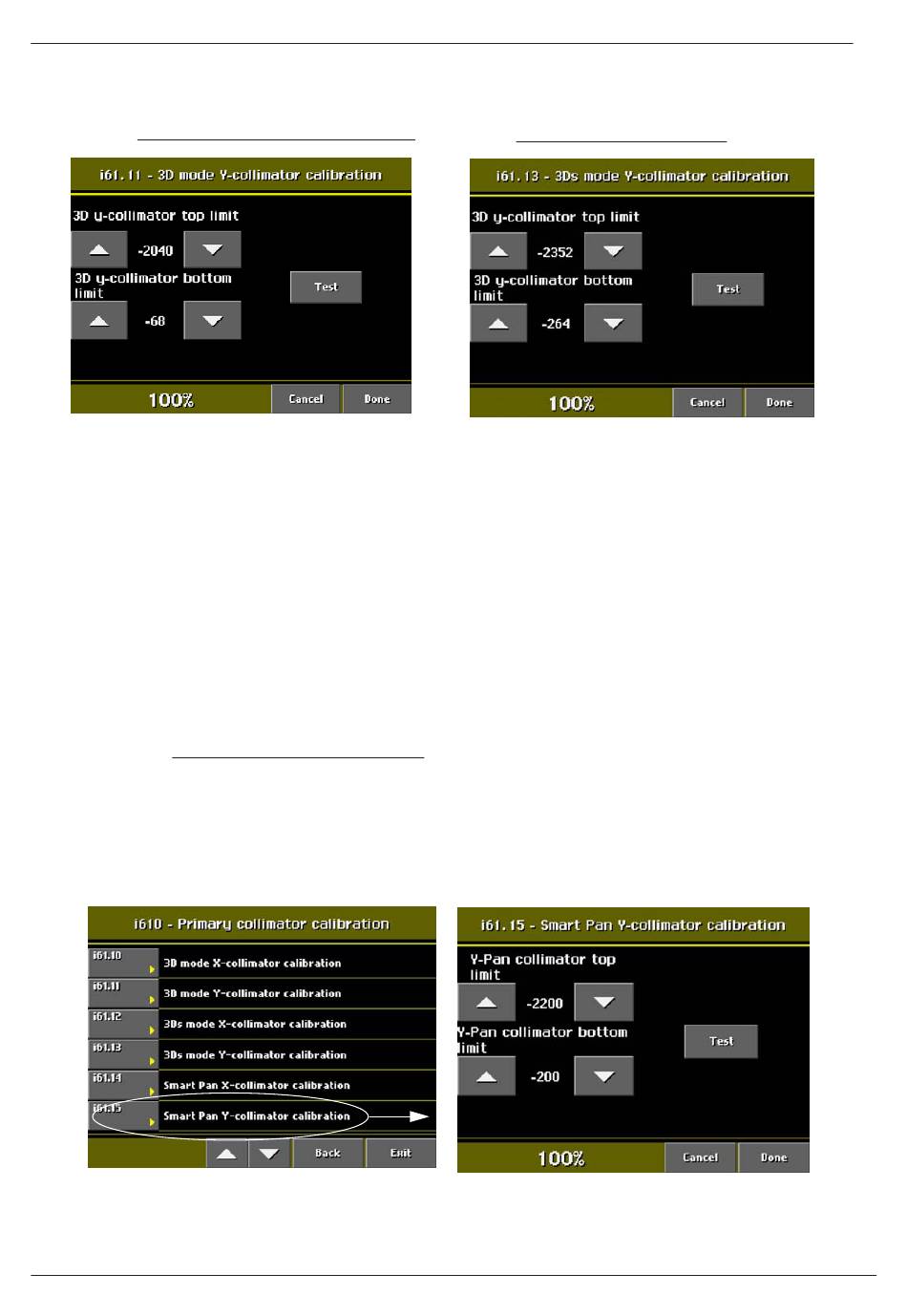

The X-ray beam vertical position is adjusted on the Y-collimator calibration (i61.11 or i61.13)
display.
X-ray units with 3D sensor (V1 or V2):
Figure 81
Adjust the upper limit value of the X-ray beam with the y-collimator top limit arrow fields.
Drive the collimator to the selected position by pressing the Test field. Protect yourself from
radiation and press the exposure button to check the X-ray beam upper edge position. If
necessary, repeat the procedure.
Adjust the lower limit value of the X-ray beam with the y-collimator bottom limit arrow
fields. Drive the collimator to the selected position by pressing the Test field. Protect yourself
from radiation and press the exposure button to check the X-ray beam lower edge position. If
necessary, repeat the procedure.
Accept the new position and exit the calibration mode by touching the Done field. The values
are not stored if you exit the mode with Cancel field.
X-ray units with SmartPan license:
If the 3D V2 / 3D s sensor will be used for taking panoramic images (3D + SmartPan,
SmartTMJ and SmartSinus) you need to calibrate SmartPan as well.
First select "SmartPan Y-collimator calibration" (i61.15) on the "Primary collimator calibration"
(i610) display and proceed as described above for Y-collimator calibration.
SmartPan Y-collimator calibration:
Figure 82
E-64 Planmeca ProMax
PROMAX 3D: ADJUSTMENTS & CALIBRATIONS
X-ray units with 3D s sensor:
Technical Manual
