PROMAX 3D: REPLACING THE SENSOR HEAD

7 PROMAX 3D: REPLACING THE SENSOR HEAD
Detaching the sensor head from the C-arm
NOTE The indicator light is lit when the sensor is in use. Removing the sensor head when the
indicator light is lit might harm the sensor or cause image data loss.

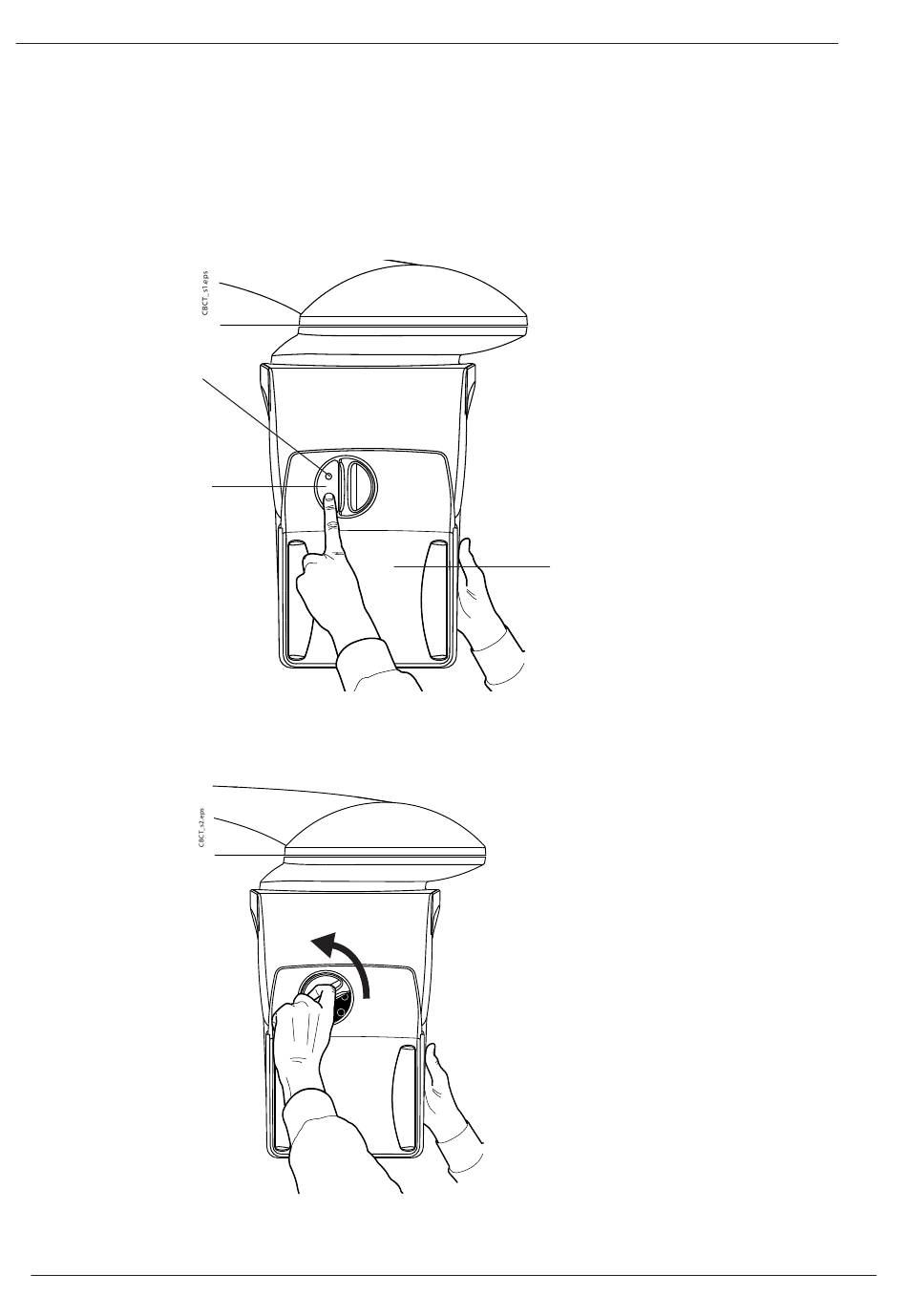

Push in the C-arm electrical connector located on the sensor head quick connector mecha-
nism. This will disconnect the electrical connection between the sensor head and C-arm.
Indicator light
C-arm electrical
connector
Figure 125
The locking knob can now be turned 180 degrees. This will release the sensor head locking
mechanism.
Figure 126
Technical Manual
Chapter E - C-ARM AND IMAGING ARM
3D / 3D s sensor head
Planmeca ProMax E-93
