ADJUSTMENTS AND CALIBRATIONS
Ceph mode beam right position
NOTE This calibration must be performed in 3D X-ray units, but can also be performed in 2D
X-ray units.
Place the sensor alignment tool to the C-arm sensor head connector. Place the beam align-
ment tool to the sensor alignment tool to a horizontal position (see the figure below). Secure
the tool with tape.

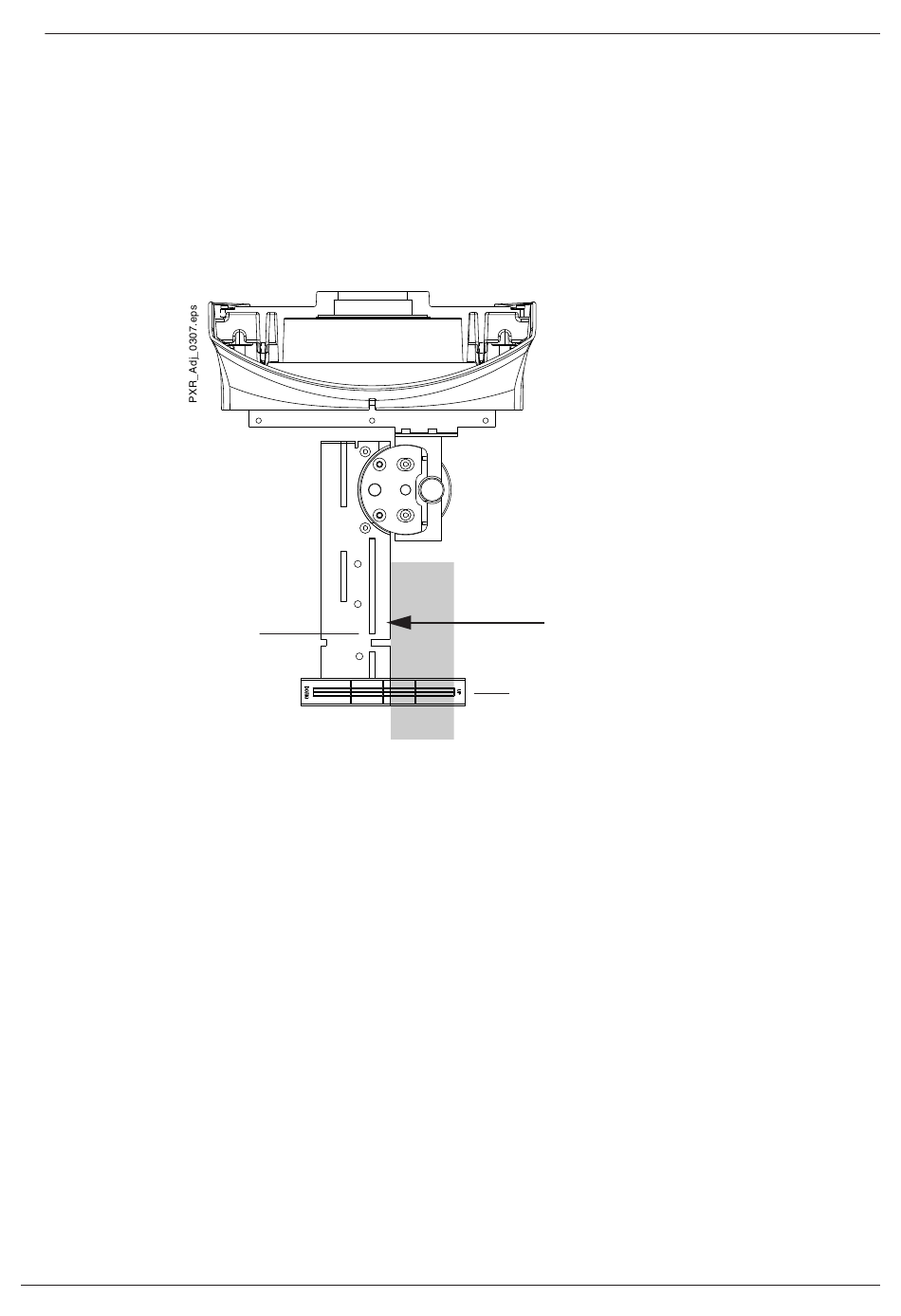

Sensor alignment tool
Figure 34
Technical manual
Chapter H - CEPHALOSTAT
The beam must be on
the edge of the
sensor alignment tool
Beam alignment tool
