2.10 Panoramic mode patient positioning lights

Midsagittal plane positioning light
Checking the midsagittal plane positioning light
Attach the ball phantom to the patient positioning mechanism adapter.
Move the thumb wheel of the layer light slightly to switch the three patient positioning lights
on. The layer light thumb wheel is located on the underside of the patient support table. The
midsagittal light beam should strike the black line on the front of the ball phantom.
Midsagittal plane
light beam

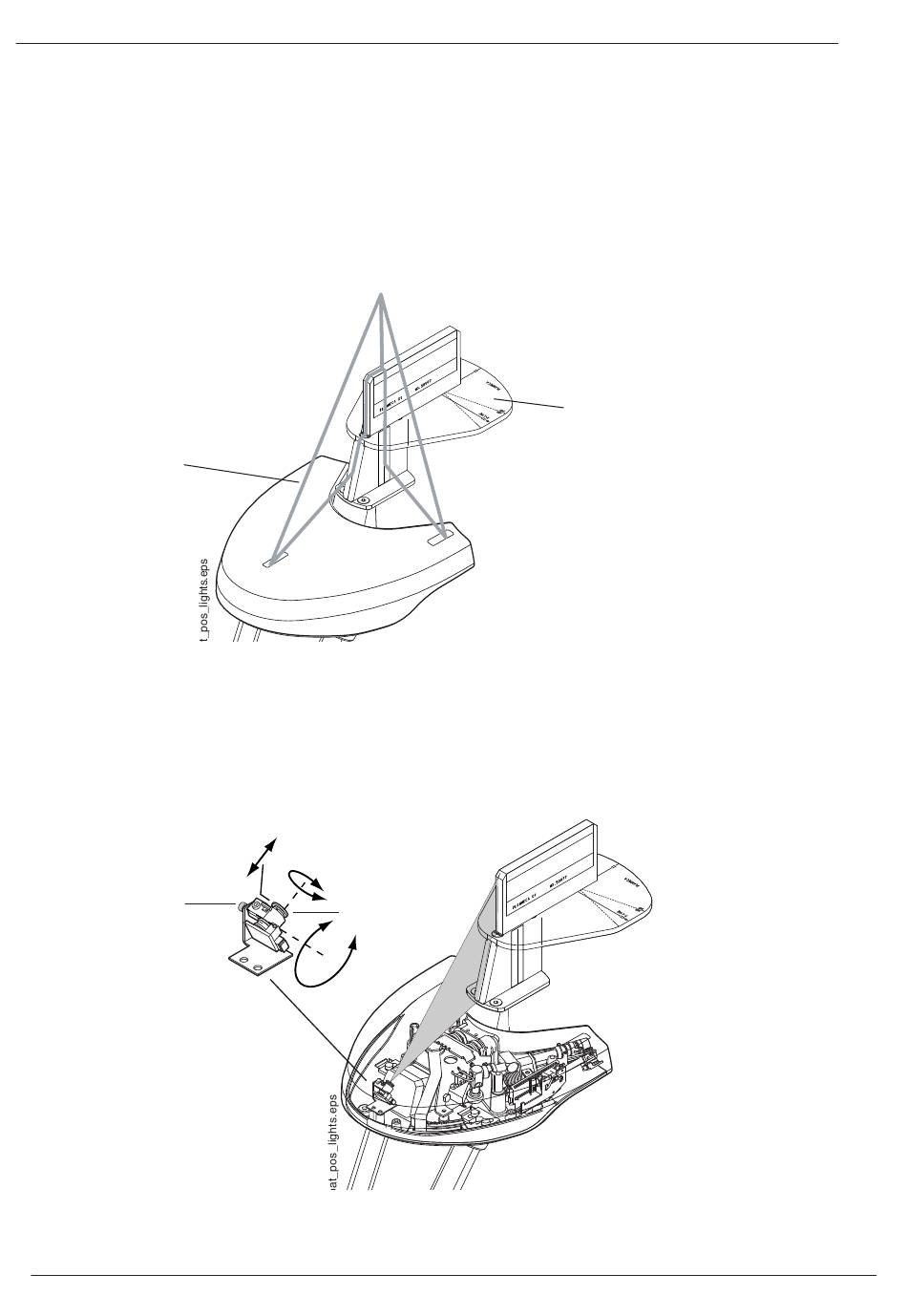

Figure 55
If the light beam does not coincide with the black line or it is not in focus, it must be adjusted
according to the instructions below.
Midsagittal plane positioning light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
"Patient support table cover" on page F-7.
Midsagittal plane positioning light
Light assembly
attachment screw
Figure 56
