Planmeca ProMax Technical Manual page 52

Chapter B - INFORMATION DISPLAYS
4.7.1 Ethernet

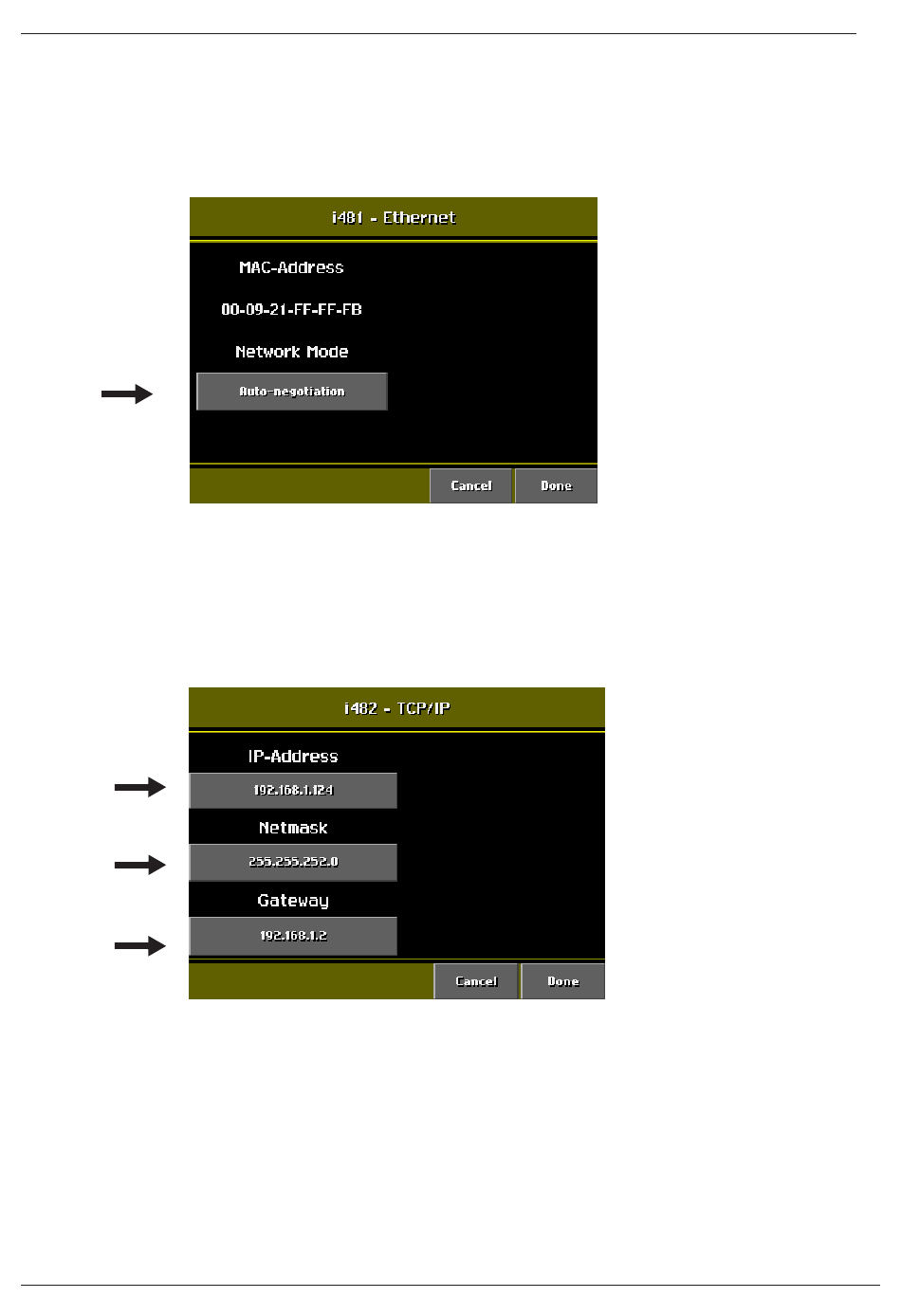

Select Ethernet mode (i481) on the Network Settings display. The display shown below
appears.The Network Mode can be chosen as Auto-negotiation, 10/100 Mb Full-duplex or
10/100 Mb Half-duplex. MAC-Address is equipment related and it cannot be changed.
Figure 27
4.7.2 TCP/IP
Select TCP/IP mode (i482) on the Network settings display. The display shown below
appears. All the default settings can be changed by touching the address field.
Figure 28
IP Address - The Ethernet interface IP Address (default value is 192.168.0.130)
Netmask - Subnet mask (default value is 255.255.252.0)
Gateway - Gateway address (default value is 192.168.1.2)
NOTE In case the ProMax is connected to a 10/100 Base Network, the Gateway and the Pro-
Max IP address have to be static and specified by the local administrator to be used
only for this configuration.
