Planmeca ProMax Technical Manual page 26

Chapter A - GENERAL & TECHNICAL DATA

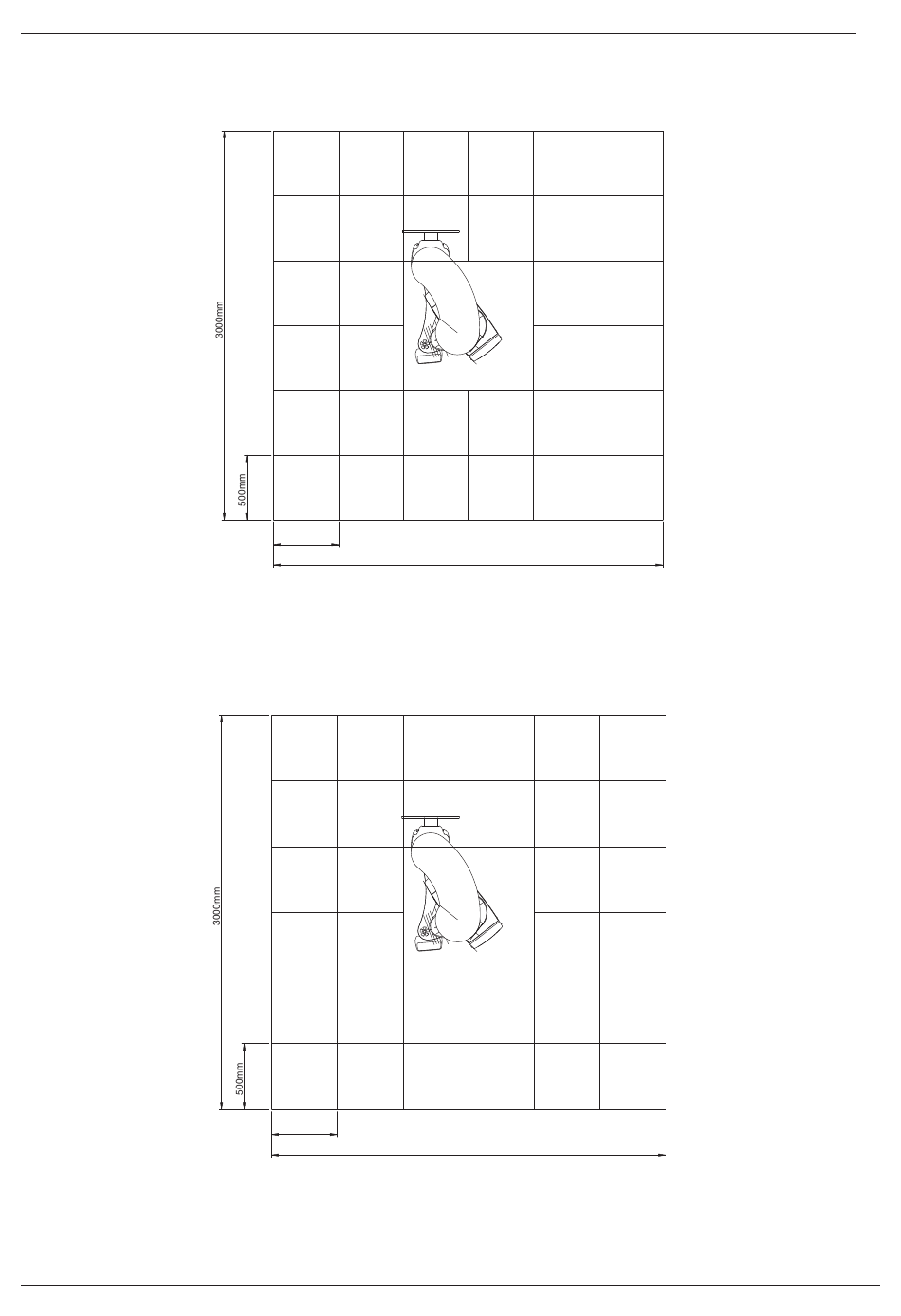

Figure 6 Stray radiation measurements with exposure values 84 kV and 16 mA,
normal resolution
Figure 7 Stray radiation measurements with exposure values 84 kV and 8 mA, low dose
A-18 Planmeca ProMax
Normal_resolution_84kV_16mA_3DS.eps
10 1 6
19 26 2
26 60
24 63
18 35 64
13 20 26
500mm
3000mm
Low_dose_84kV_8mA_3DS.eps
9 2 5
18 20 2
28 65
24 64
18 36 67
13 21 28
500mm
3000mm
PROMAX 3D: STRAY RADIATION MEASUREMENTS
15 11 7
40 17 10
34 12
37 13
37 20 10
18 10 7
18 12 7
48 17 9
23 9
35 12
31 21 11
19 10 7
Technical Manual
