Planmeca ProMax Technical Manual page 18

Chapter A - GENERAL & TECHNICAL DATA

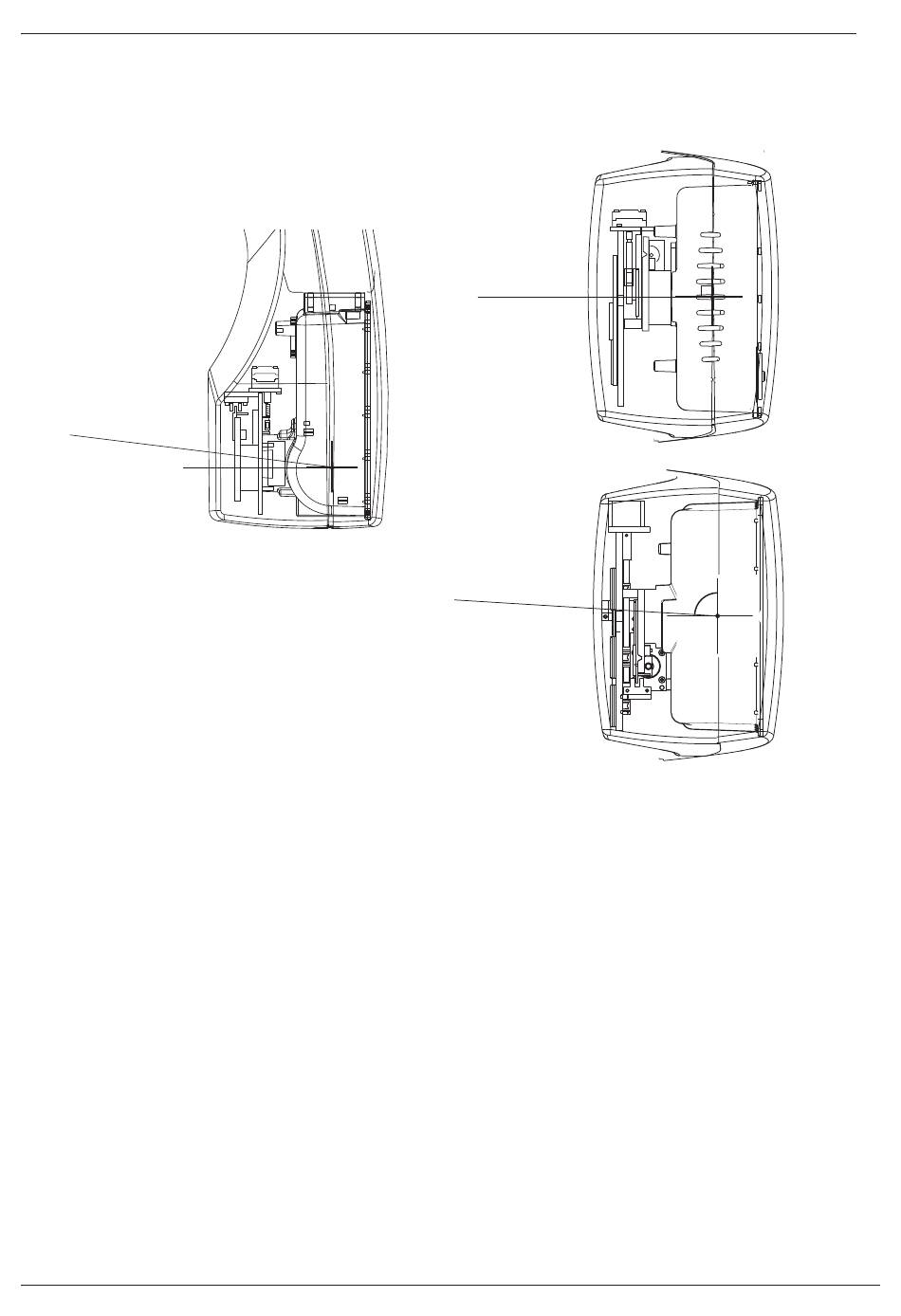

Reference axis to which the target angle and the focal spot
characteristics of the tube head assembly refer
7º
Target angle with respect to the reference axis
5°
Dimensions of the tube head assembly
(WxHxD) 235mm x 340mm x 120mm
Weight of the tube head assembly
10.3 kg without collimator assembly
11.2 kg with collimator assembly
Values of loading factors concerning leakage radiation
84 kV, 16 mA
Tolerances of the focal spot on the reference axis
X= ±0.5mm (sideways)
Y= ±0.5mm (in depth)
Z= ±0.5mm (in height)
A-10 Planmeca ProMax
focal_spot1.eps
Pan/ceph
3D/3D s/pan/ceph
USER'S STATEMENT
focal_spot2.eps
90º
86.5º
Technical Manual
