Planmeca ProMax Technical Manual page 142

Chapter E - C-ARM AND IMAGING ARM

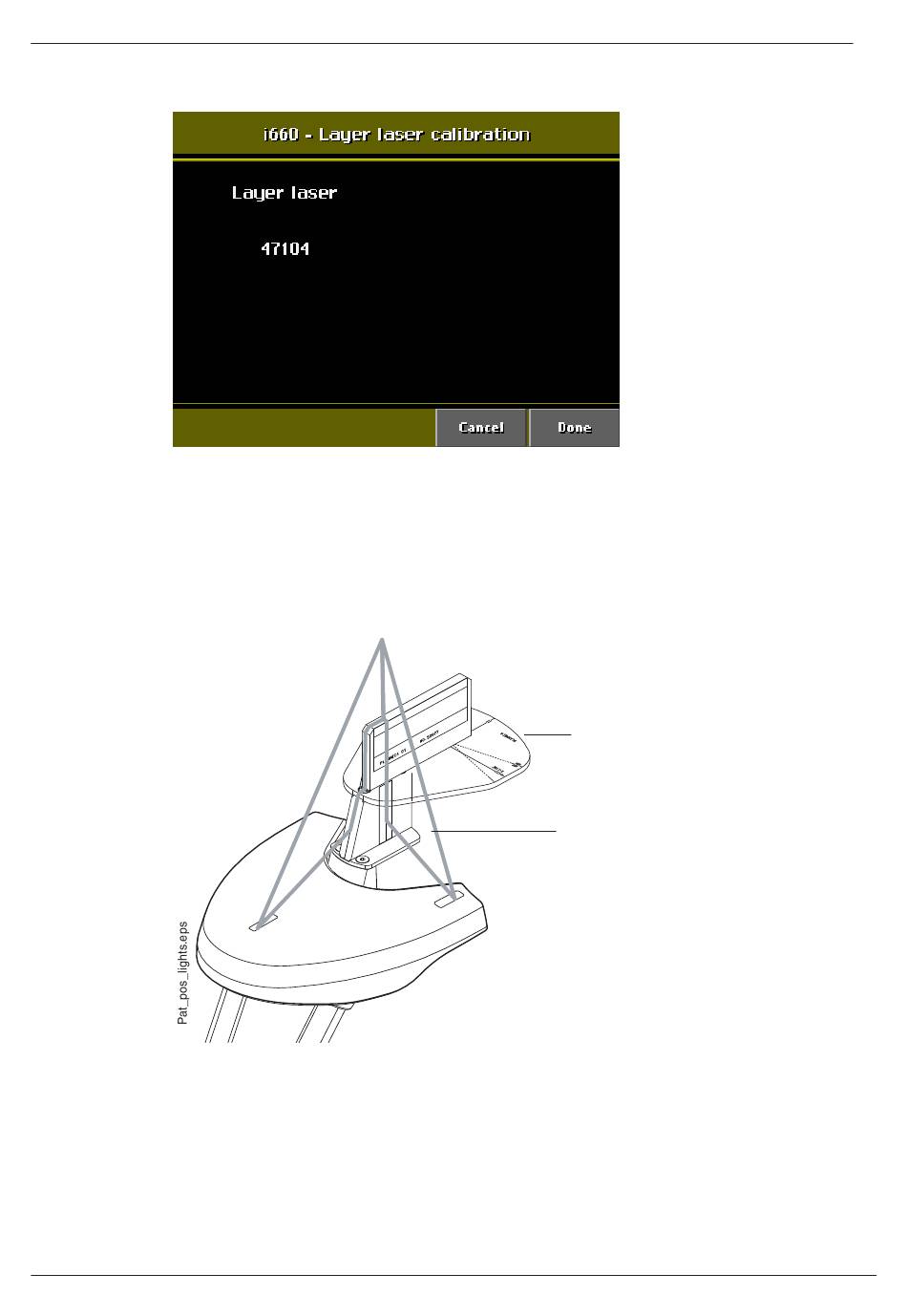

The Layer laser calibration display appears.
Figure 61
Move the thumb wheel of the layer light slightly to switch the three patient positioning lights
on. The layer light thumb wheel is located on the underside of the patient support table. Move
the layer light beam so that it is on the black reference line on the side of the ball phantom.
Accept the new the layer light zero position and exit the calibration mode by touching the
Done field.
Figure 62
If the light beam is not vertical, or it is in focus, it must be adjusted according to the instruc-
tions on next page.
E-44 Planmeca ProMax
PANORAMIC BEAM AND PATIENT POSITIONING MECHANISM
Ball phantom
Layer light beam
ADJUSTMENT
Technical Manual
