ADJUSTMENTS AND CALIBRATIONS

1.14 Beam check

This feature in the digital ProMax units allows the user to check that the X-ray unit is properly
collimated.
NOTE The X-ray beam must be adjusted and the sensor head calibrated before you start the
Beam Check.
To run the Beam Check test for a cephalostatic X-ray beam, proceed as follows:

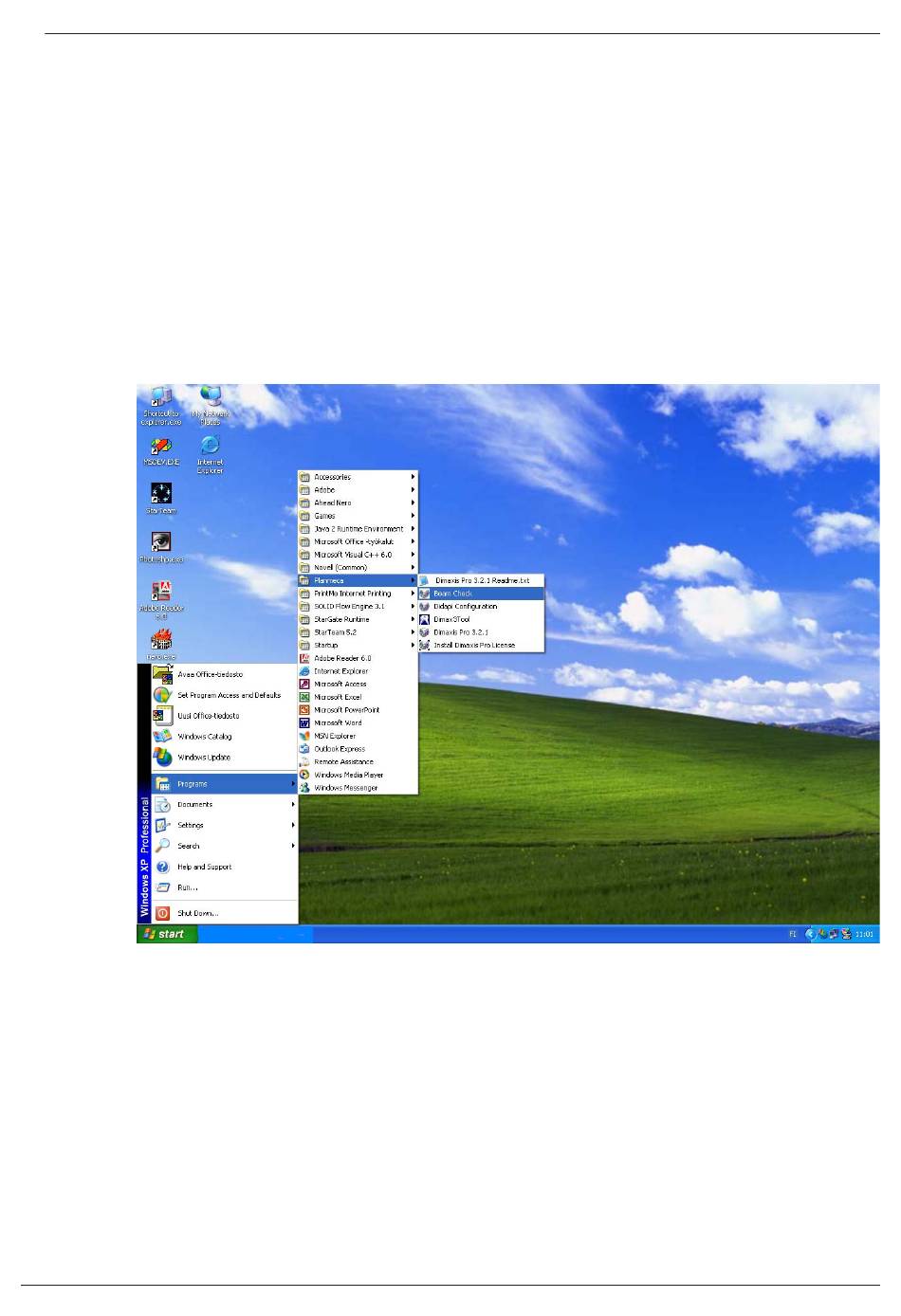

Start the Beam Check program by clicking Start > Programs > Planmeca. Select Beam Check
from the appearing list.
Figure 62
Technical manual
Chapter H - CEPHALOSTAT
Planmeca ProMax H-37
