Planmeca ProMax Technical Manual page 143

PANORAMIC BEAM AND PATIENT POSITIONING
MECHANISM ADJUSTMENT
Layer light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
"Patient support table cover" on page F-7.

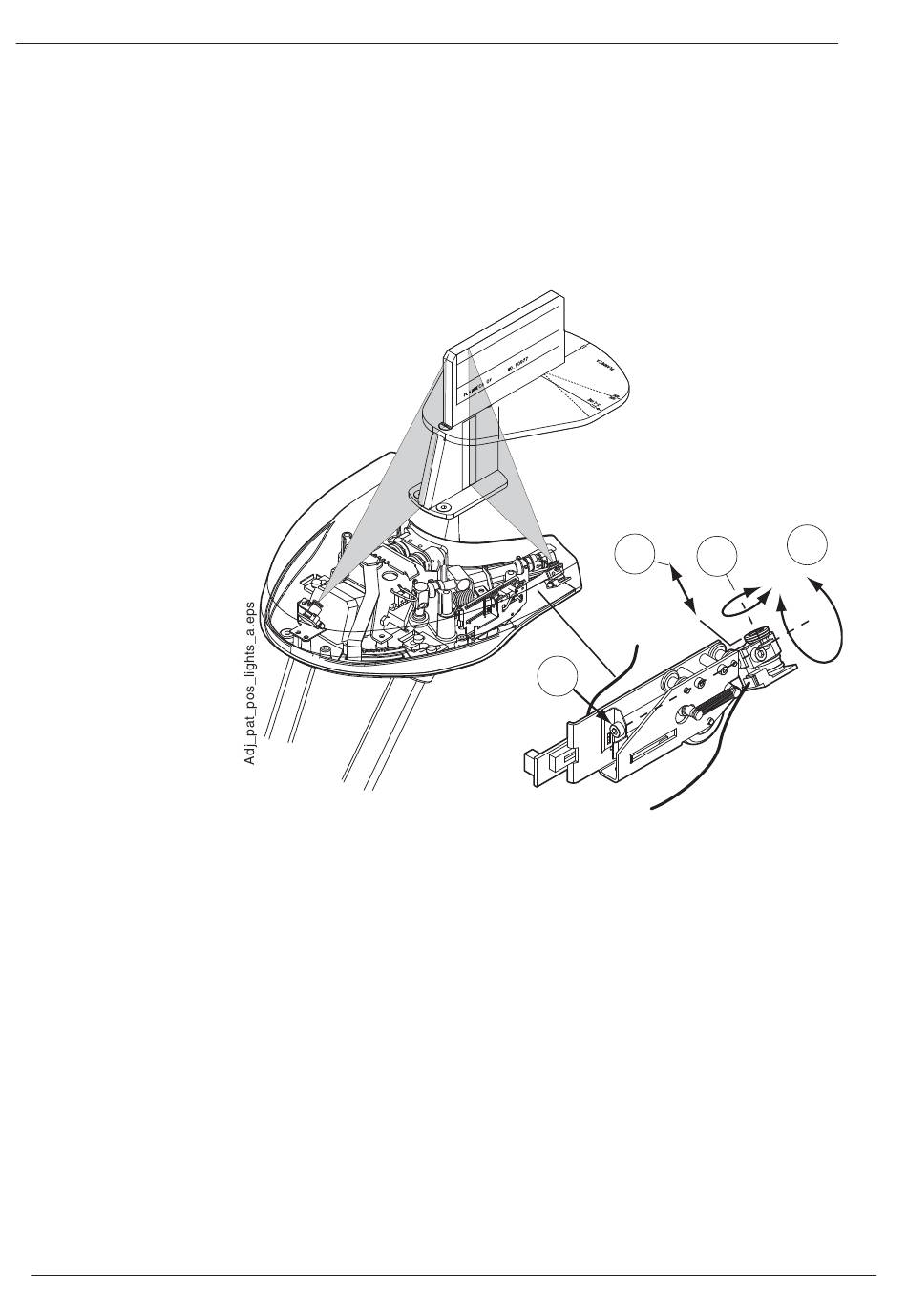

To adjust the light vertical position loosen the attachment screw of the laser light assembly
and rotate the assembly (Fig. 63, 1).
To focus the light beam adjust the depth of the lens assembly (Fig. 63, 2)
To adjust the light beam angle rotate the lens assembly of the light (Fig. 63, 3).
2
Figure 63
Technical Manual
Chapter E - C-ARM AND IMAGING ARM
Layer light
2
3
1
Planmeca ProMax E-45
