raSPARC User's Manual
CLK
0
CYCLE
TSYN_WR_L
TOE_L
ECAT
TDATA
DSYN_WR_L
DOE_L
ECAD
EDATA

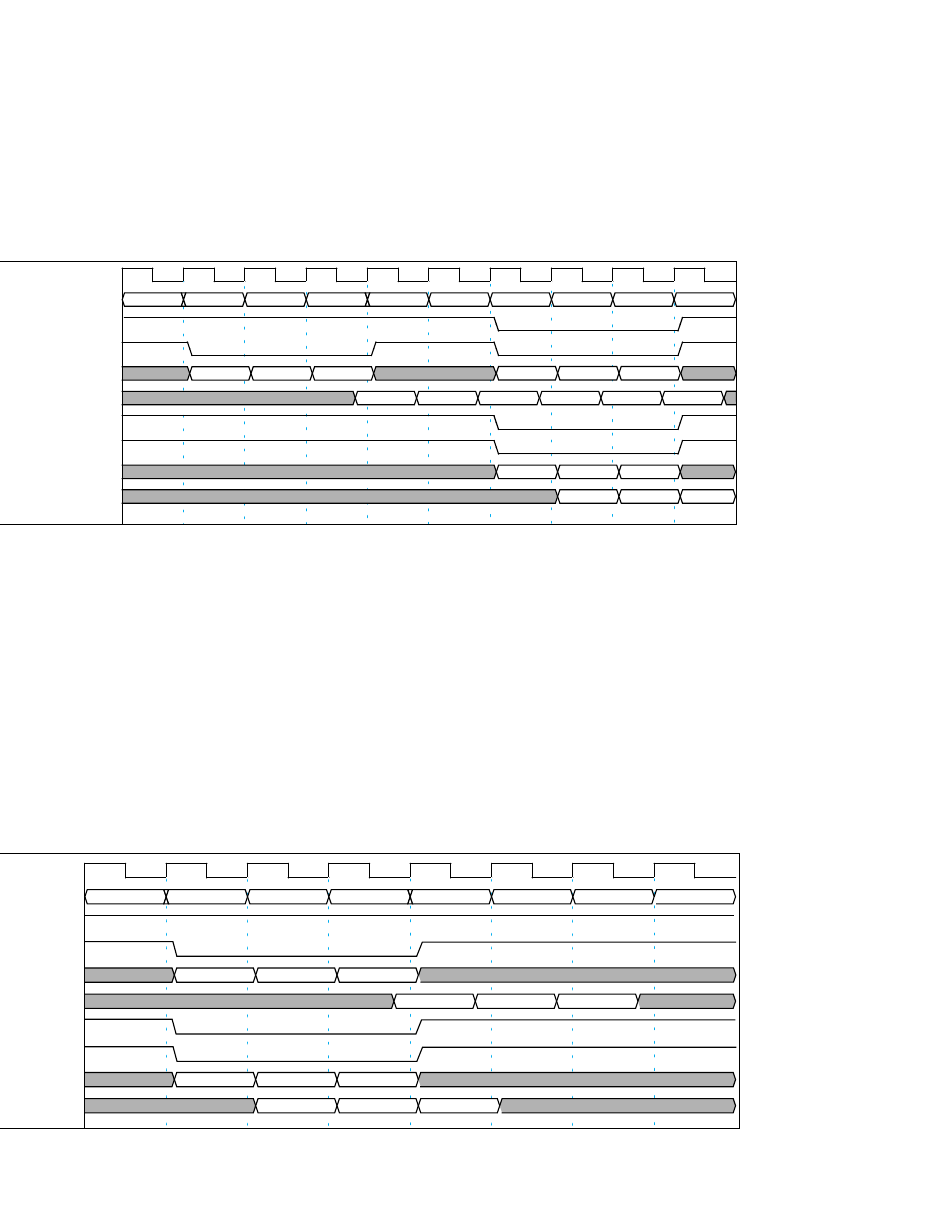

Figure 7-7 Timing for Coherent Writes with E-to-M State Transition (1–1–1 Mode)
Otherwise, the tag port is available for a tag check of a younger store during the
data write. In the timing diagram shown in Figure 7-5 on page 81, the store buffer
is empty when the first write request is made, which is why there is no overlap
between the tag accesses and the write accesses. In normal operation, if the line is
in M state, the tag access for one write can be done in parallel with the data write
of previous write (E state updates cannot be overlapped). This independence of
the tag and data buses make the peak store bandwidth as high as the load band-
width (one per cycle). Figure 7-8 shows the 1–1–1 Mode overlap of tag and data
accesses. The data for three previous writes (W0, W1 and W2) is written while
three tag accesses (reads) are made for three younger stores (R3, R4 and R5).
CLK
CYCLE
0
SYN_WR_L
TOE_L
ECAT
TDATA
SYN_WR_L
DOE_L
ECAD
EDATA
Figure 7-8 Timing Overlap: Tag Access / Data Write for Coherent Writes (1–1–1 Mode)
