UltraSPARC User's Manual
S_REQ
P_REPLY
S_REPLY to Get Data

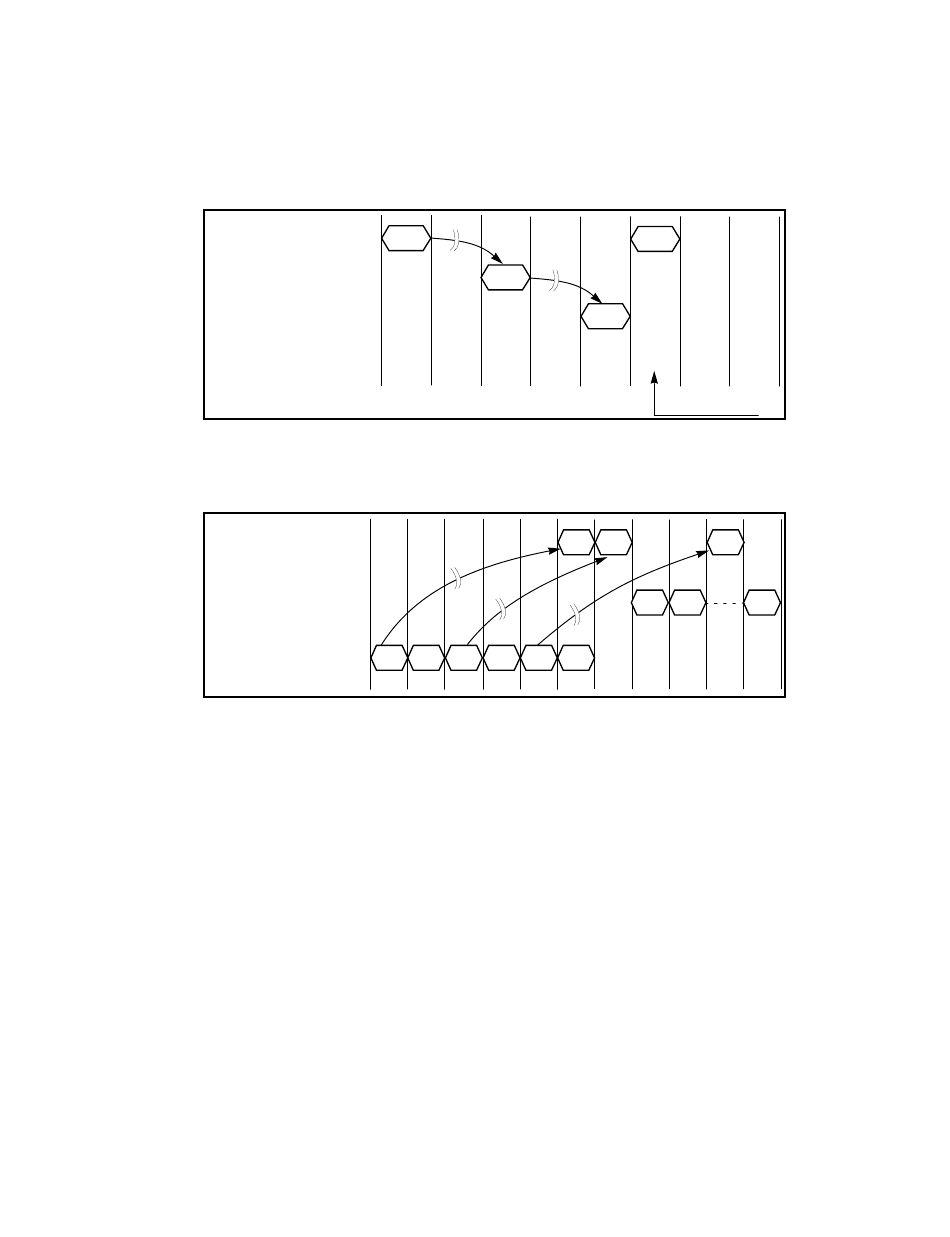

Figure 7-27 Back-to-Back Coherent S_REQs to UltraSPARC
S_REPLY to UltraSPARC
Data on Bus
P_REQ from UltraSPARC
Figure 7-28 S_REPLY Pipelining to UltraSPARC for Data Transfers
7.13.4 Data Stall
Normally, each 128-bit data word of a 64-byte block transfer flows on SYSDATA
in successive clock cycles without stalls. To facilitate flexible timings for DRAMs,
however, a Data_Stall signal is provided to allow the SC to delay individual
128-bit transfers. Data_Stall also qualifies the S_REPLY signal accompanying a
data transfer. The following rules govern the assertion of Data_Stall:
1. When UltraSPARC is sourcing data, the earliest that SC can assert
Data_Stall is one system clock cycle after it asserts S_REPLY. Asserting
Data_Stall causes the data being driven on SYSDATA during the following
system clock to be held for an additional clock.
Sun Microelectronics
124
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
S_REQ
P_SACK
NCWR1 NCWR1 NCWR2 NCWR2 RDS3
S_REQ2
S_CRAB
Earliest S_REQ2
S_WAS S_WAS2 S_RBU3
D[1] D[2]
RDS3
D[3]
