3.10 Memory Interface Unit (MIU)
The MIU handles all transactions to the system controller; for example, external
cache misses, interrupts, snoops, writebacks, and so on. The MIU communicates
with the system at some model-dependent fraction of the UltraSPARC frequency.
Table 1-5 shows the possible ratios between the processor and system clock fre-
quencies for each UltraSPARC model.

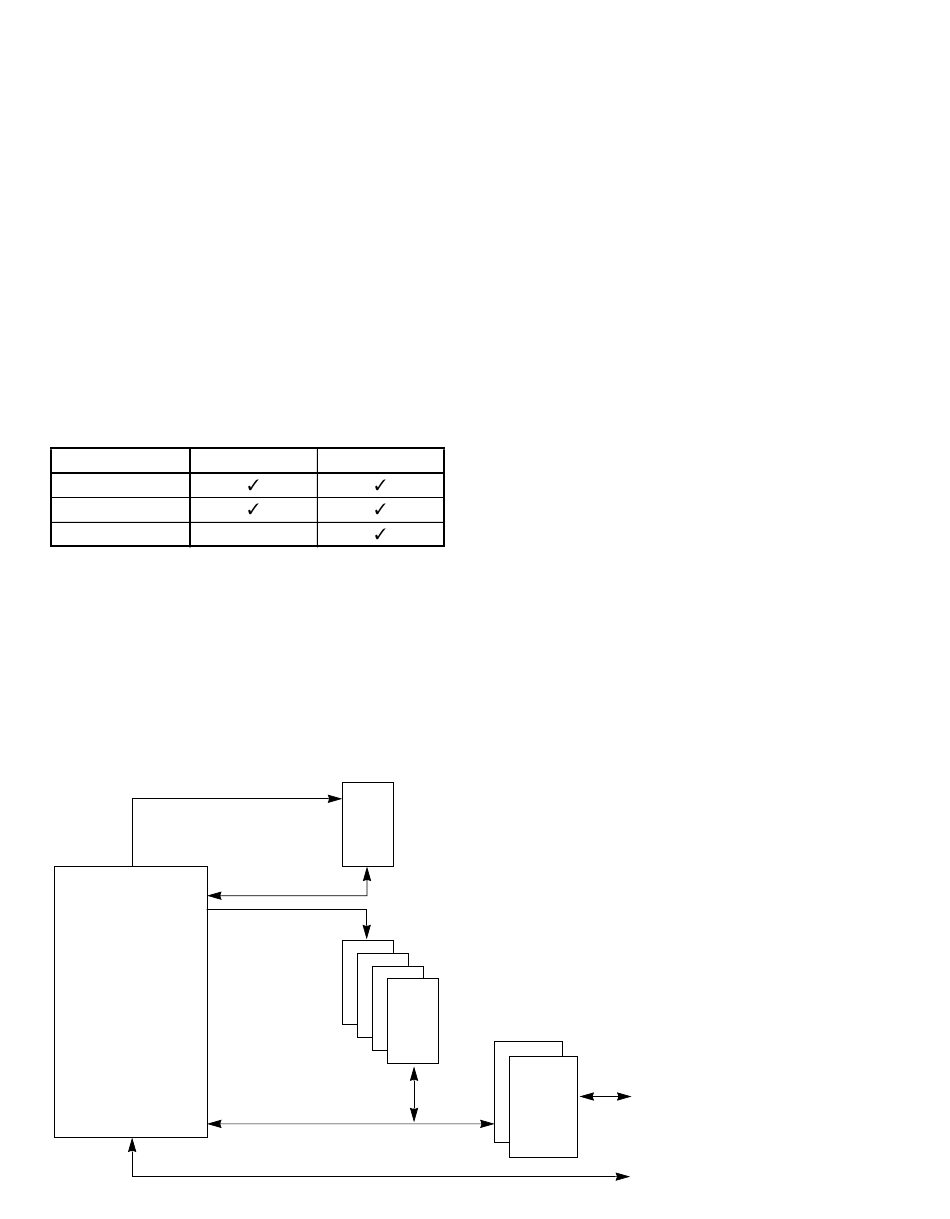

Table 1-5 Model-Dependent Processor : System Clock Frequency Ratios
Frequency Ratio
2 : 1
3 : 1
4 : 1

4 UltraSPARC Subsystem

Figure 1-2 shows a complete UltraSPARC subsystem, which consists of the
UltraSPARC processor, synchronous SRAM components for the E-Cache tags and
data, and two UltraSPARC Data Buffer (UDB) chips. The UDBs isolate the
E-Cache from the system, provide data buffers for incoming and outgoing system
transactions, and provide ECC generation and checking.
UltraSPARC
Processor
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
UltraSPARC-I UltraSPARC-II
Tag Address
Tag Data
Data Address
E-Cache Data
E-Cache Tag SRAM
E-Cache Data SRAM
UDB
System
Data Bus
System
Address Bus
