1.3 Component Overview

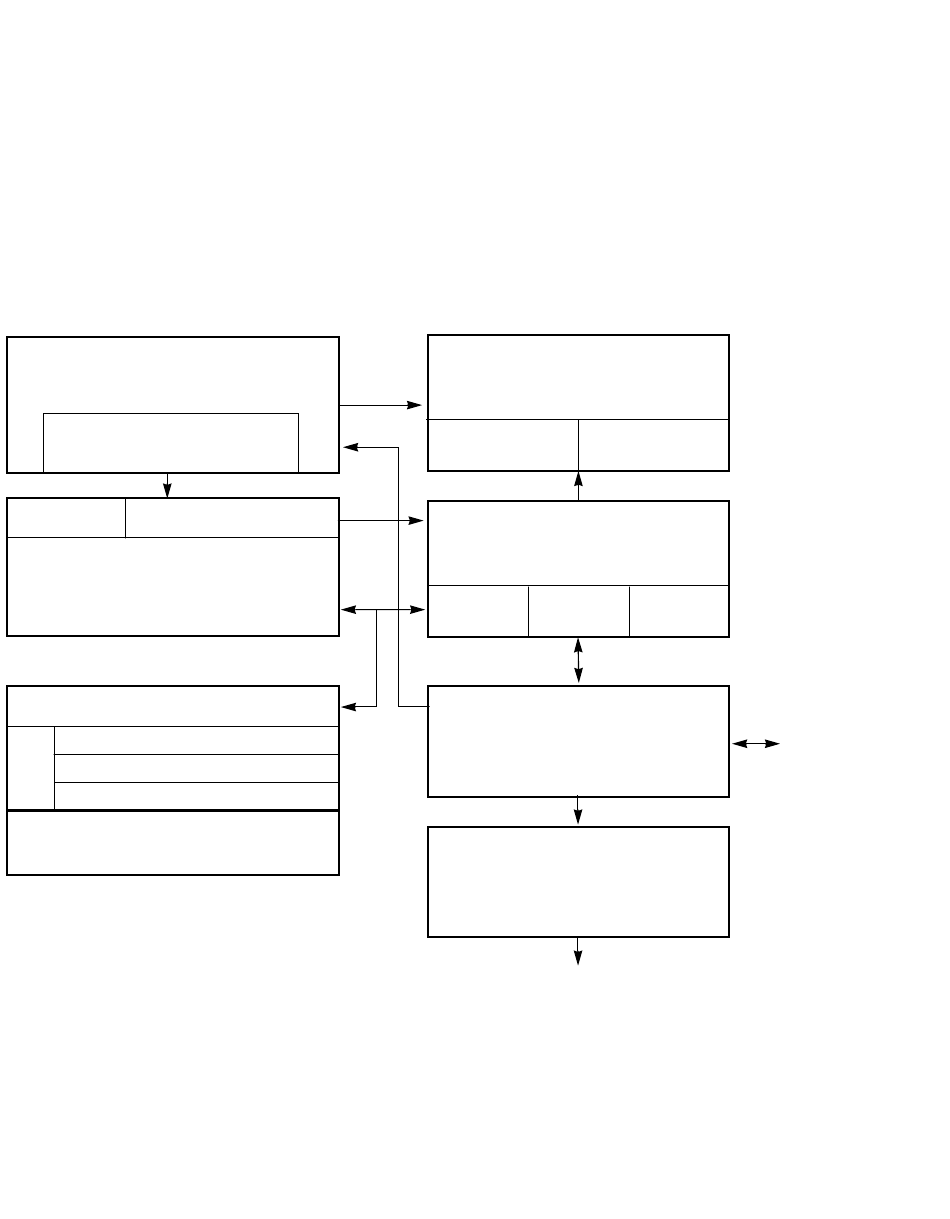

Figure 1-1 shows a block diagram of the UltraSPARC processor.
Prefetch and Dispatch Unit (PDU)
Instruction Cache and Buffer
Grouping Logic Integer Reg and Annex
Integer Execution Unit (IEU)
Floating Point Unit (FPU)
FP Multiply
FP
FP Add
Reg
FP Divide
Graphics Unit (GRU)
Figure 1-1
The block diagram illustrates the following components:
•
Prefetch and Dispatch Unit (PDU), including logic for branch prediction
•
16Kb Instruction Cache (I-Cache)
•
Memory Management Unit (MMU), containing a 64-entry Instruction
