6-3-2

Function

6-3-2-1

Scale

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> Scale by pressing the < LEFT or RIGHT > button to move the cursor and
the MENU (middle) key.
3.) Select FULL/5:4/NATIVE by pressing the < LEFT or RIGHT > button to decrease/increase the value
and the MENU (middle) key.
6-3-2-2

Information

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> INFORMATION by pressing the < LEFT or RIGHT > button to move the
cursor and the MENU (middle) key.
3 DRAFT (J

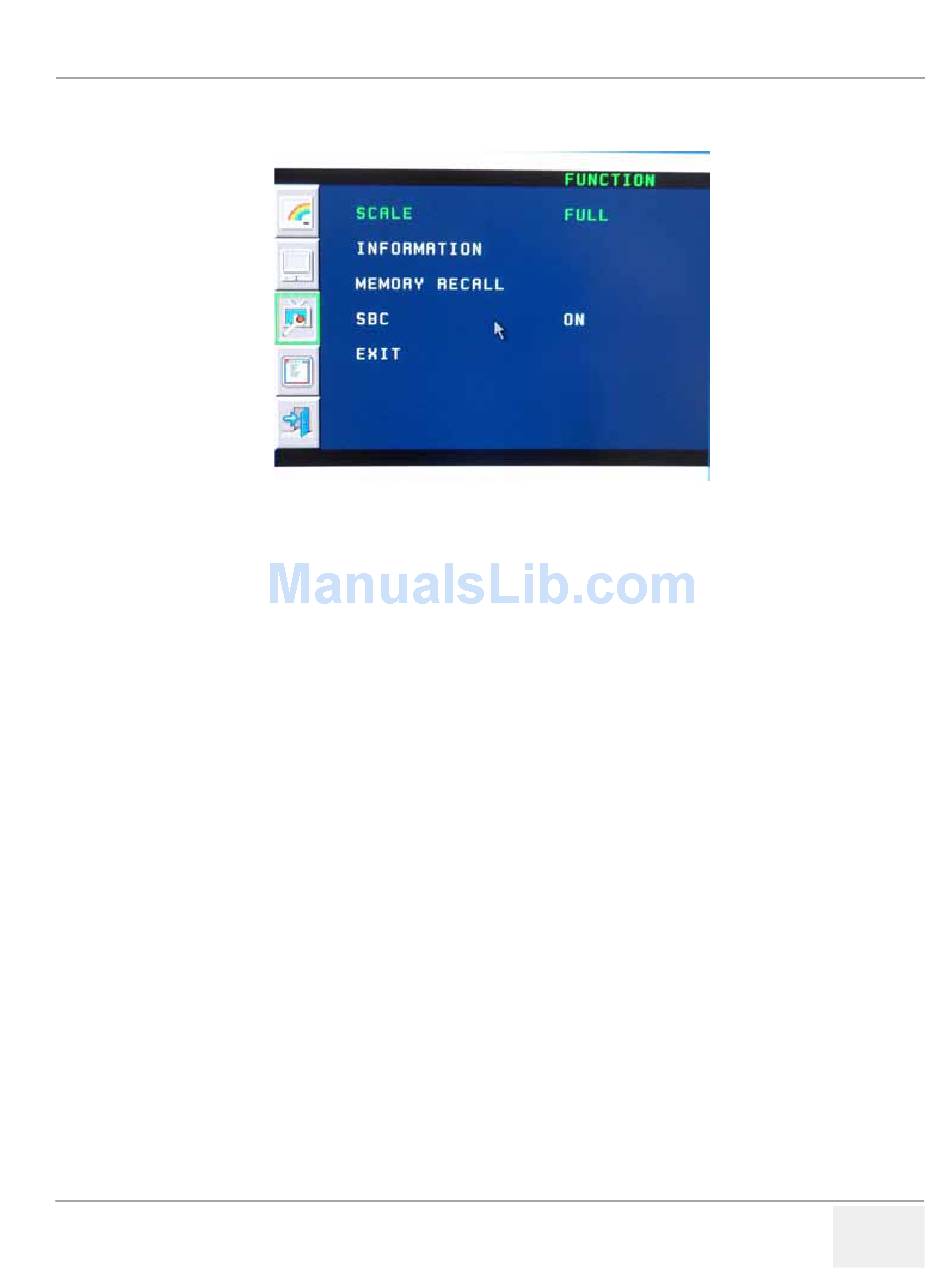

Figure 6-4 Function
