5.) Unscrew 1 screw and remove the 1st arm cover polaris. Refer to the figure below.
6.) Remove 1 cable ties and extract the monitor cable through the hole. Refer to the figure below.
7.) Unscrew one screw to extract the setscrew. Refer to the figure below.
8-132
3 DRAFT (J

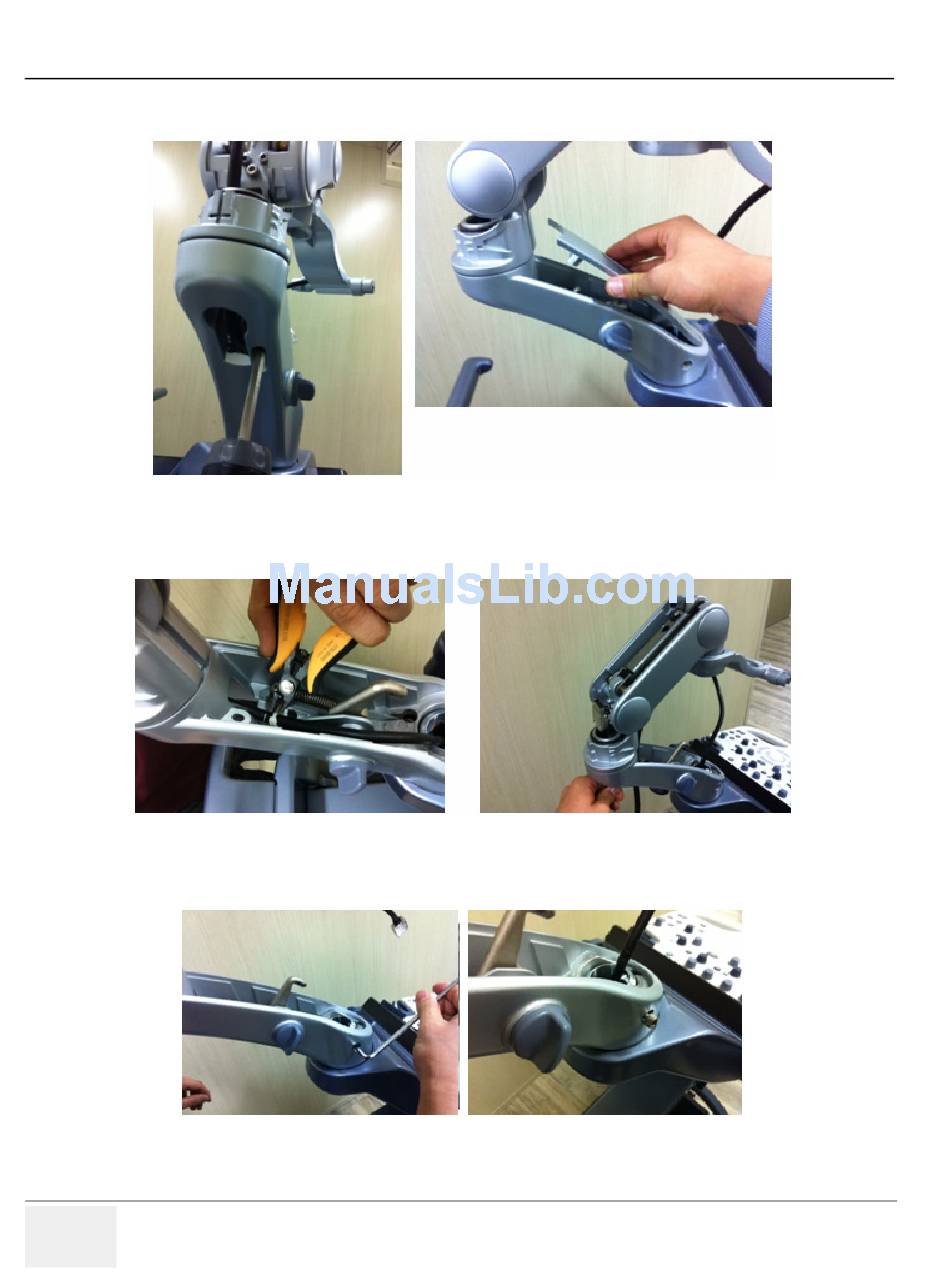

Figure 8-154 Removing the 1st arm cover
Figure 8-155 Remove cable ties and pull out Harness cable
Figure 8-156 Extracting the setscrew
Section 8-31 - Replacement of the Monitor Arm
