Replacement of the SOM,HDD and DVR

8-21-1 Manpower
One person, 5 minutes.
8-21-2 Tools
Phillips screwdriver.
8-21-3 Removal Procedure (R1.x.x)

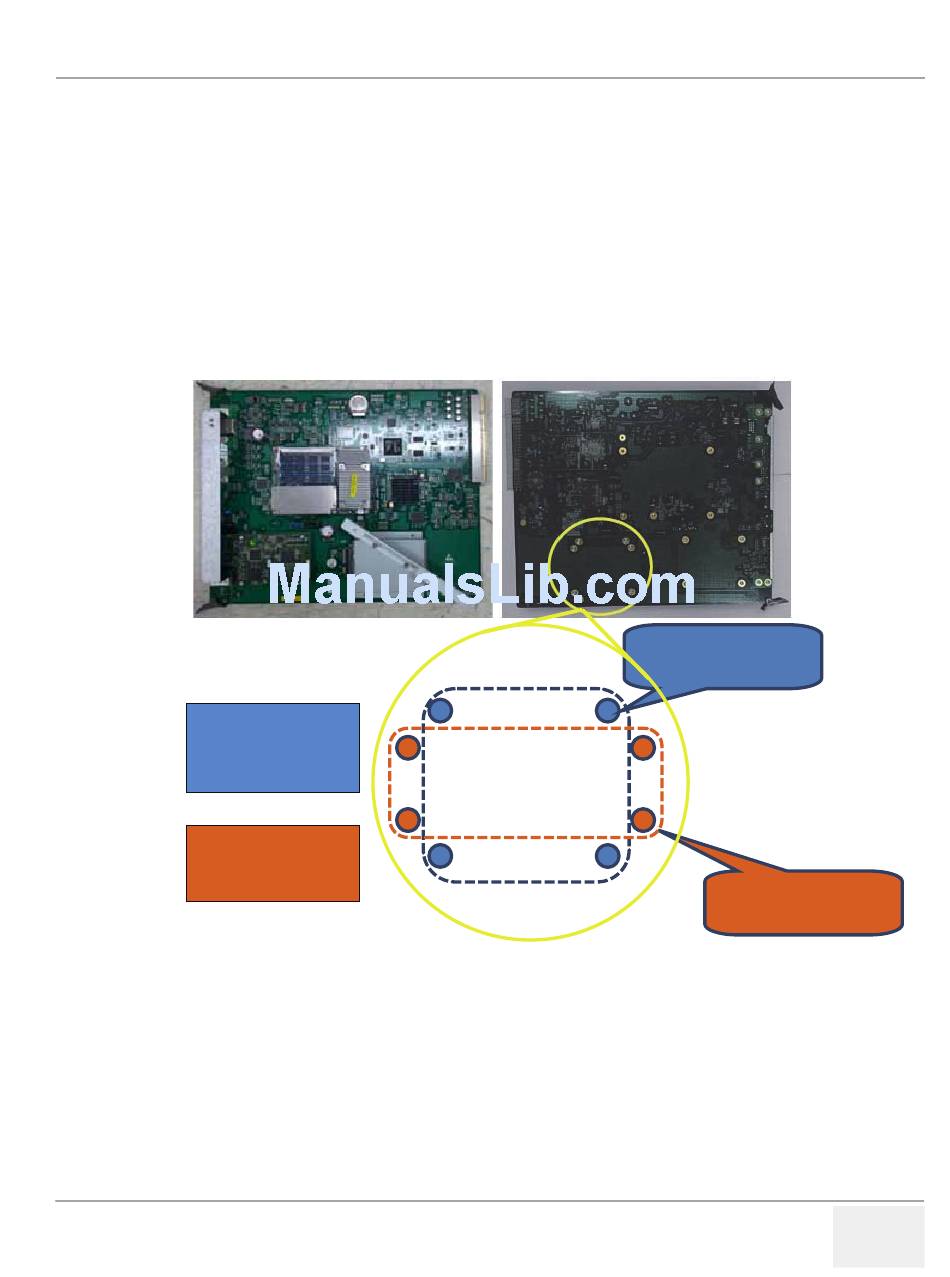

1.) Unscrew eight screws and separate Hard disk from the GFS.
1st set of 4 screws retain
air duct and metal piece
seated on top of Hard
Drive
2nd set of 4 screws retain
Hard Drive to GFS board
(*1)
NOTE:
3 DRAFT (J
(*1) When screws removed, Hard Disk Drive is connected to GFS board
only by its connector. Pay extra attention when flipping GFS Board
Figure 8-96 Separating Hard Disk
