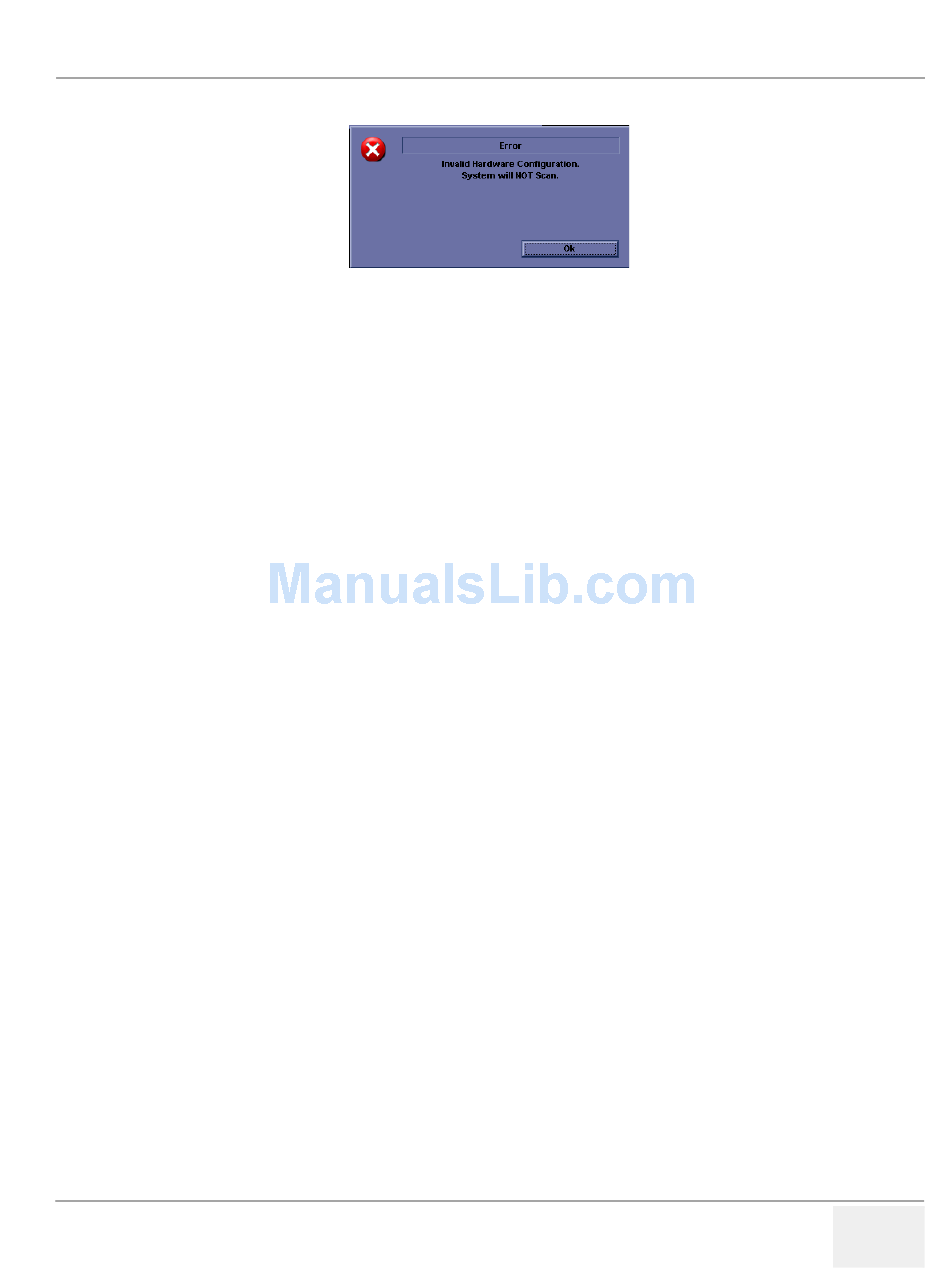

Hardware configuration error

7-4-3-4-1

Cause

Hardware(s) not detected as valid system. System will boot up but will not allow scanning.
7-4-3-4-2

What to do

1.Press OK, and shutdown the system and reboot.
2.If same issue persists, then shutdown the system, system breaker.
7-4-3-4-3

Log message of the Invalid hardware error

Example
Error ; acqHWCAP(1776); ********************************************
Error ; acqHWCAP(1776); ***
Error ; acqHWCap(1776); *** HW RACK CONFIGURATION INVALID!!! ***
Error ; acqHWCAP(1776); ***
Error ; acqHWCAP(1776); ********************************************
Error ; acqHWCAP(1776); ***
Error ; acqHWCAP(1776); *** Board FuncRevs Provided
Error ; acqHWCAP(1776); *** -----------------------
Error ; acqHWCAP(1776); *** BF_FuncRev1D (qty=1)
Error ; acqHWCAP(1776); *** COMEXP_FuncRev1A (qty=1)
Error ; acqHWCAP(1776); *** CPS_FuncRev1A (qty=1)
Error ; acqHWCAP(1776); *** GFS_FuncRev1A (qty=1)
Error ; acqHWCAP(1776); *** PIL_FuncRev1A (qty=1)
Error ; acqHWCAP(1776); ***
Error ; acqHWCAP(1776); ********************************************
Info ; DFEManager(1776); HandleRunFlag: setting RunDfe and RunBlock flags to true!
Error ; EAErrorHandler(1776); Error from acqHWCAP: Invalid Hardware Rack Configuration - Check
logs. Severity : FatalHW
