6.) Unscrew four screws to separate FAN Assy.
8-18-4

Installation Procedure

1.) Parts to be installed in reverse order of removal.
8-18-5 Functional Check
Visual examination.
1.) Verify that Fan is rotating when system is turned ON.
2.) Verify that LED indicator flickers when system is turned ON.
3 DRAFT (J

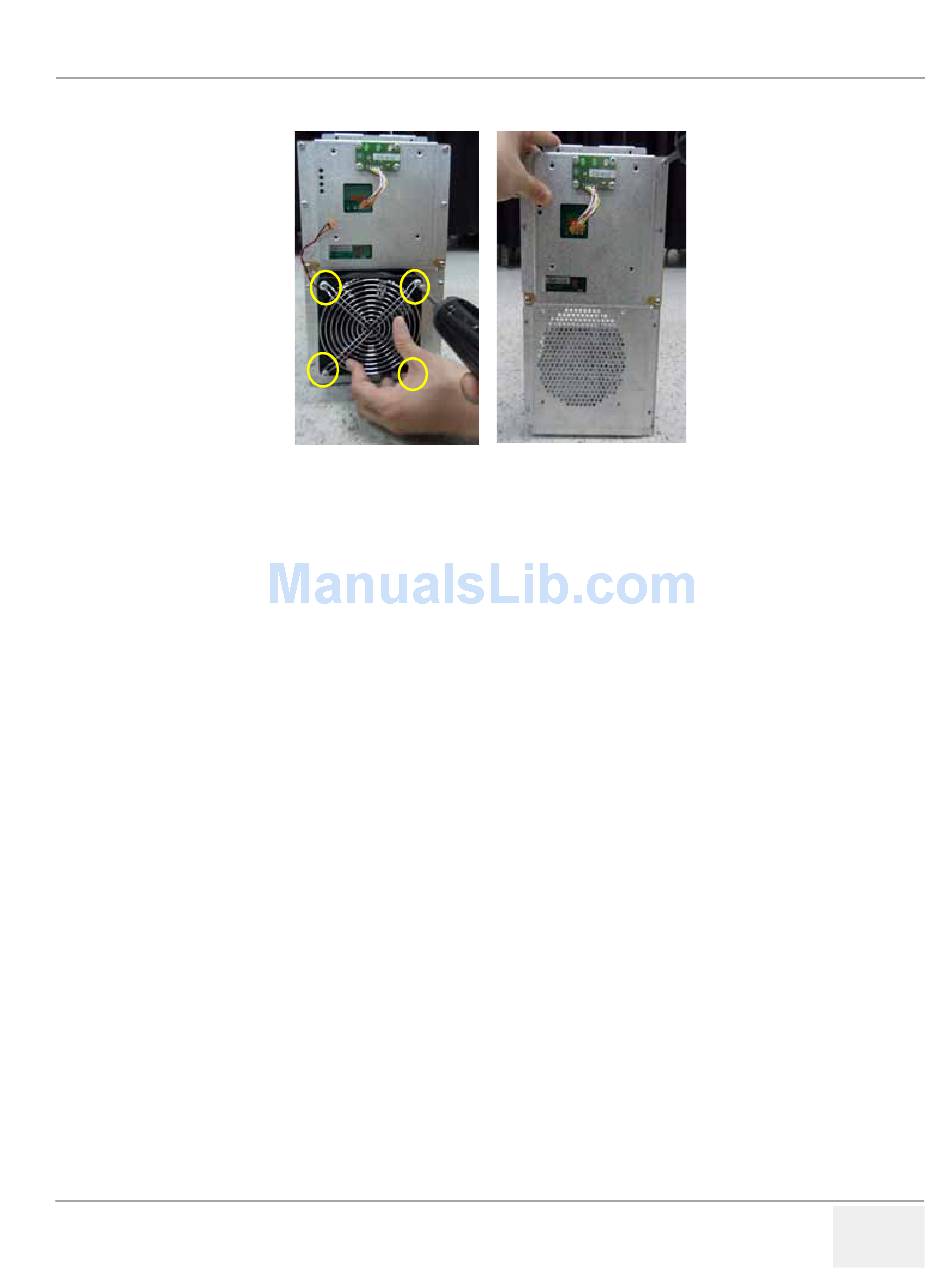

Figure 8-91 Removing the FAN Assy
Chapter 8 - Replacement Procedures
25, 2014)
UNE
LOGIQ™ S7 E /P
XPERT RO
S M
ERVICE ANUAL
