Replacement of the Probe Holder(Kit), Cable Hook, and Extended probe holder

Replacement of Circle Key Caps only
8-27-1
Manpower
1 person, 5 minutes.
8-27-2
Tools
Phillips Screwdriver.
8-27-3
Removal Procedure
8-27-3-1
Removal Procedure - Probe Holder
1.) Simply pull out Probe Holder from its location.
NOTE:
Probe holder will not require any tools.
NOTE:
This procedure applies to all locations of probe holder, including extended probe holder (Option).
Probe Holder
3
DRAFT (J

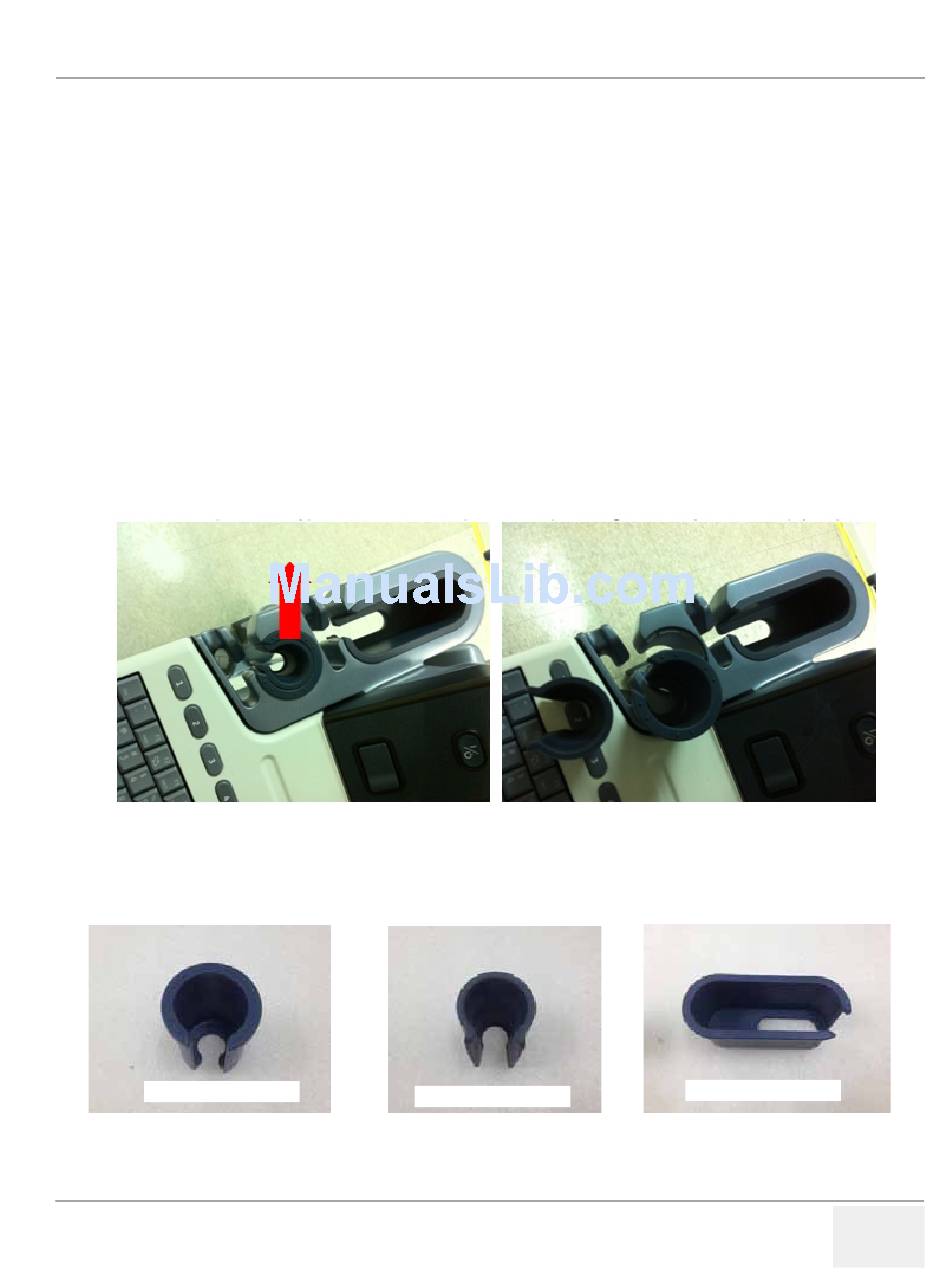

Figure 8-130 Probe Holder
Small Probe Cup
Figure 8-131 Probe Holders
Chapter 8 - Replacement Procedures
25, 2014)
UNE
LOGIQ™ S7 E
XPERT
S
M
ERVICE
ANUAL
Probe Holder Removed
4D Probe Holder
8-117
/P
RO
