B/W on Side Cabinet

8-29-1-2-1 Manpower
1 person, 1 hour
8-29-1-2-2 Tools
Philips screwdriver
8-29-1-2-3 Removal Procedure
1.) Remove the B/W printer cables from the system (Refer to Section 8-26-2).
2.) Remove the B/W printer cables from the printer.
3.) Unscrew four screws to remove the B/W printer from the side cabinet.
3 DRAFT (J

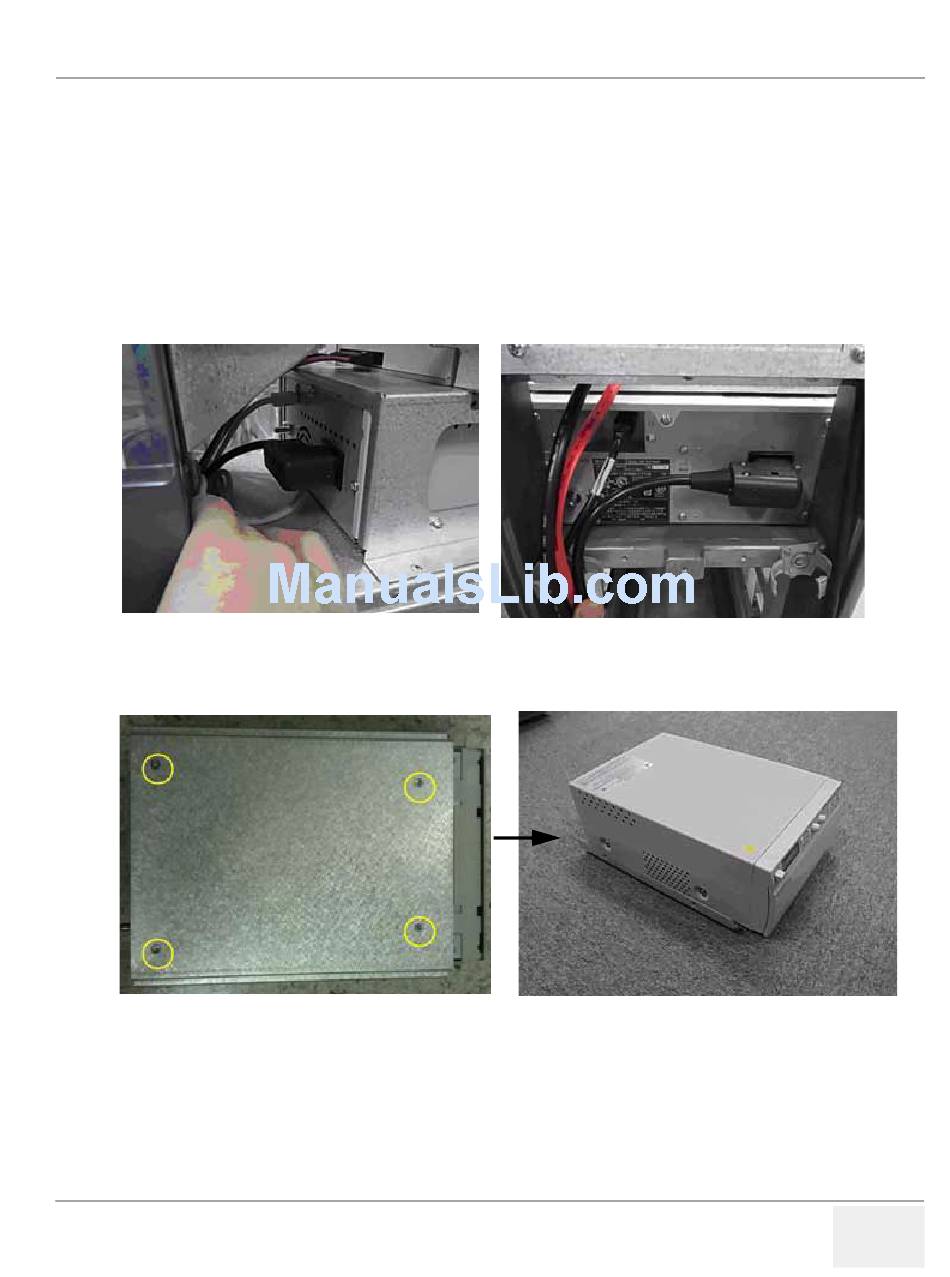

Figure 8-139 Removal B/W printer Cables
Figure 8-140 Removal B/W printer
