3-8-5-1

UP-D897 - Printer Settings

1.) Call up the 'Printer Preferences'; operation see:
2.) Select the
-
-
-
3.) Select the
-
-
4.) For saving the adjusted printer settings click APPLY and then OK.
Finally close the 'Printers' -window with the close button and exit System Setup with SAVE&EXIT.
3 DRAFT (J
page (see: Figure 3-24
LAYOUT
Paper: 960x1280
Orientation: Portrait
Interpolation Method: Bilinear

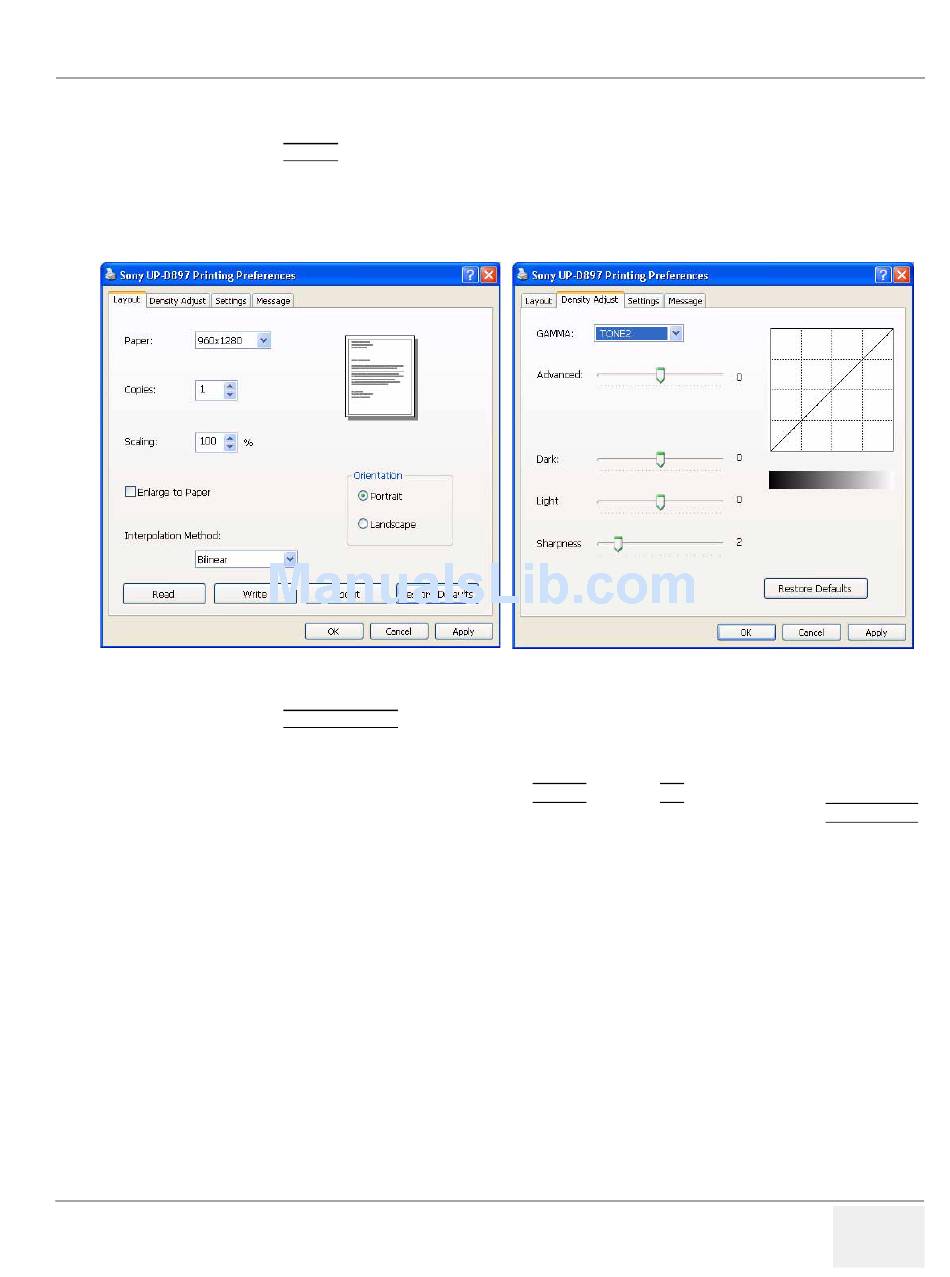

Figure 3-24 Layout + Density Adjust page
page (see:
DENSITY ADJUST
Gamma: TONE2
Sharpness = 0; Dark = 0; Light = 0 ; Sharpness = 2
Chapter 3 - Setup Instructions
25, 2014)
UNE
Section 3-8-5 "Adjustment of Printer Settings"
below) and select:
Figure 3-24 above) and select:
