Replacement Of Peripheral Cable Assy - GE LOGIQ S7 Expert Service Manual

GE H DRAFT
EALTHCARE
D 5460683, R
IRECTION EVISION
Section 8-26

Replacement of Peripheral Cable Assy

8-26-1 DVD Cables
8-26-1-1 Manpower
One person, 45 minutes.
8-26-1-2 Tools
Phillips screwdriver.
8-26-1-3 Removal Procedure
1.) Remove the DVD cable connector from the rear panel.
2.) Remove the DVD cable connector from the rear panel.
3 DRAFT (J

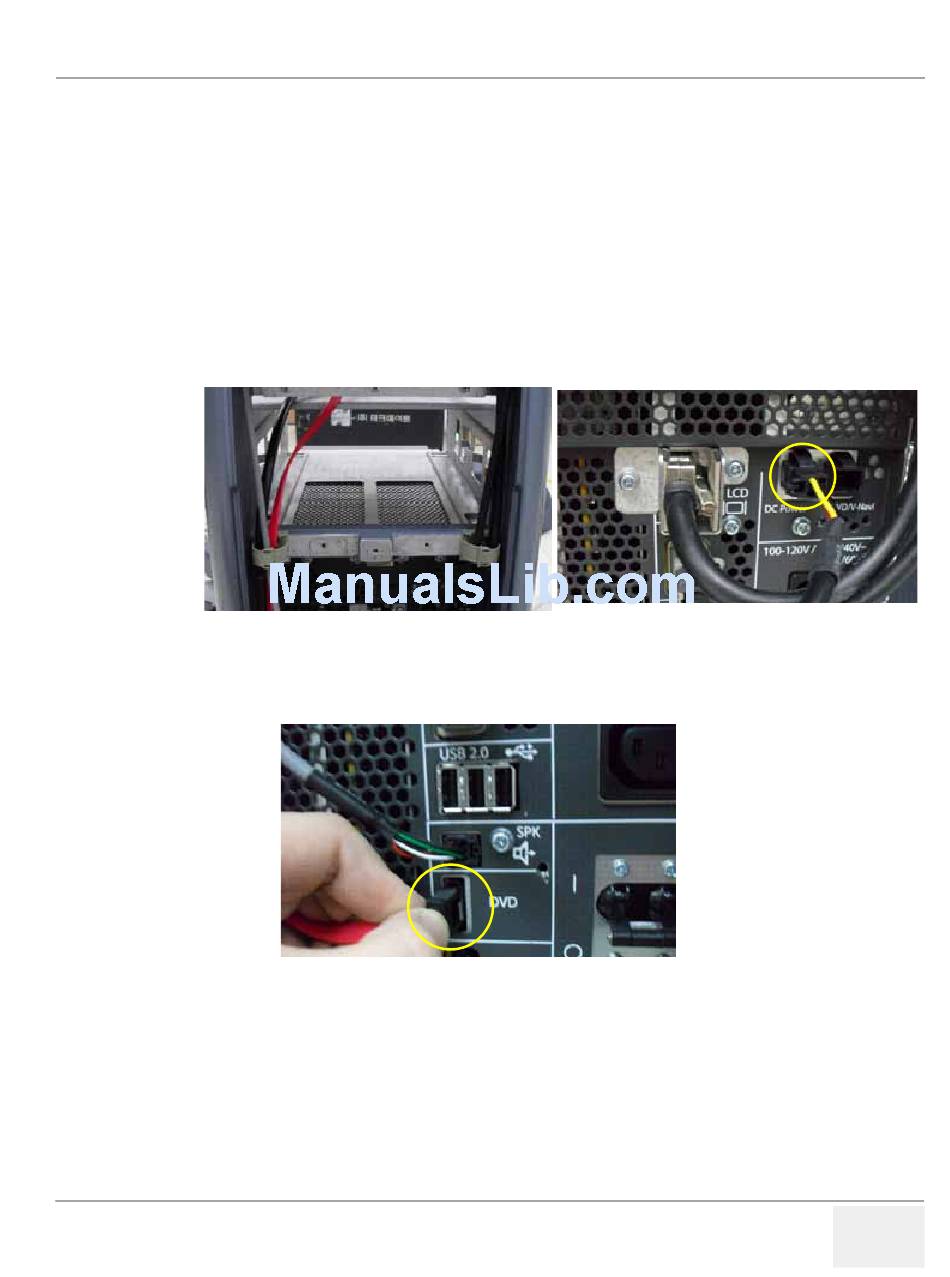

Figure 8-123 Remove DVD cable connector from rear panel
Figure 8-124 Remove DVD cable connector from rear panel
Chapter 8 - Replacement Procedures
25, 2014)
UNE
DVD Cable
LOGIQ™ S7 E /P
XPERT RO
S M
ERVICE ANUAL
8-113
