4-3-7-3

Color Flow-Mode

1.) Press CF Mode button.
2.) Increase CF Gain until noise floor shows up.
3.) Verify no vertical "streaks" of color that significantly contrasts the surrounding color.
4-3-7-4

Pulse Doppler Mode

1.) From Utility -> Imaging -> General, verify check on "Simultaneous".
2.) Press B Mode button.
3.) Press PW Mode Button.
4.) Verify that system scan B/PW duplex with the activated probe.
3 DRAFT (J

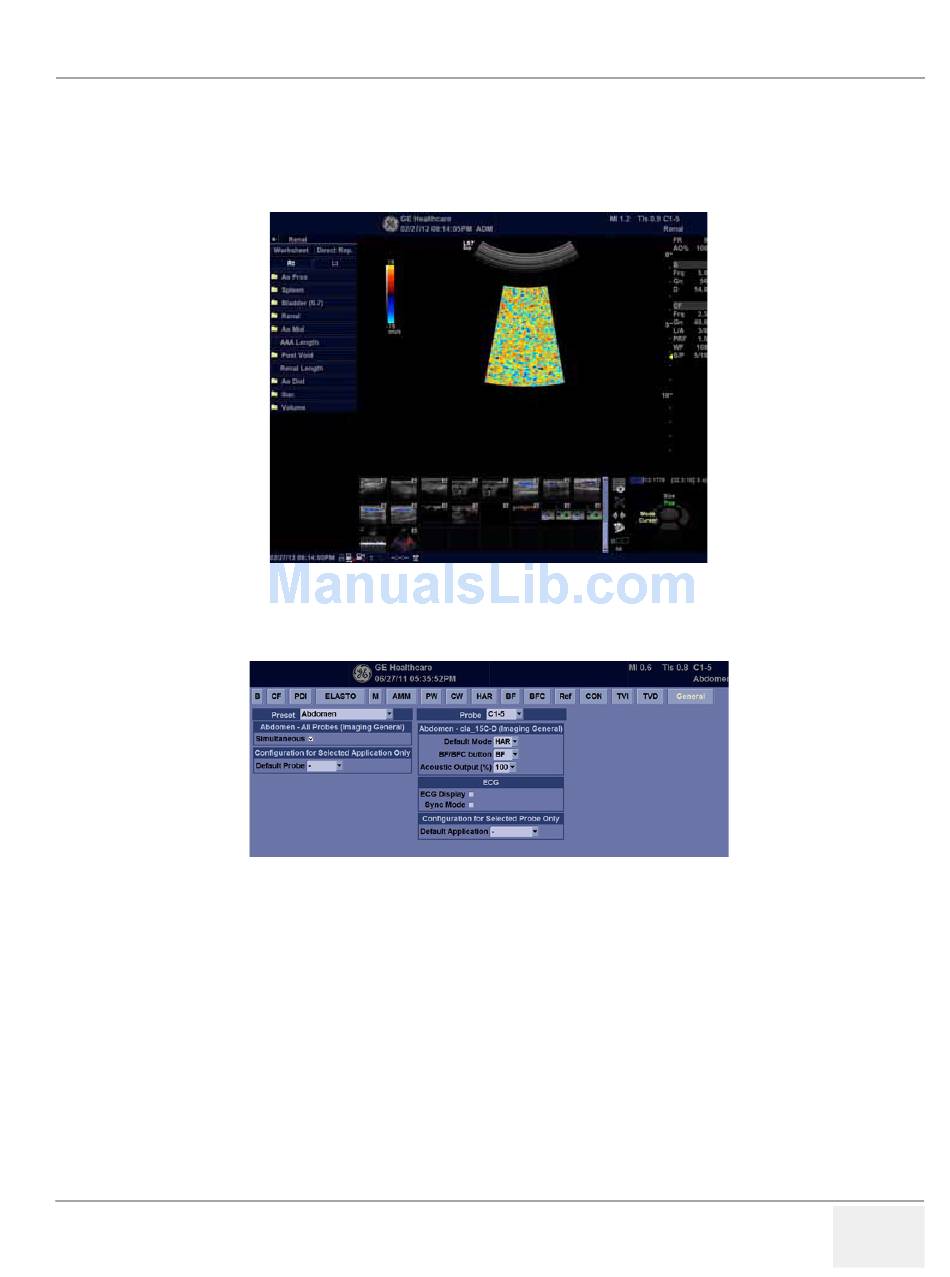

Figure 4-22 Color Flow-Mode
Figure 4-23
