3.) Pullout AN Key Top Assy from Keyboard Fame. Refer to below
4.) Replace old AN Key Top ASSY with the New AN Key Top ASSY.
5.) Push the 8 points to make AN key Top Assy strongly attach to Key frame refer to below
6.) Remove '1' Key, 'Left Shift' Key, 'F5' Key, '6' Key, '7' Key, 'H' Key, 'J' Key, 'N' Key, 'Back space'
Key, 'Right Shift' Key and 'Pg Up' Key by using fingertips. Refer to procedure '2).'
7.) Tighten the 6 screws using the plus(+) screwdriver. Refer to Refer to below
8.) Insert '1' Key, 'Left Shift' Key, 'F5' Key, '6' Key, '7' Key, 'H' Key, 'J' Key, 'N' Key, 'Back space' Key,
'Right Shift' Key and 'Pg Up' Key.
3 DRAFT (J

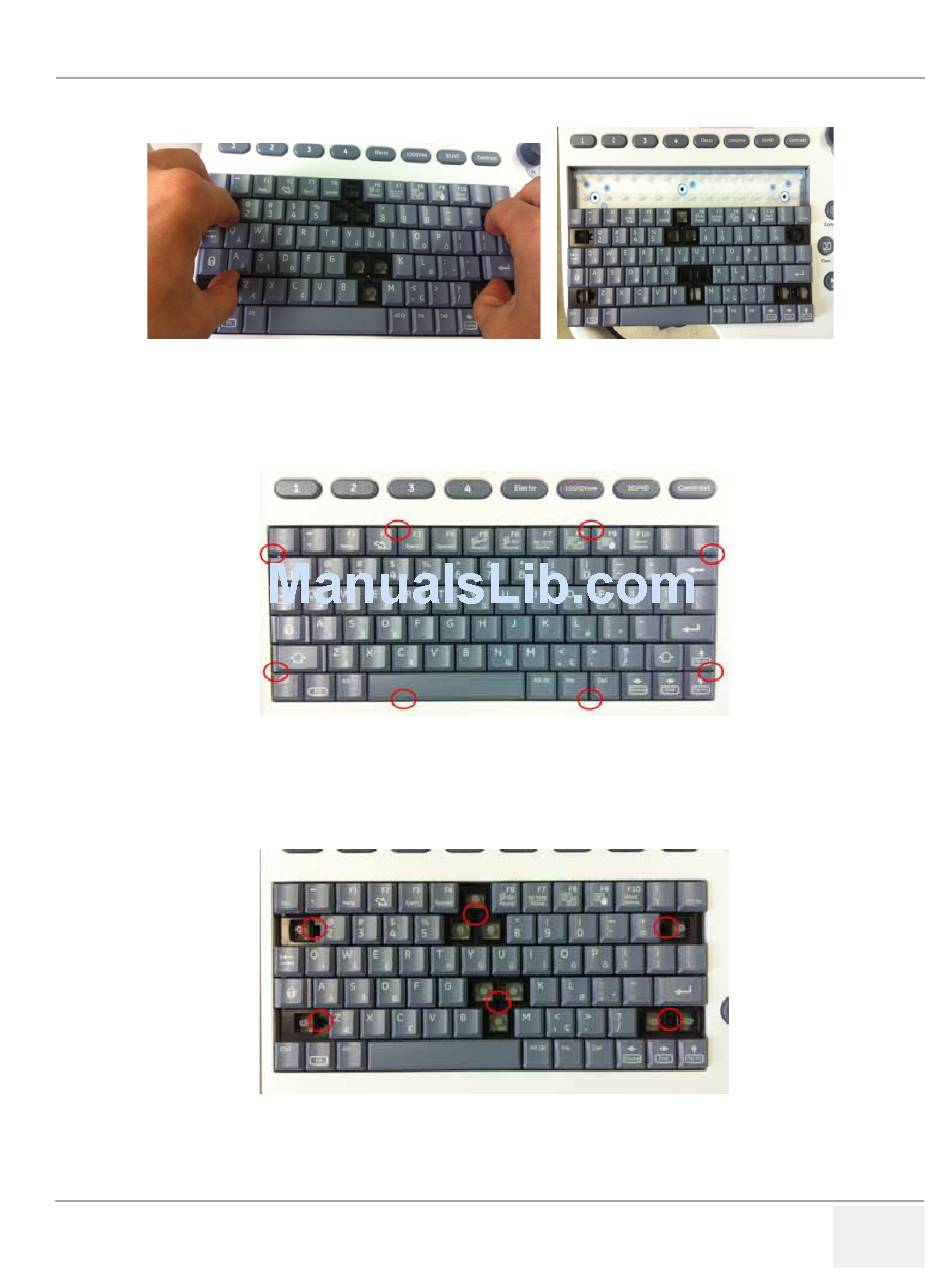

Figure 8-62 Pullout the AN key Top Assy
Figure 8-63 Push the AN key Top Assy
Figure 8-64 Tighten the 6 screws
