Section 8-19

Replacement of Rear Handle

8-19-1 Manpower
1 person, 10 min.
8-19-2 Tools
Hex Wrench.
8-19-3 Removal Procedure
1.) Remove Rear Cover.
2.) Remove 3 cap screws.
Rear Handle will not stay in position without screws. Make sure not to drop the part when
CAUTION
removing/installing Rear Handle
!! CAUTION:
8-19-4 Installation Procedure
1.) Parts to be installed in reverse order of removal.
8-19-5 Functional Check
Visual Check only.
8-88
3 DRAFT (J

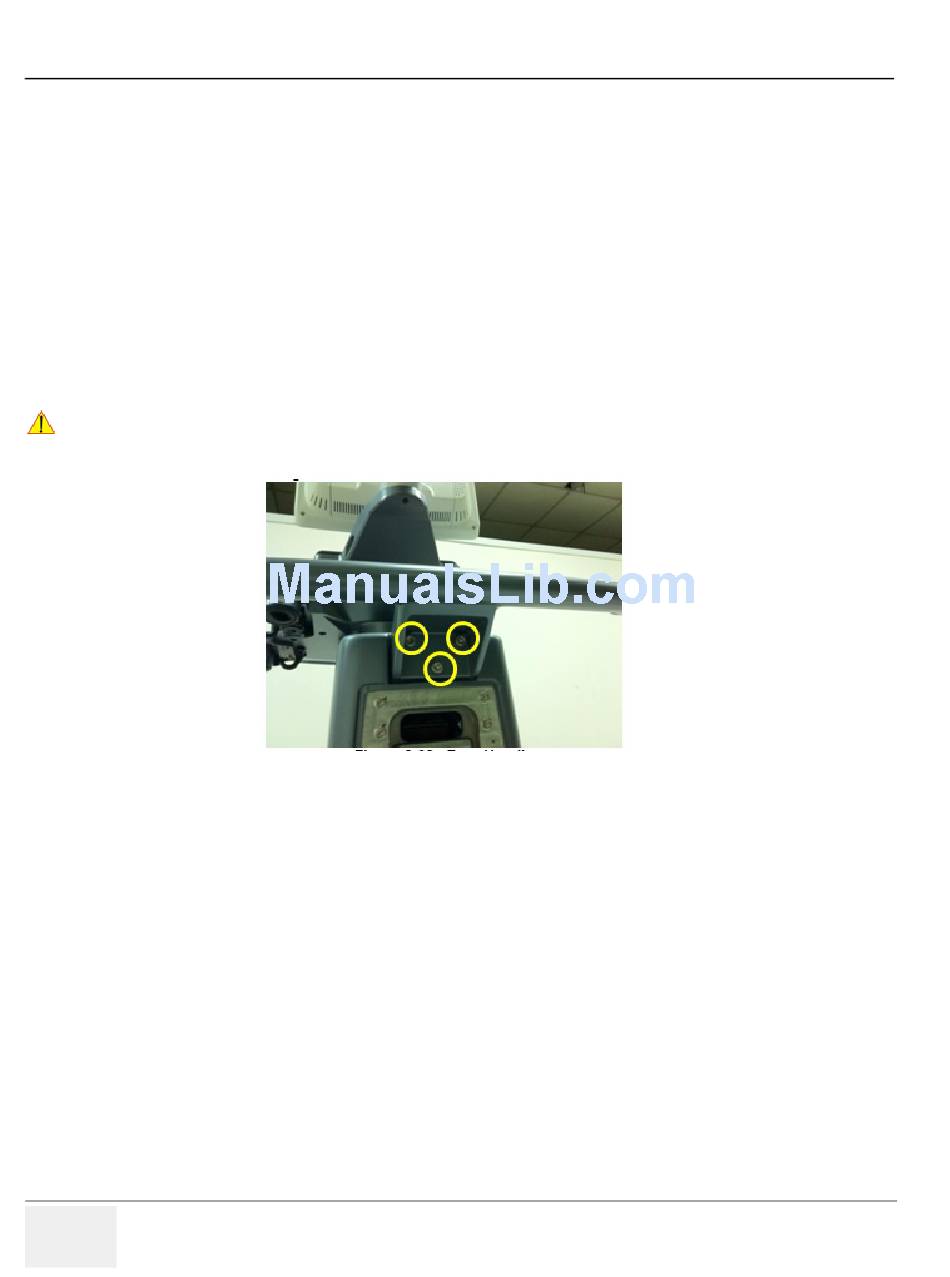

Figure 8-92 Rear Handle
