Section 8-16

Replacement around ACQ Box

NOTE: This section covers replacement of components related to ACQ Box - PIL assy, GBF128/64 Assy, GFS
Assy, SOM w/ 4GB Memory, HDD, CPS Assy, CBP Assy, CSI Assy, FAN w/ Cable Assy, DC4D Assy
and DVR Assy (for R1.x.x only)
8-16-1 Manpower
One person, 15 minutes for each parts.
8-16-2 Tools
Phillips screwdriver.
8-16-3 ACQ Box Access
1.) Remove Rear Cover.
2.) Remove Power Cord Fix Bracket.
3.) Remove Cable Cover Bracket.
8-70
3 DRAFT (J

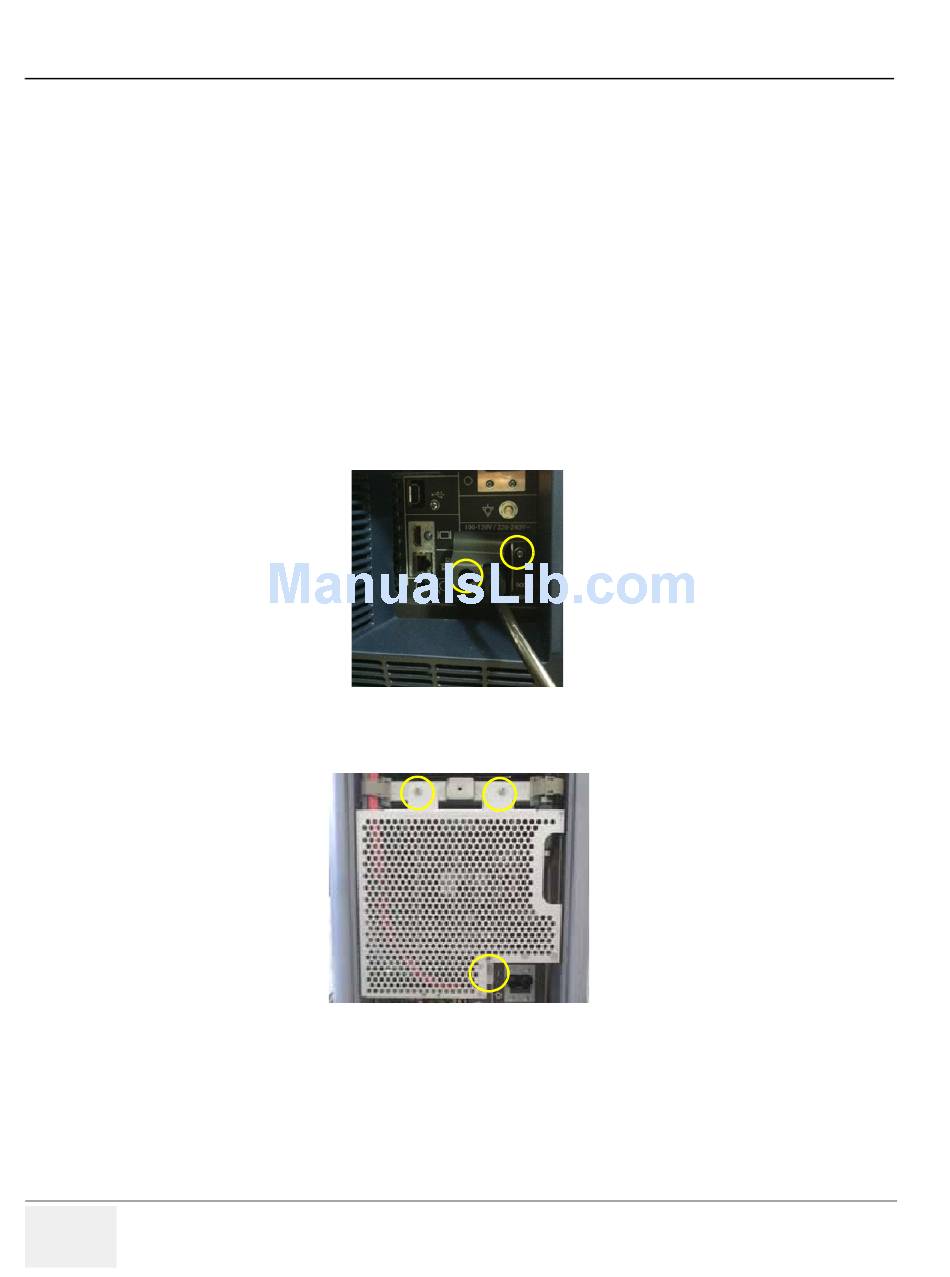

Figure 8-67 Power Card
Figure 8-68 Cable Cover Bracket
