b.) Color Correction: set Printer Hardware Color Correction1
c.) Lightness: Sharpness = 7; Dark = 0; Gamma = 14; Light = 0
d.) Lightness: Gamma Curve = Curve 1
4.) For saving the adjusted printer settings click APPLY and then OK.
Finally close the 'Printers'-window with the close button and exit System Setup with SAVE&EXIT.
3 DRAFT (J

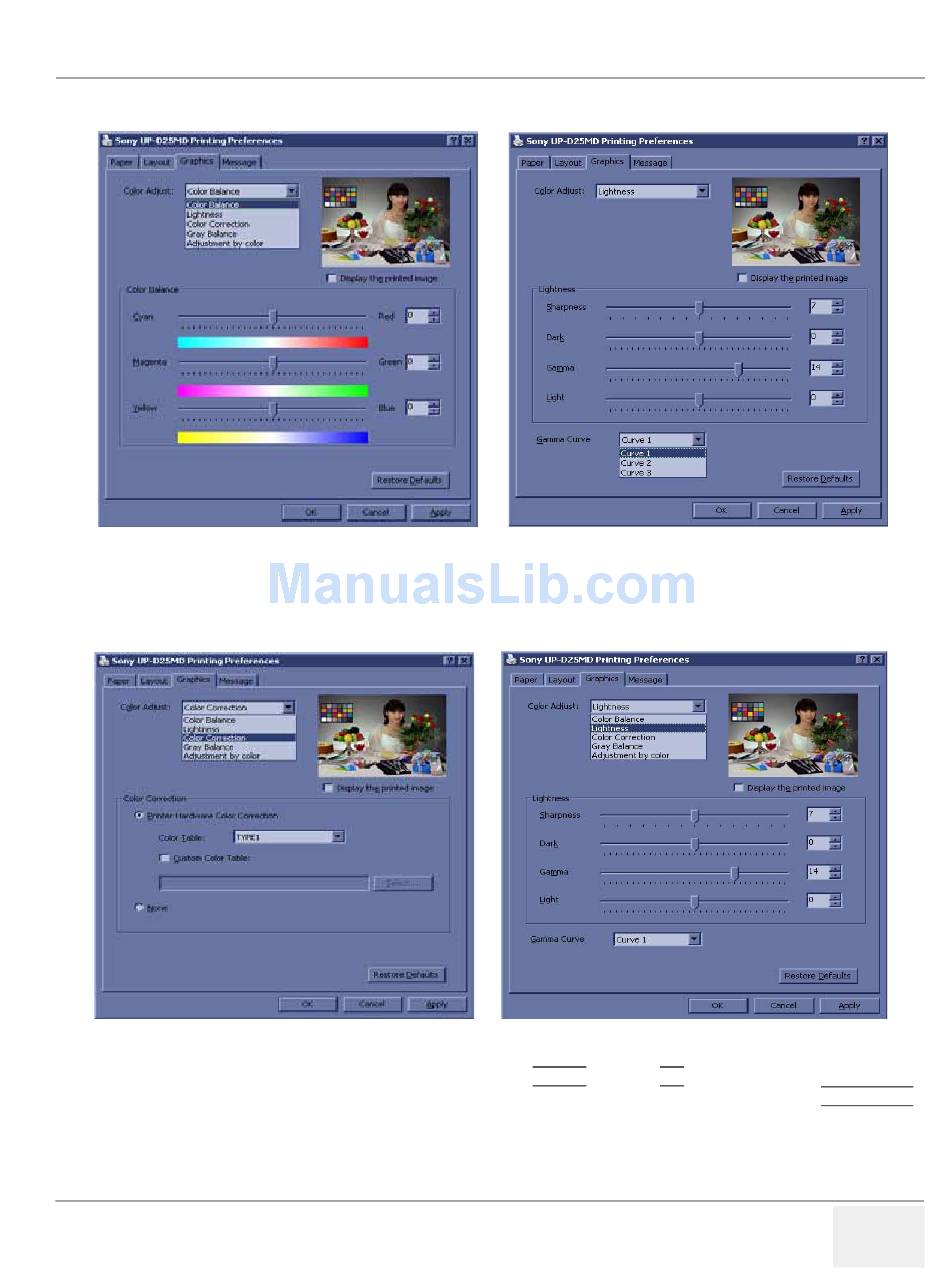

Figure 3-26 Graphics page (Color Balance + Color Correction)
Figure 3-27 Graphics age (Lightness + Gamma Select)
