Swivel/Brake Lock Caster

System weighs approximately 90kg. Pay attention for system stability when working with the
CAUTION
casters.
!! CAUTION:
NOTE: This procedure applies to casters other than RIGHT REAR Caster.
1.) Press 'a'. (see:
2.) Rotate wheel until it locks (several locations where caster engages).
3.) Verify Swivel Lock engages and Brake is ON.
4.) Press 'b'.(see:
5.) Verify wheel is free to move.
3 DRAFT (J
a

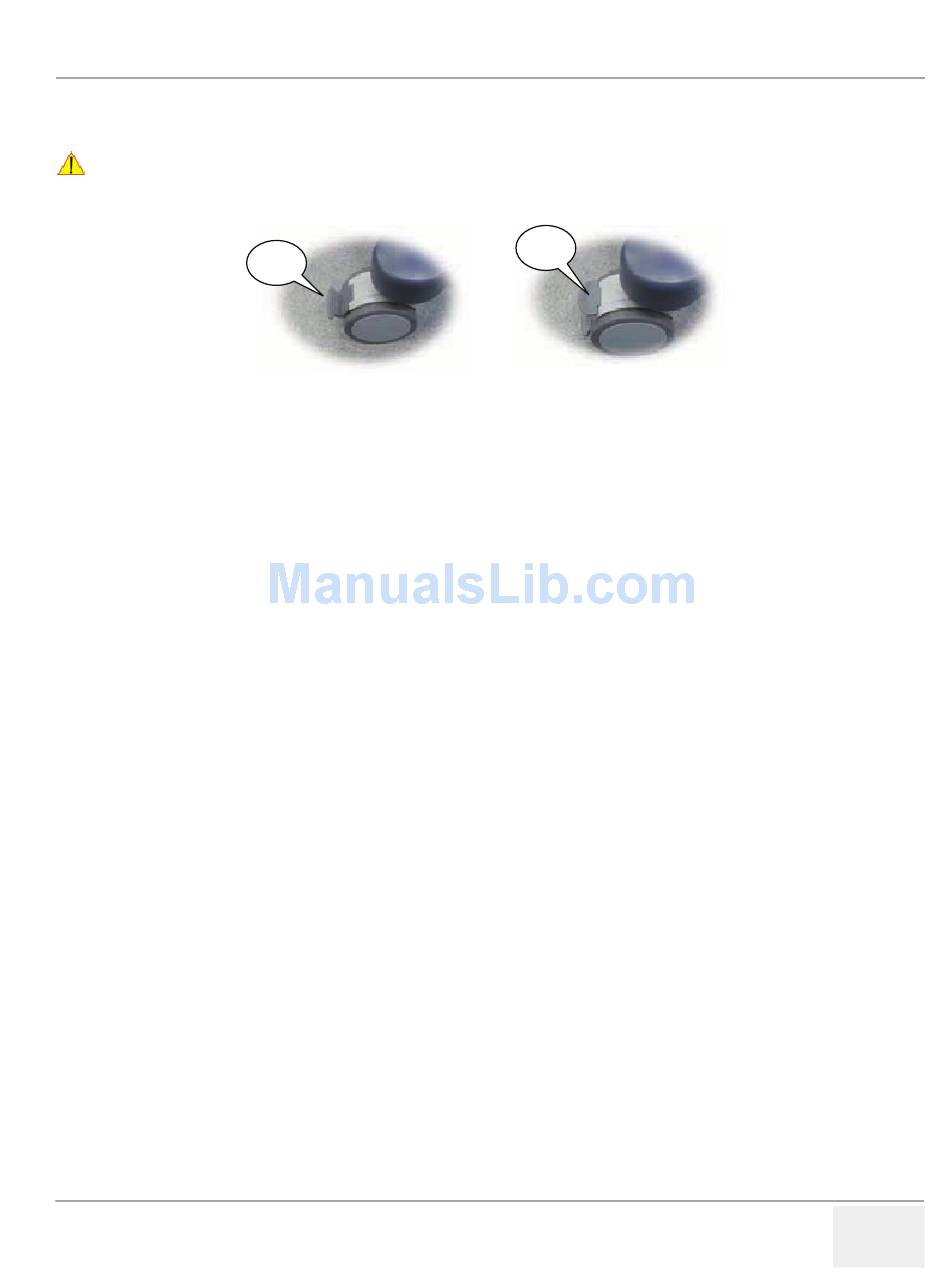

Figure 4-9 Total Lock Casters
Figure 4-9)
Figure 4-9).
