5.) After complete power down, disconnect the main power cable from the system or unplug it from the
AC wall outlet socket.
6.) Press on the brakes to block the front caster wheels.
7.) Disconnect probes. (Turn the probe locking handle counterclockwise and then pull the connector
straight out of the probe port.)
DO NOT disconnect a probe while running (Live Scan "Write" mode)!
CAUTION
A software error may occur. In this case switch the unit OFF (perform a reset).
!! CAUTION:
3 DRAFT (J

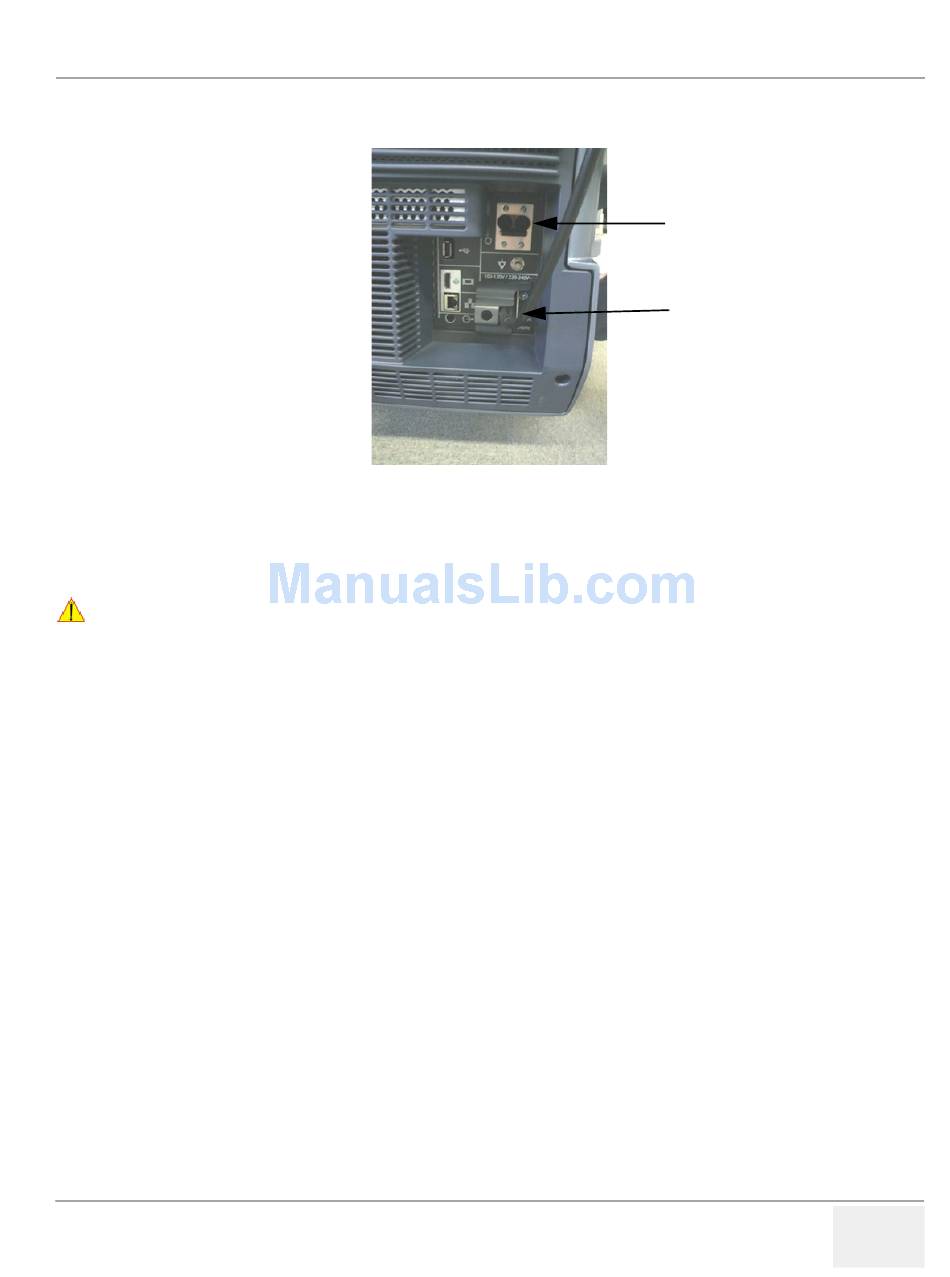

Figure 3-17 Circuit and main power at rear of system
Chapter 3 - Setup Instructions
25, 2014)
UNE
LOGIQ™ S7 E
XPERT
S
ERVICE
Circuit
Main Power
