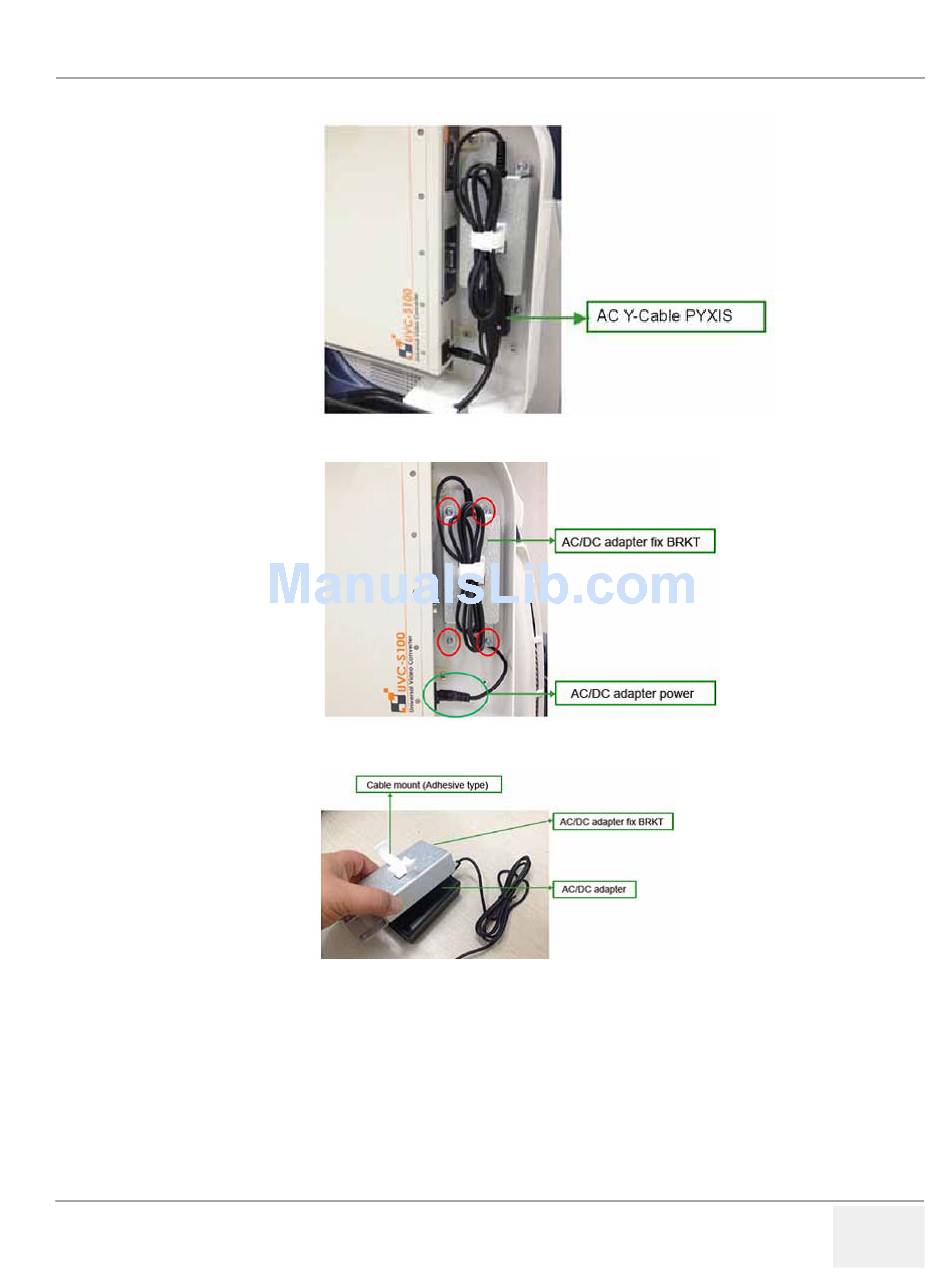

4.) Remove the AC Y-CABLE PYXIS power connector from adaptor.
5.) Remove the power connector from UVC module and remove the AC/DC adaptor FIX bracket
6.) Remove AC/DC adaptor from cable mount and remove the AC/DC adaptor FIX BRKT and AC/
3
DRAFT (J
with 4 screws.
DC adaptor.
Chapter 8 - Replacement Procedures
25, 2014)
UNE
LOGIQ™ S7 E
/P
XPERT
RO
S
M
ERVICE
ANUAL
8-141
