OSD

6-3-3-1

Language

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the OSD -> LANGUAGE by pressing the < LEFT or RIGHT > button to move the cursor and
the MENU (middle) key.
3.) Select English/German/French/Spanish/ Italian/Swedish/Chinese/Japanese by pressing the <
LEFT or RIGHT > button to decrease/increase the value and the MENU (middle) key.(Default :
English)
6-3-3-2

H-Position

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the OSD -> H-POSITION by pressing the < LEFT or RIGHT > button to decrease/increase
cursor and the MENU (middle) key.
3.) Adjust the H-POSITION by pressing the < LEFT or RIGHT > button to decrease/increase the
value.(default : 50)
6-3-3-3

V-Postion

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the OSD -> V-POSITION by pressing the < LEFT or RIGHT > button to decrease/increase
cursor and the MENU (middle) key.
3.) Adjust the V-POSITION by pressing the < LEFT or RIGHT > button to decrease/increase the
value.(default : 50)
6-3-3-4

Half Tone

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the OSD -> HALF TONE by pressing the < LEFT or RIGHT > button to decrease/increase
cursor and the MENU (middle) key.
3 DRAFT (J

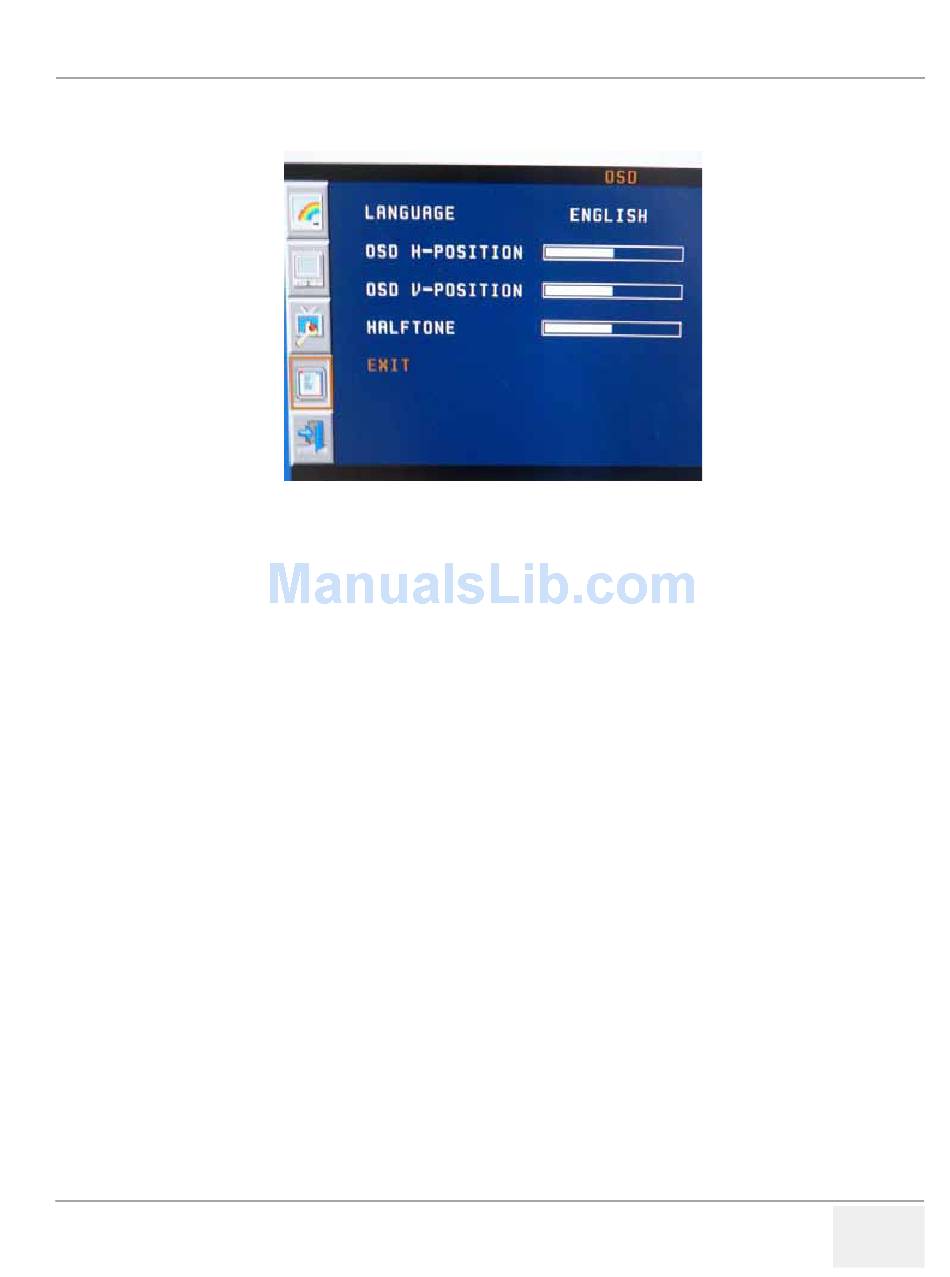

Figure 6-6 OSD
