6-3-2-3

Memory Recall

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> MEMORY RECALL by pressing the < LEFT or RIGHT > button to move
the cursor and the MENU (middle) key.
NOTE: MEMORY RECALL is Factory default. If selecting MEMORY RECALL, all settings will be back
to factory default status.
6-3-2-4

SBC

1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> SBC by pressing the < LEFT or RIGHT > button to move the cursor and
the MENU (middle) key.
3.) Select ON/OFF by pressing the < LEFT or RIGHT > button to decrease/increase the value and the
MENU (middle) key.(Default : ON)
6-6
3 DRAFT (J

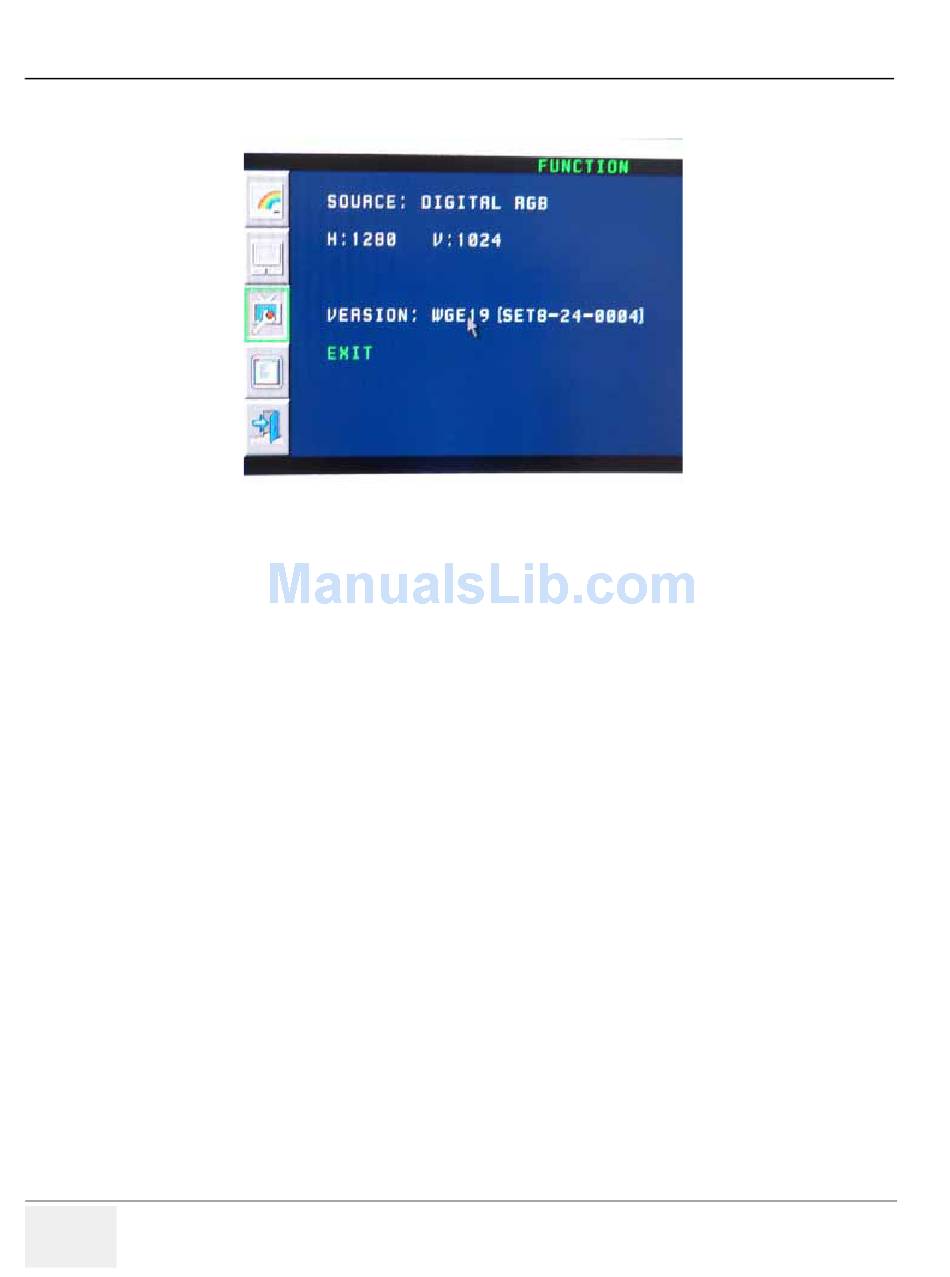

Figure 6-5 Information
Section 6-3 - LCD Monitor Adjustment
