Installation Procedure

8-16-5-1 Installation Procedure - PIL, GBF128/64, GFS/GFS-T6, CPS/CPS2
1.) Parts to be installed in reverse order of removal.

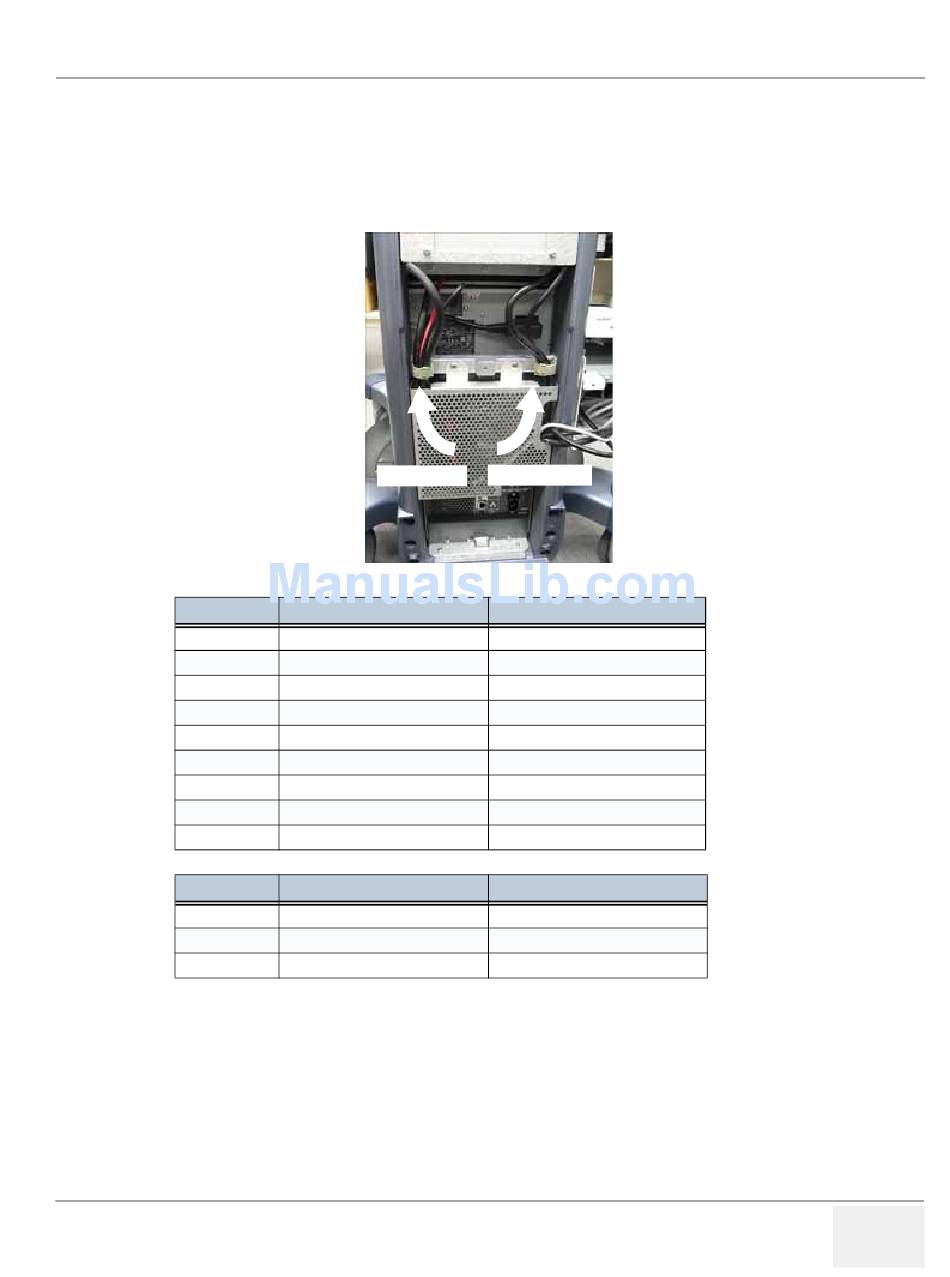

NOTE: Cables are designed to be routed as follows
(Signals)
LCD
OPIO
USB 2.0
SPK
DVD
USB
HDMI
RJ45 LAN Jack
Mini Jack
(Power)
DC Power
AC Outlet
AC Inlet
8-16-6 Functional Check - PIL, GBF128/64, GFS/GFS-T6, CPS/CPS2
Refer to Section 4-4 for Functional Diag Test List
3 DRAFT (J
Left Upper
Description
To main LCD
To OPIO power and signal
For Color/BW Printers, VNAV
Speaker
SATA Cable to DVD Unit
Customer Use
External Display
InSite Connection
External Speaker output
Description
x2 for DVD & VNAV
For peripheral
AC Inlet
