Drawer on High Cabinet

8-34-2-1 Manpower
1 person, 30 minutes
8-34-2-2 Tools
Philips screwdriver
8-34-2-3 Removal Procedure
1.) Pull out the cabinet.
2.) Draw the cabinet out of the frame Assy.
3 DRAFT (J

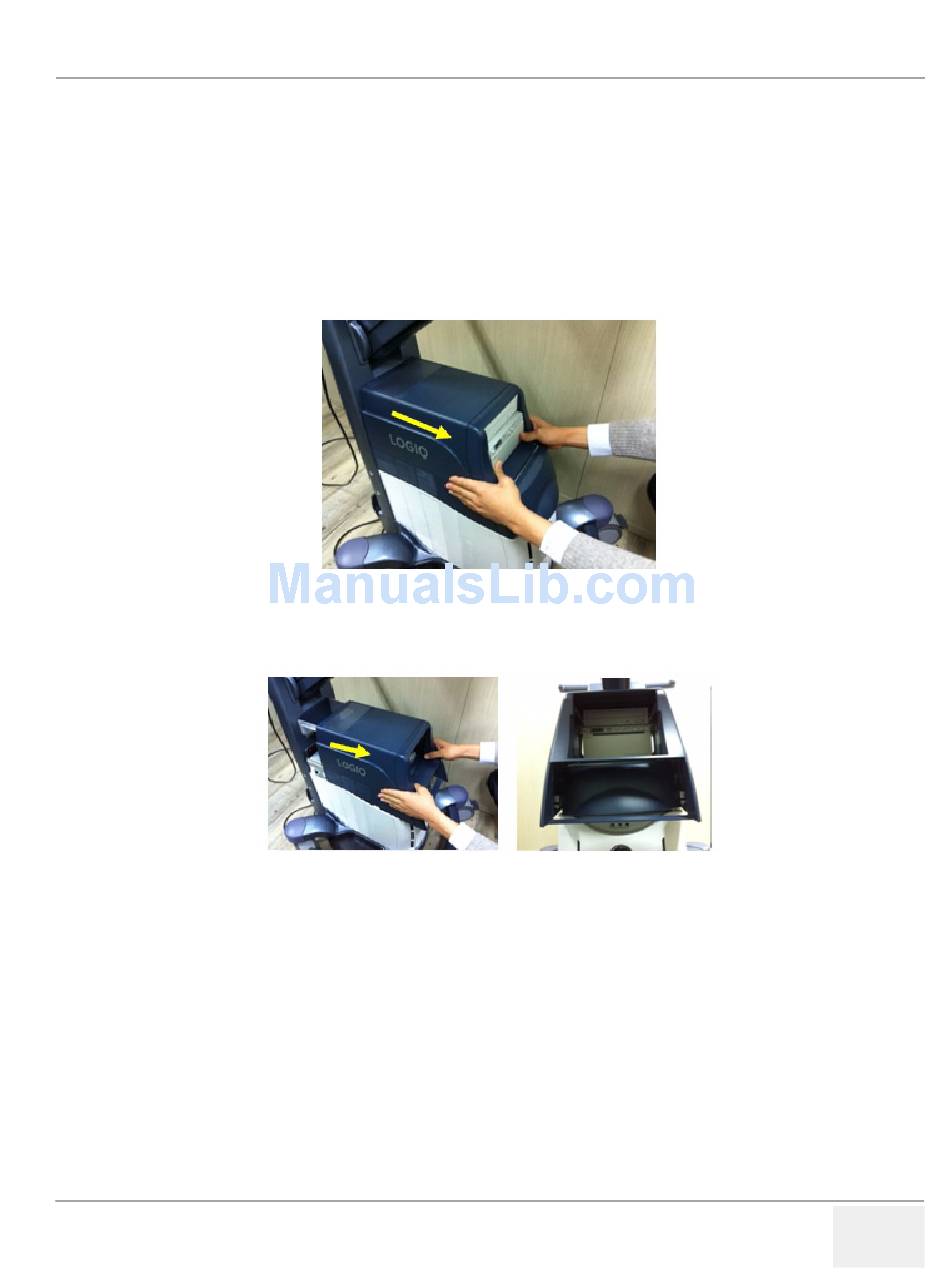

Figure 8-161 Remove the cabinet
Figure 8-162 Drawing out the High cabinet
