Available Probes

3-10-1

Supported probes

The LOGIQ S7 Expert/Pro supports the following types of probes:
• Sector Phased Array
• Convex Array
• Microconvex Array
• Linear Array
• Matrix Array
• Bi-plane Microconvex Arrays
• TEE Sector Array - LS7 R2 only
• Single CW (Pencil) Probes
• Volume Probes (4D)
NOTE: Not all probes described in this document may be available or cleared for sale in all markets.
3-10-1-1

Probe Naming Conventions

Table 3-18
Type
C=Convex
L=Linear
M=Matrix
S=Sector
3-10-1-2

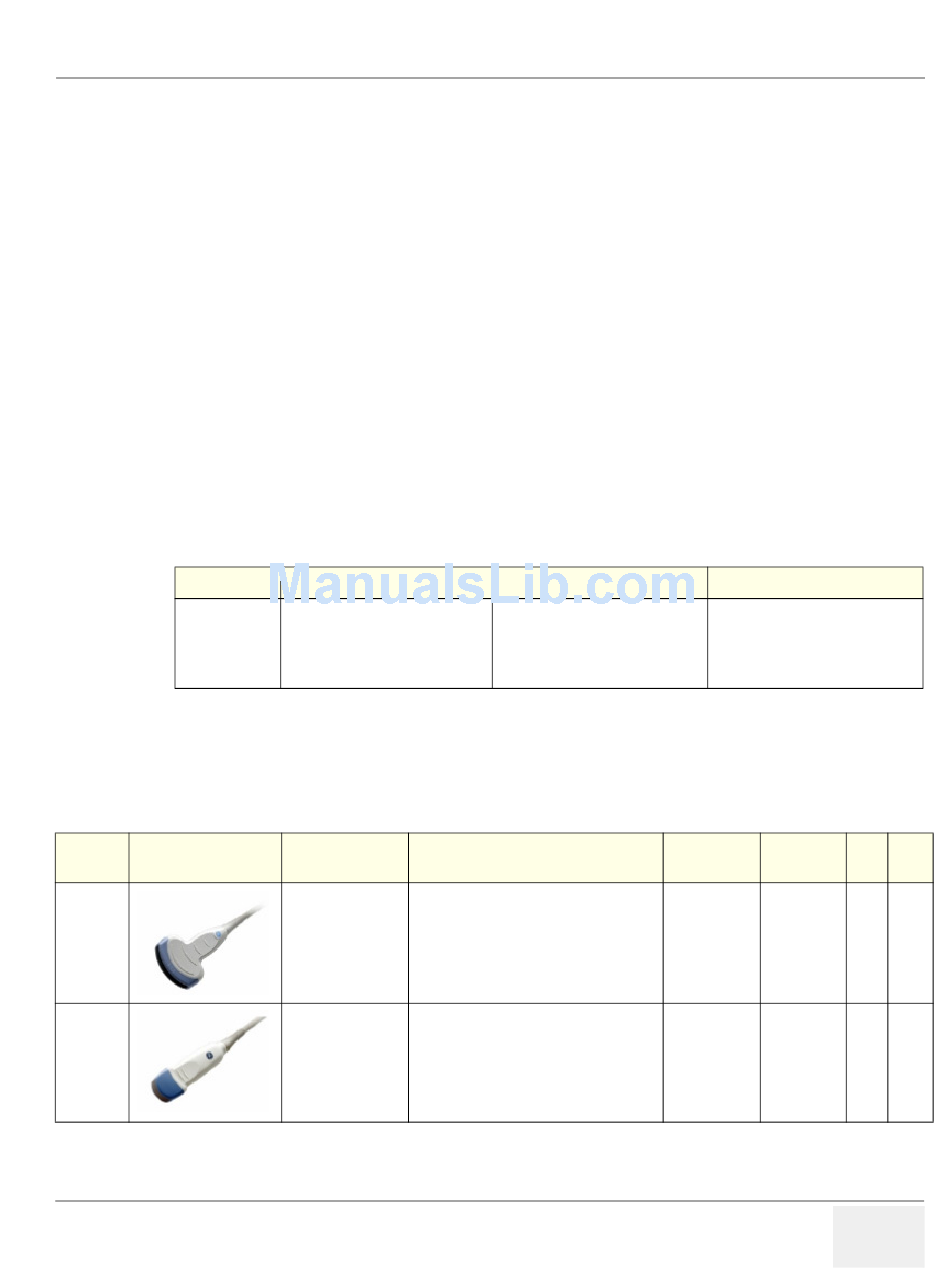

Probe Description

Table 3-19
Part
Name Illustration
C1-5-D
3CRF-D
3 DRAFT (J
Probe Naming Convention
Application
AB=Abdominal
IC=Intracavitary
NA=Neonatal
SP=Small Parts
Probe Description
Application
Abdomen,
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Vascular, OB/GYN,
Color, Contrast, Elastography,
Urology
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced 3D, Biopsy
Abdomen, OB/ B, CHI, CF, PDI, M, PW, CrossXBeam,
GYN, Urology LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, Biopsy
