Section 8-36

Replacement of UVC

8-36-1 UVC ASSY
8-36-1-1 Manpower
1 person, 1 hour
8-36-1-2 Tools
Standard Field Service Tool kit
8-36-1-3 Removal Procedure

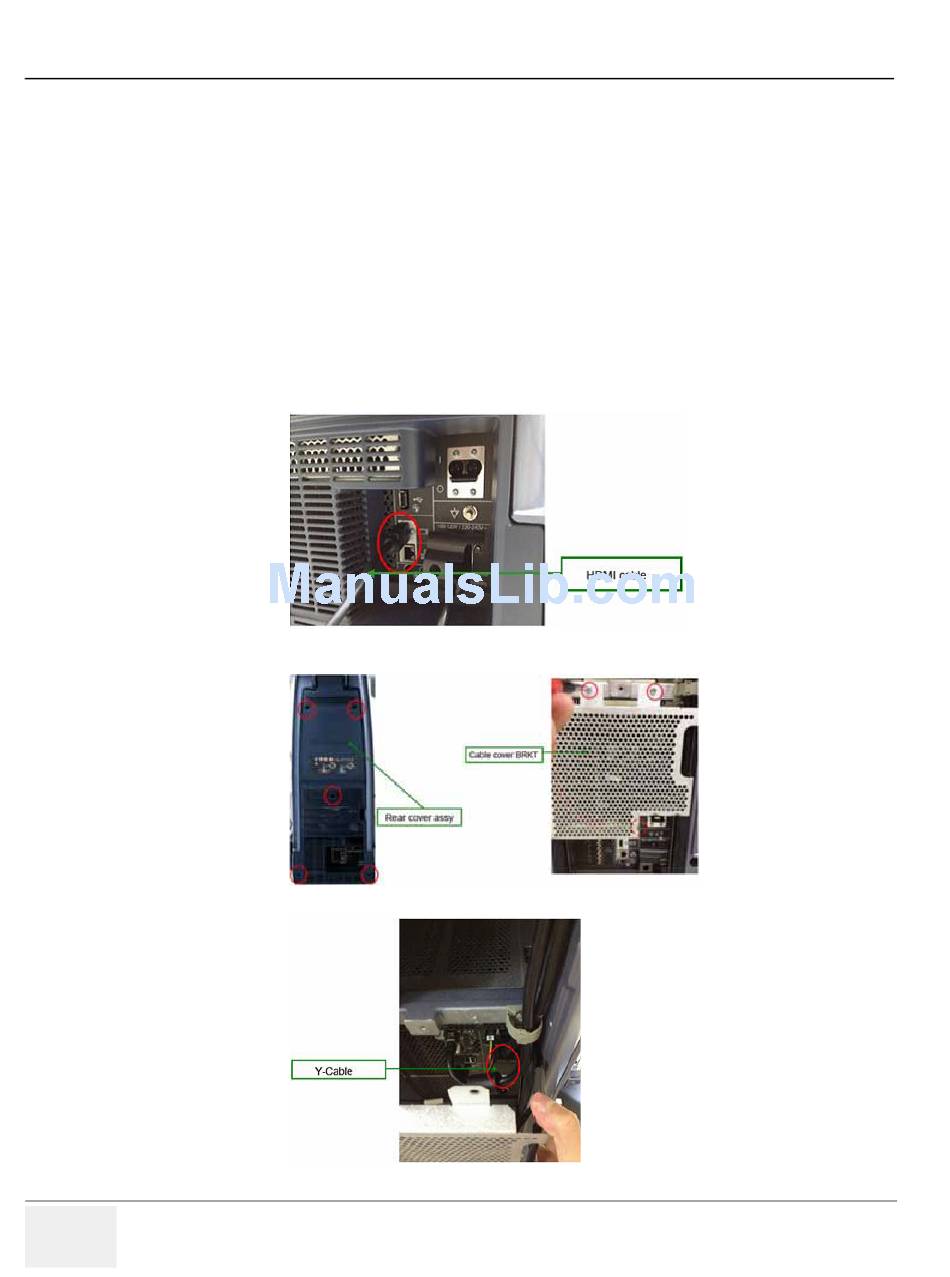

1.) Remove HDMI CABLE form console.
2.) Remove rear cover ASSY with 5 screws and remove cable cover BRKT with 3 screws.
3.) Remove the Y-Cable on the rear panel through the cable cover BRKT hole.
