Removal Procedure - ACQ Box

1.) Remove Front Cover.
2.) Remove 2 screws. Refer to the figure below.
3.) Get access to ACQ Box (Refer to Section 8-18-3 ACQ Box Access).
4.) Remove 2 cap screws on bottom of the ACQ Box.
5.) Pull out ACQ box from console.
8-80
3 DRAFT (J

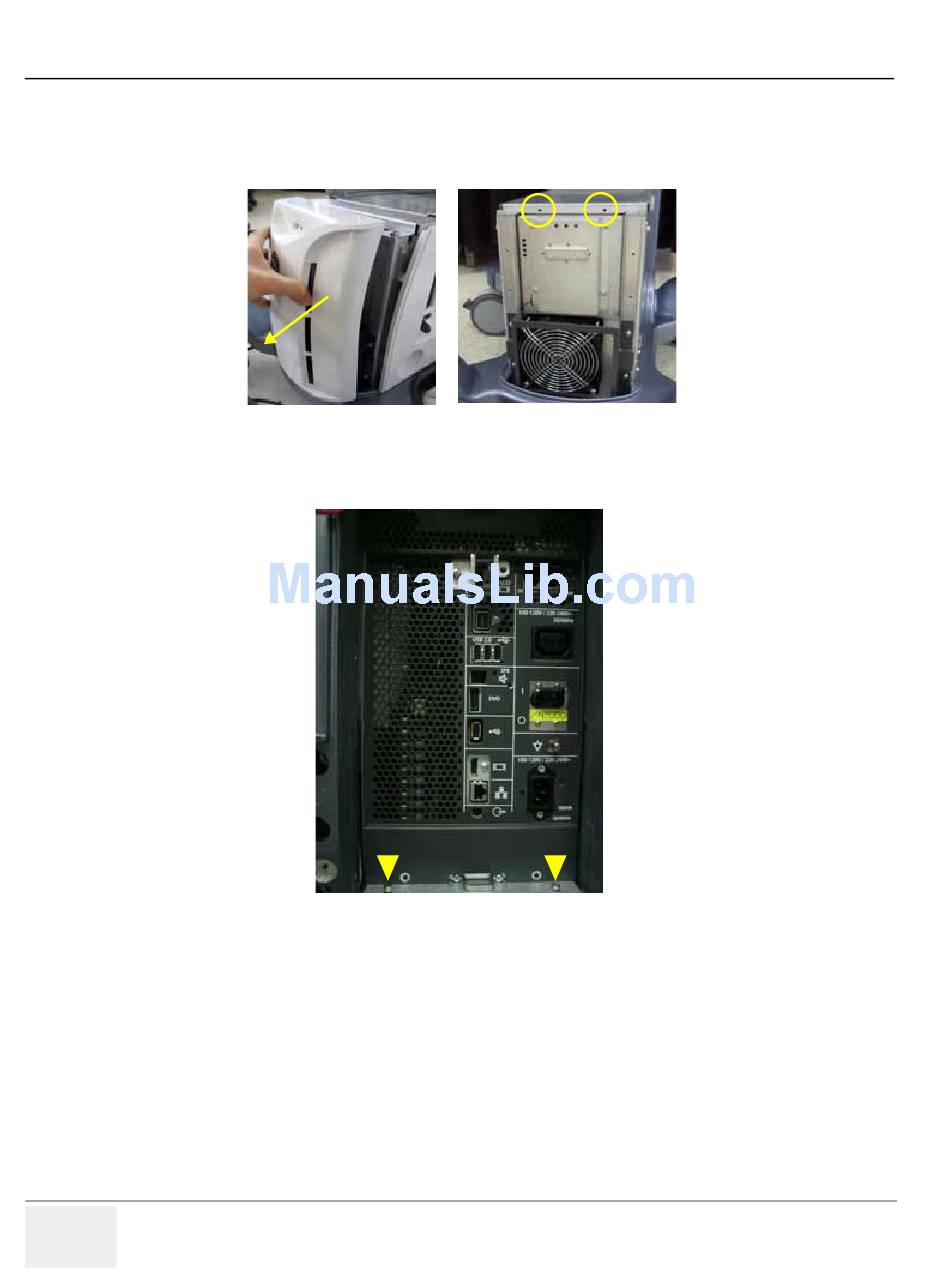

Figure 8-81 Removing the front cover
Figure 8-82 ACQ Box
Section 8-16 - Replacement around ACQ Box
