D 5460683, R
IRECTION EVISION
4.) Select Diagnostics -> OP Panel Interface
5.) Click the "Start" on OP Panel Interface page
6.) Select "Op-Panel Open"
7.) Verify OP Panel button operation is reflected on diag window.
3 DRAFT (J

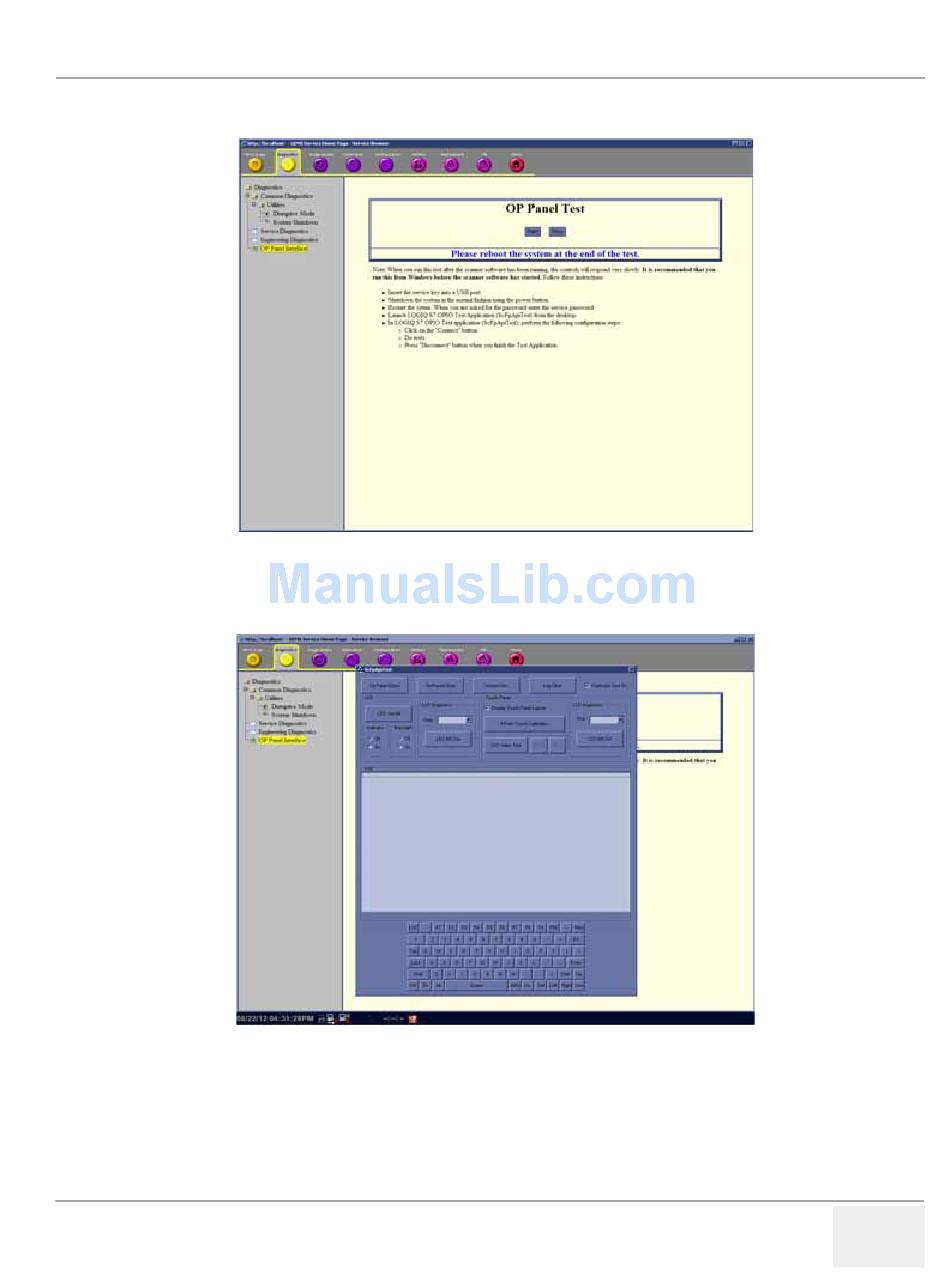

Figure 4-35 OP Panel Interface page screen
Figure 4-36 OP Panel Interface page screen
