Installation Procedure

1.) Cover to be installed in reverse order of removal.
2.) Make sure "latches" on both sides are engaged.
NOTE: For Mid and High Cabinet type, there is "Guide Rail" for installation.
Simply align "Cover Rail" on cover side to "Rail Guide" in chassis side.
8-7-5 Functional Check
Visual inspection only.
System Exterior Visual Check
8-40
3 DRAFT (J

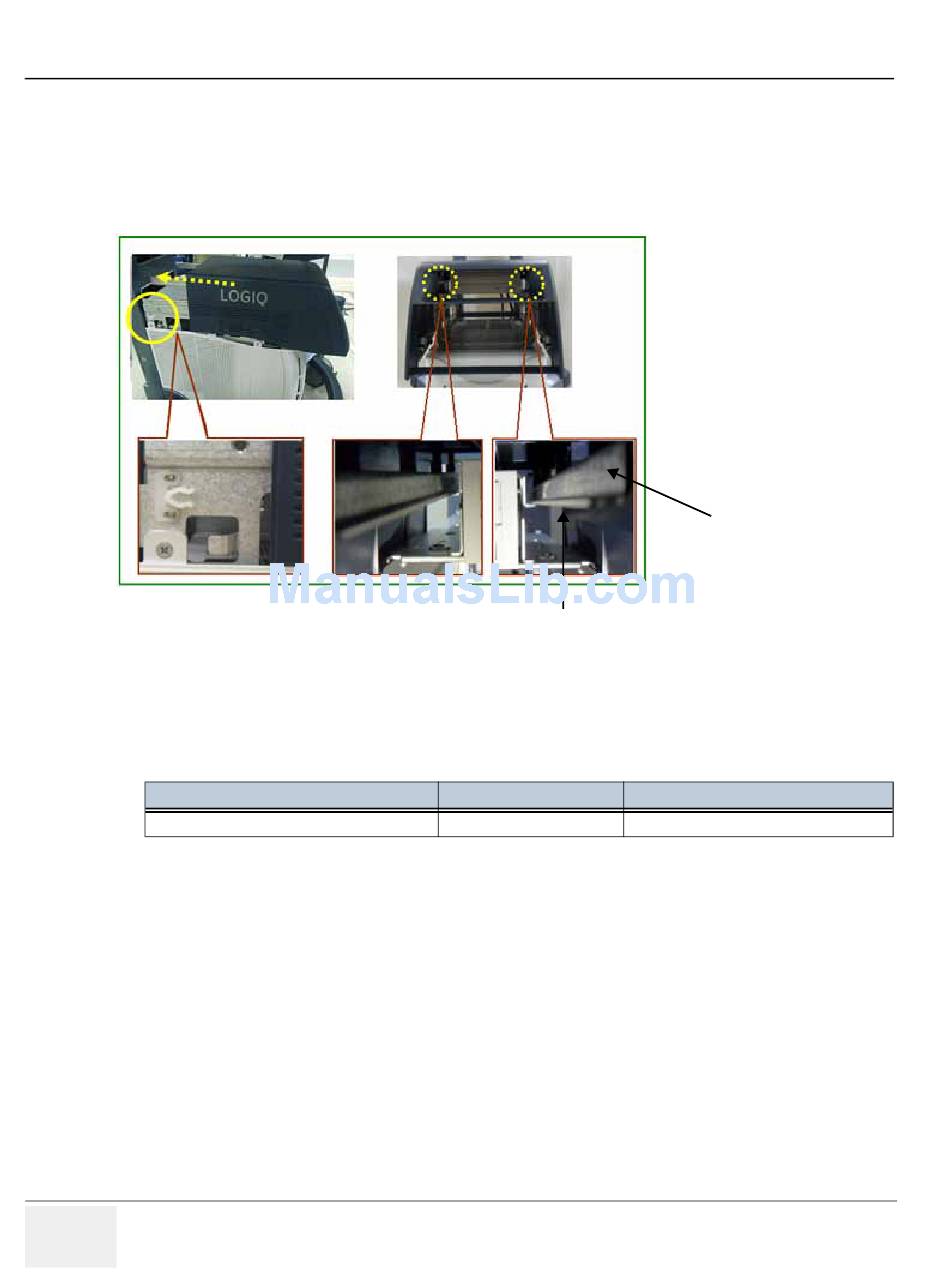

Figure 8-20 Cover Rail and Cover Guide
Test
Section 8-7 - Replacement Top Cover
25, 2014)
UNE
Rail Guide
Refer to
Section 4-3-1
