Replacement Front Cover

8-6-1 Manpower
1 person, 1 min.
8-6-2 Tools
None required.
8-6-3 Removal Procedure
1.) Simply pull out Front Cover.

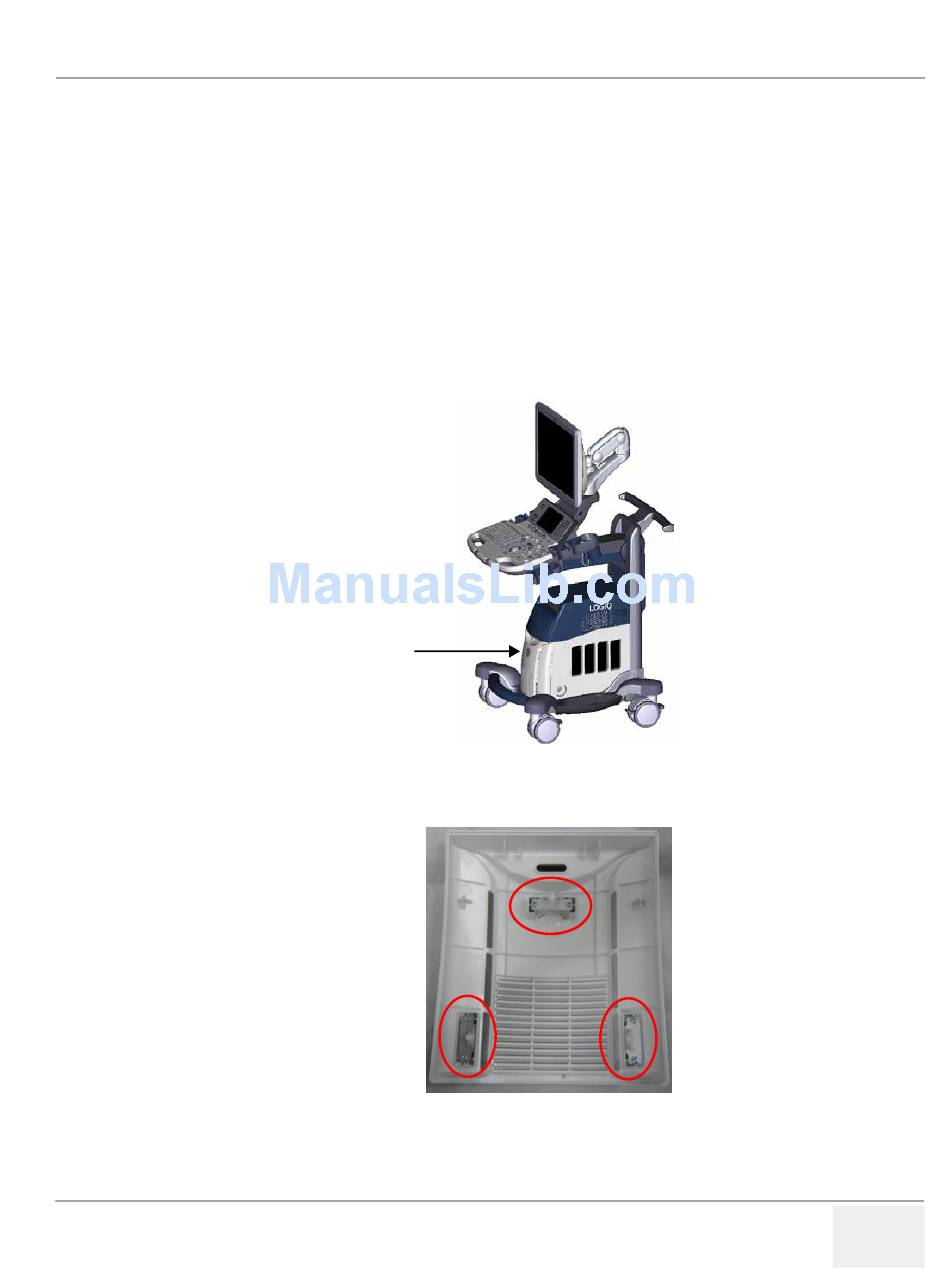

2.) Front cover is attached using three "latches" as shown below.
3 DRAFT (J
Front Cover
Figure 8-15 Front Cover
Figure 8-16 latches
