Gel Warmer Test

1.) Insert Gel Bottle into Gel Warmer.
2.) Power ON the warmer.
3.) Verify Gel gets warm.
NOTE: Depending on environment, Gel requres 30 minute or more to warm up.
4-3-6-7

Single CWD

1.) Connect P2D or P6D probe. Select cardiac application like "Adult". And start scan.
2.) Verify that CW timeline image appears.
4-3-7

Mode Transition Checks

4-3-7-1

General Information

4-3-7-2

B-Mode

1.) Press B Mode button.
2.) Verify that system scan with the activated probe.
3.) Verify probe name is displayed on upper right hand corner of main monitor (scan screen).
3 DRAFT (J
M

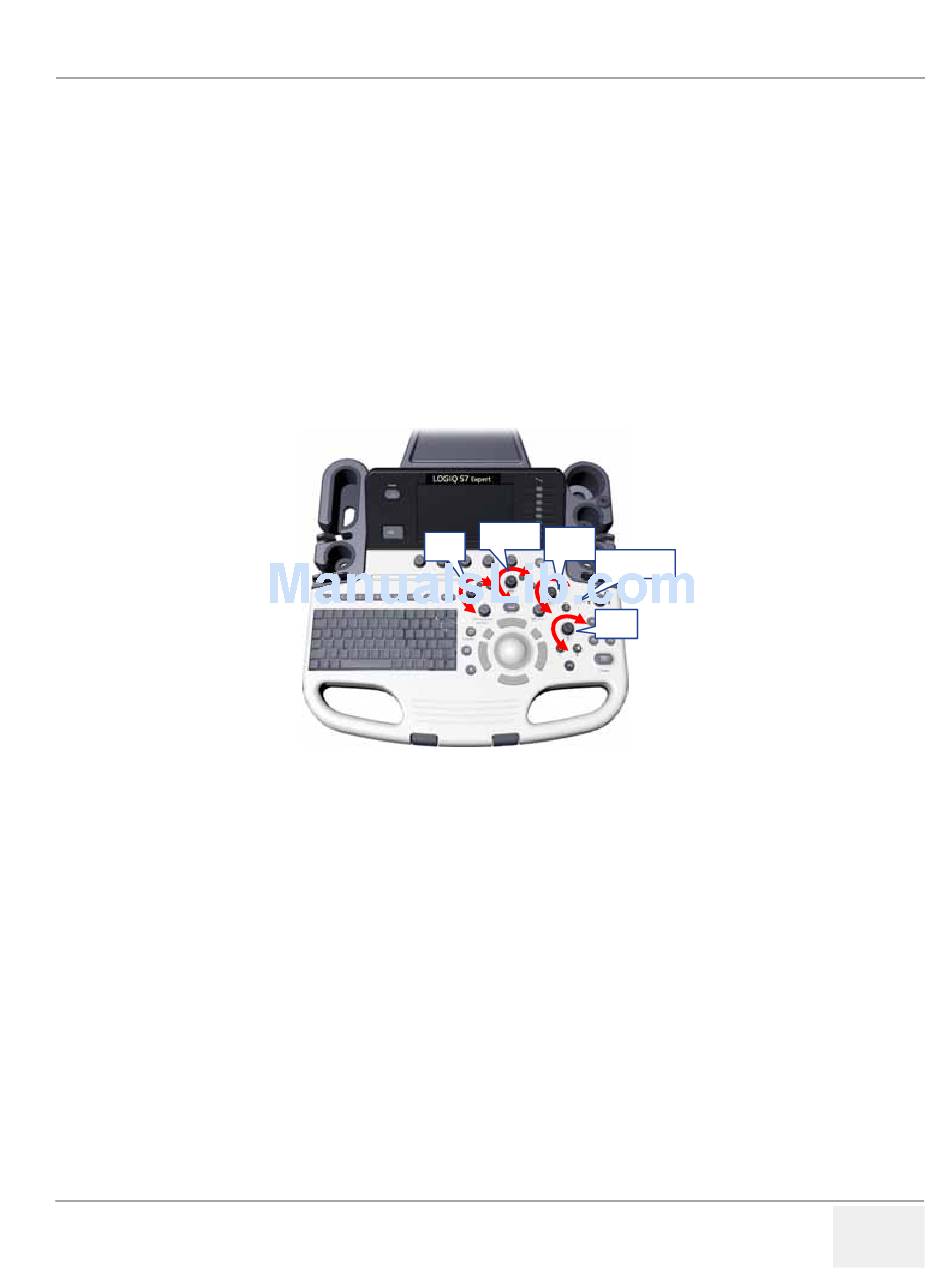

Figure 4-21
