M-Mode

1.) Press B Mode Button.
2.) Press M Mode Button.
3.) Verify that system scan B/M with the activated probe.
4-3-7-7 B-Flow Mode
NOTE: Make sure to select probe which supports B-flow
1.) From the touch panel, select Utility -> Imaging -> General.
2.) Change BF/BFC Button to "BF".
3.) Press B-Flow Button.
3 DRAFT (J

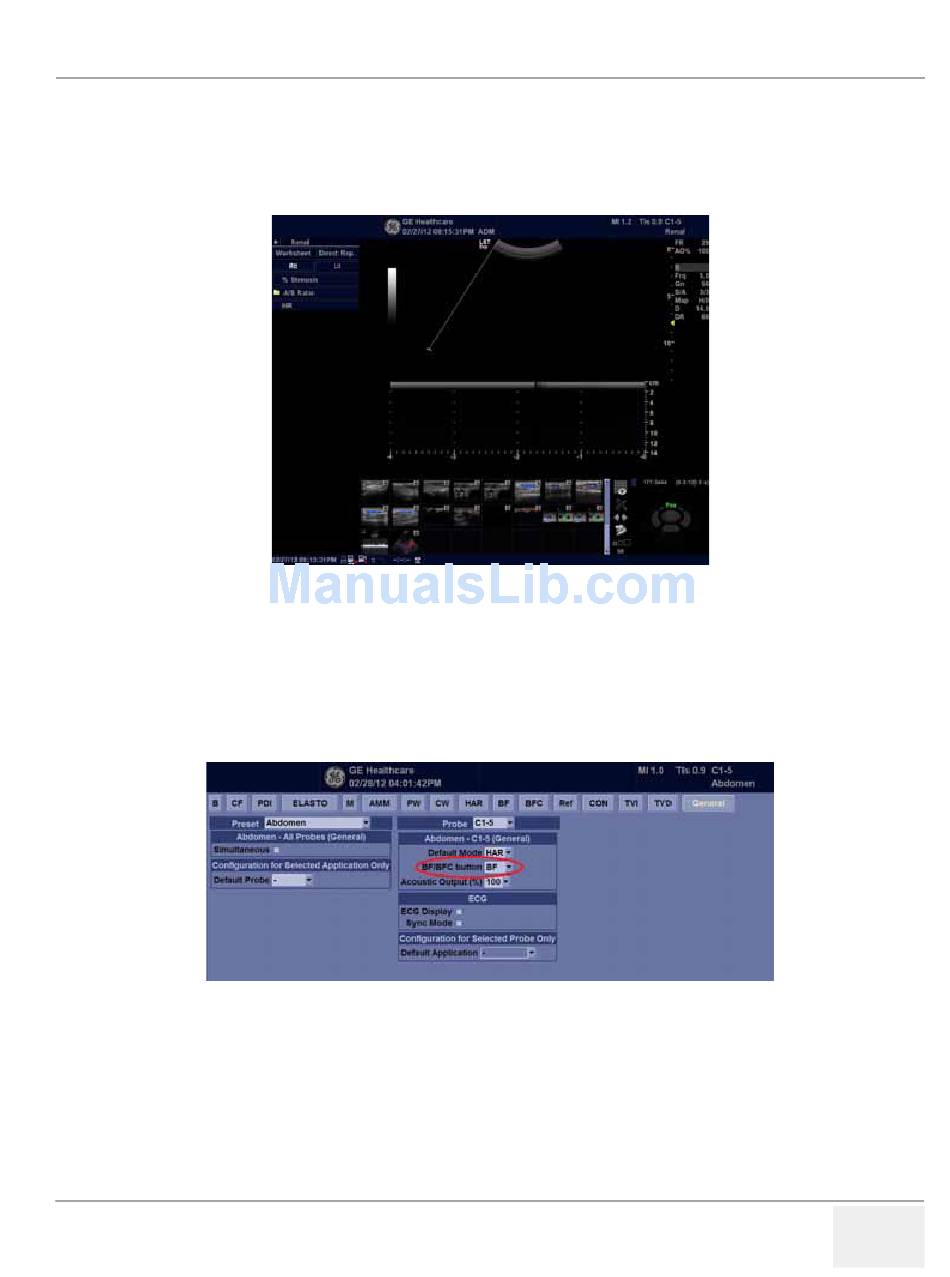

Figure 4-26 M-Mode
Figure 4-27 BF Setting
Chapter 4 - Functional Checks
