Removal Procedure - Separating CWD Board from PIL

Philips screw-driver required to add this part.
1.) Locate CW connector on PIL Board.
2.) Remove three screws from back of CW connector board.
8-16-4-3 Handling EEPROM on GFS Board
EEPROM on GFS board contains vital informations.
A.) System Serial Number that is matched against stored software option key.
B.) ComExpress Functional REV that is monitored for sub-system compatibility.
3 DRAFT (J
CWD

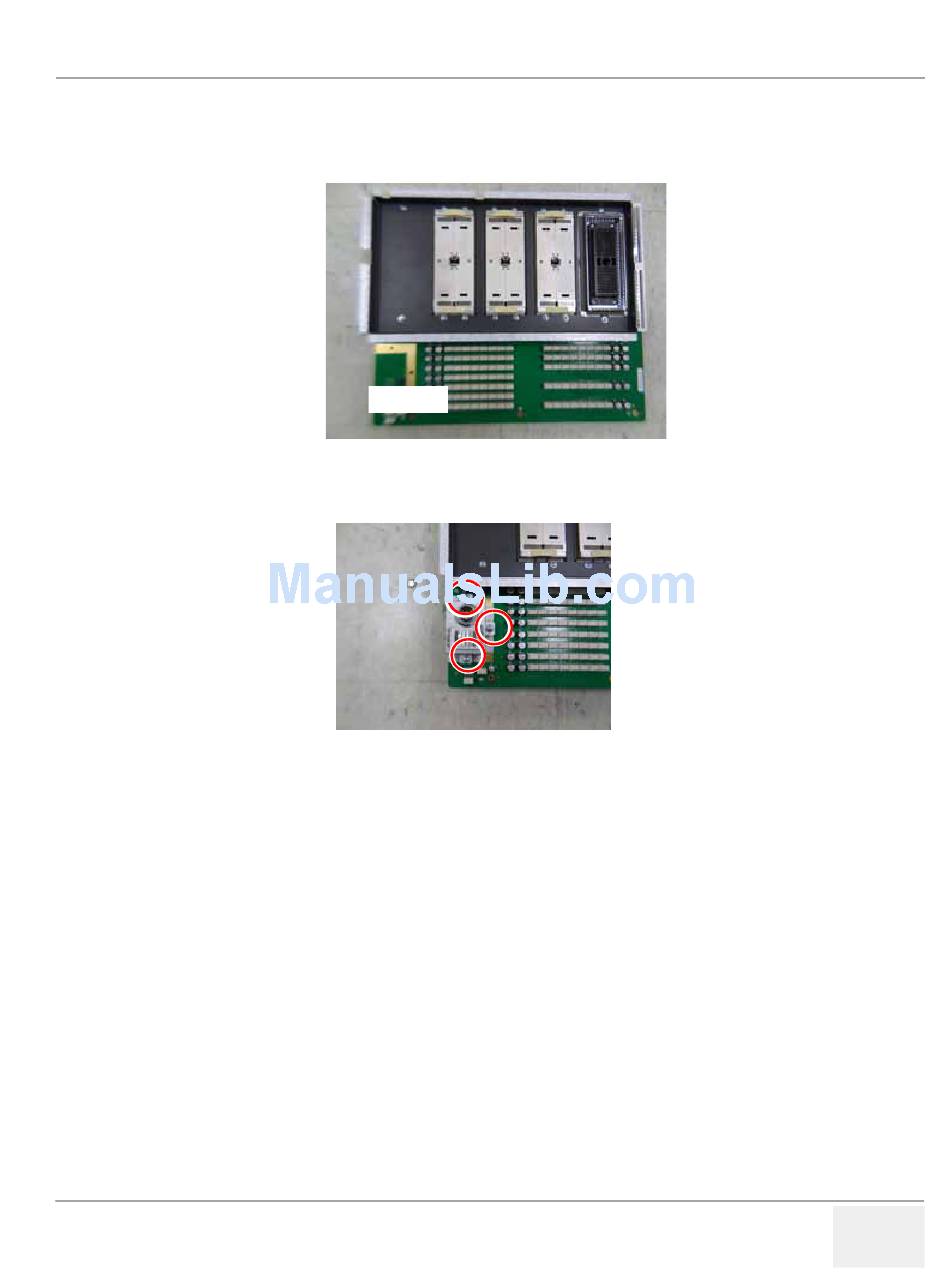

Figure 8-74 PIL Board
Figure 8-75 CW connector board
