Section 8-31

Replacement of the Monitor Arm

NOTE: Some of the photos resembles consoles other than LOGIQ™ S7 Expert/Pro, but Monitor Arm is
common part as Polaris Platform and therefore, service procedure is the same.
8-31-1 Manpower
One person, 5 minutes.
8-31-2 Tools
Phillips screwdriver, Nipper, Allen.
8-31-3 Removal Procedure
1.) Unscrew 1 screw, then remove the 3rd arm cover. Refer to the figure below.
2.) Remove the 2nd Axis Cover. Refer to the figure below.
8-130
3 DRAFT (J

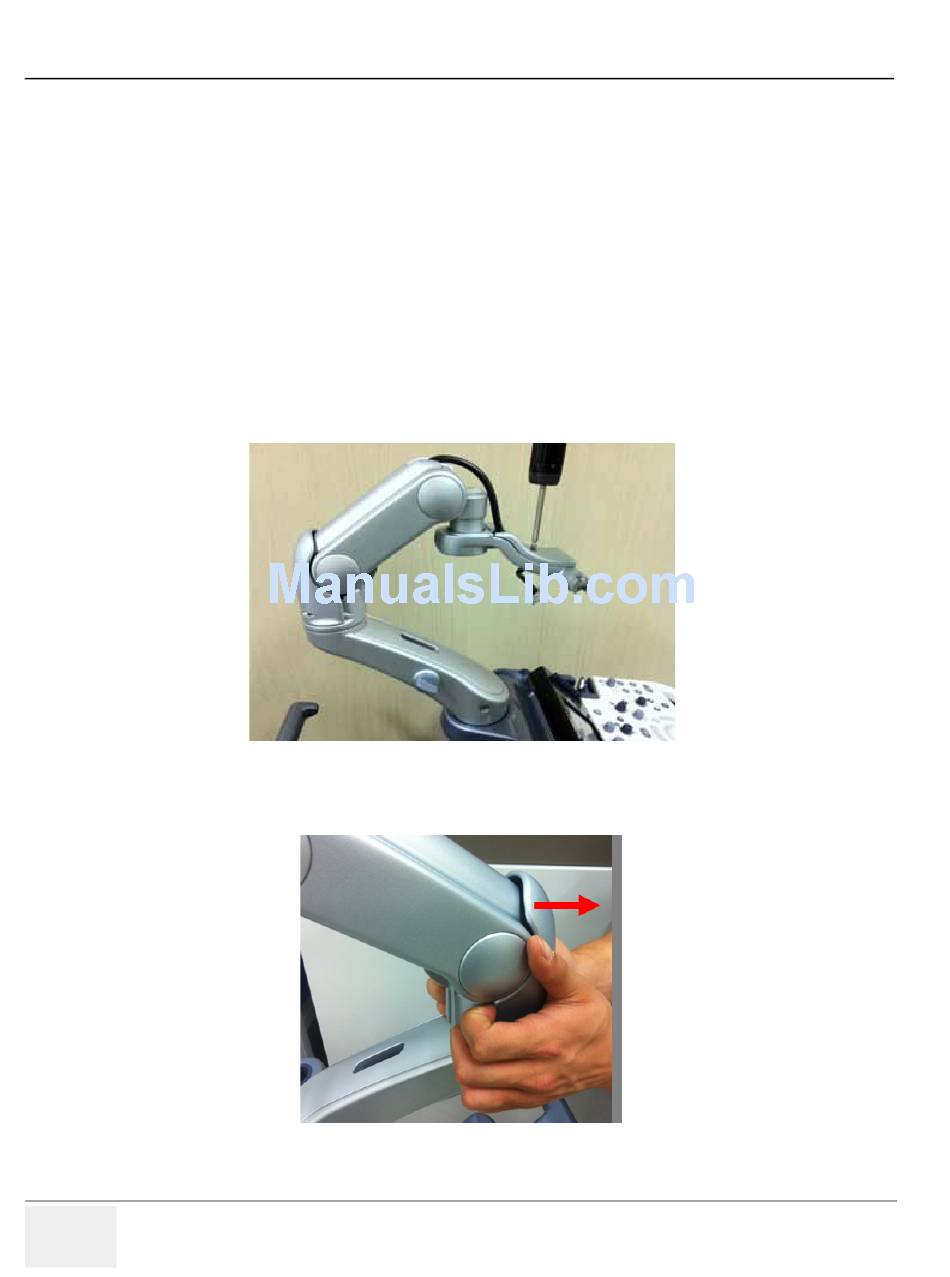

Figure 8-150 Removing the 3rd arm cover
Figure 8-151 Removing the 2nd Axis Cover
