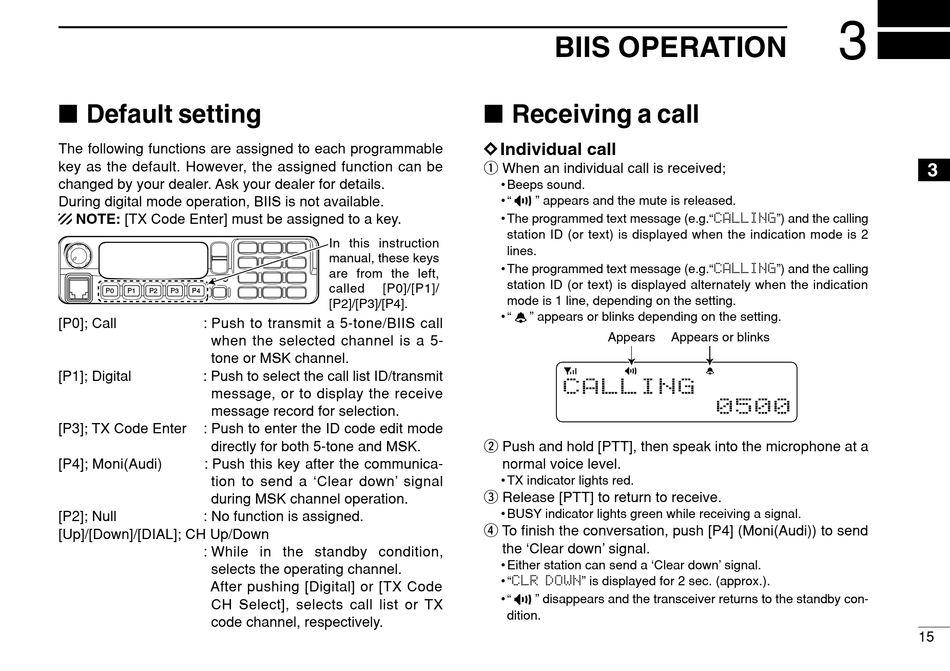

I Default setting

The following functions are assigned to each programmable
key as the default. However, the assigned function can be
changed by your dealer. Ask your dealer for details.
During digital mode operation, BIIS is not available.
NOTE: [TX Code Enter] must be assigned to a key.
P0 P1 P2 P3 P4
[P0]; Call : Push to transmit a 5-tone/BIIS call
when the selected channel is a 5-
tone or MSK channel.
[P1]; Digital : Push to select the call list ID/transmit
message, or to display the receive
message record for selection.
[P3]; TX Code Enter : Push to enter the ID code edit mode
directly for both 5-tone and MSK.
[P4]; Moni(Audi) : Push this key after the communica-
tion to send a 'Clear down' signal
during MSK channel operation.
[P2]; Null : No function is assigned.
[Up]/[Down]/[DIAL]; CH Up/Down
: While in the standby condition,
selects the operating channel.
After pushing [Digital] or [TX Code
CH Select], selects call list or TX
code channel, respectively.

I Receiving a call

D D Individual call
q When an individual call is received;
• Beeps sound.
• "
• The programmed text message (e.g."CALLING") and the calling
station ID (or text) is displayed when the indication mode is 2
In this instruction
lines.
manual, these keys
• The programmed text message (e.g."CALLING") and the calling
are from the left,
station ID (or text) is displayed alternately when the indication
called [P0]/[P1]/
mode is 1 line, depending on the setting.
[P2]/[P3]/[P4].
• "
w Push and hold [PTT], then speak into the microphone at a
normal voice level.
• TX indicator lights red.
e Release [PTT] to return to receive.
• BUSY indicator lights green while receiving a signal.
r To finish the conversation, push [P4] (Moni(Audi)) to send
the 'Clear down' signal.
• Either station can send a 'Clear down' signal.
• "CLR DOWN" is displayed for 2 sec. (approx.).
• "
dition.

BIIS OPERATION

" appears and the mute is released.
" appears or blinks depending on the setting.
Appears Appears or blinks
C A L L I N G
" disappears and the transceiver returns to the standby con-
3
