9

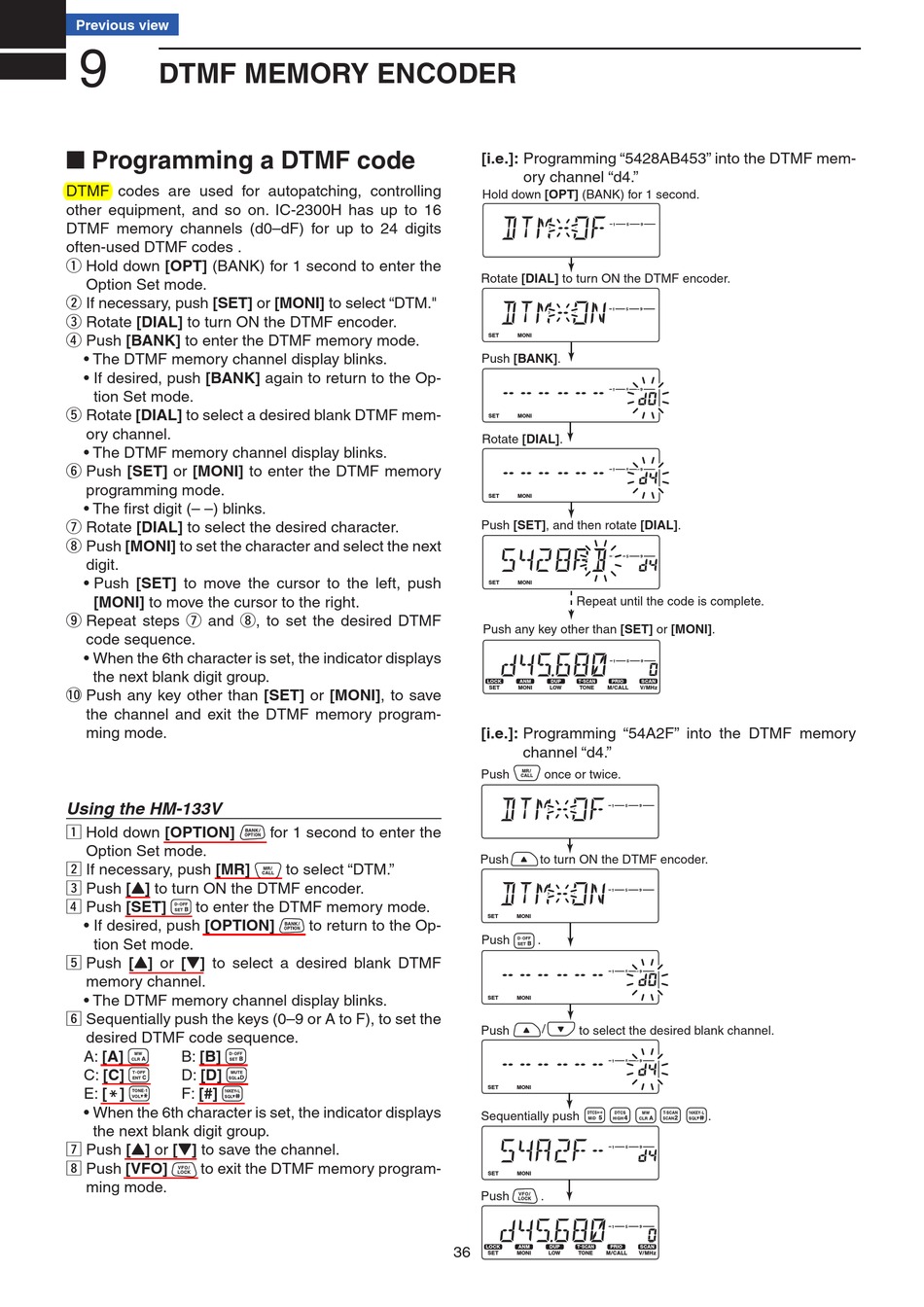

DTMF MEMORY ENCODER

■ Programming a DTMF code

DTMF codes are used for autopatching, controlling
other equipment, and so on. IC-2300H has up to 16
DTMF memory channels (d0–dF) for up to 24 digits
often-used DTMF codes .
q Hold down [OPT] (BANK) for 1 second to enter the
Option Set mode.
w If necessary, push [SET] or [MONI] to select "DTM."
e Rotate [DIAL] to turn ON the DTMF encoder.
r Push [BANK] to enter the DTMF memory mode.
• The DTMF memory channel display blinks.
• If desired, push [BANK] again to return to the Op-
tion Set mode.
t Rotate [DIAL] to select a desired blank DTMF mem-
ory channel.
• The DTMF memory channel display blinks.
y Push [SET] or [MONI] to enter the DTMF memory
programming mode.
• The fi rst digit (– –) blinks.
u Rotate [DIAL] to select the desired character.
i Push [MONI] to set the character and select the next
digit.
• Push [SET] to move the cursor to the left, push
[MONI] to move the cursor to the right.
o Repeat steps u and i, to set the desired DTMF
code sequence.
• When the 6th character is set, the indicator displays
the next blank digit group.
!0 Push any key other than [SET] or [MONI], to save
the channel and exit the DTMF memory program-
ming mode.
Using the HM-133V
z Hold down [OPTION]
Option Set mode.
x If necessary, push [MR]
c Push [Y] to turn ON the DTMF encoder.
v Push [SET]
to enter the DTMF memory mode.
• If desired, push [OPTION]
tion Set mode.
b Push [Y] or [Z] to select a desired blank DTMF
memory channel.
• The DTMF memory channel display blinks.
n Sequentially push the keys (0–9 or A to F), to set the
desired DTMF code sequence.
A: [A] B: [B]
C: [C] D: [D]
E: [M] F: [#]
• When the 6th character is set, the indicator displays
the next blank digit group.
m Push [Y] or [Z] to save the channel.
, Push [VFO]
to exit the DTMF memory program-
ming mode.
for 1 second to enter the
to select "DTM."
to return to the Op-
[i.e.]: Programming "5428AB453" into the DTMF mem-
ory channel "d4."
Hold down [OPT] (BANK) for 1 second.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Rotate [DIAL] to turn ON the DTMF encoder.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Push [BANK].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Rotate [DIAL].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Push [SET], and then rotate [DIAL].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Repeat until the code is complete.
Push any key other than [SET] or [MONI].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
[i.e.]: Programming "54A2F" into the DTMF memory
channel "d4."
Push once or twice.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Push to turn ON the DTMF encoder.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Push .
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
/
Push to select the desired blank channel.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Sequentially push
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL
Push .
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
36
S ET MONI LOW TONE M/CALL
